Champ CHAMP 25-105 13AI517N679 (2010) Engine hood 7-Style Listas de piezas de repuesto y dibujos

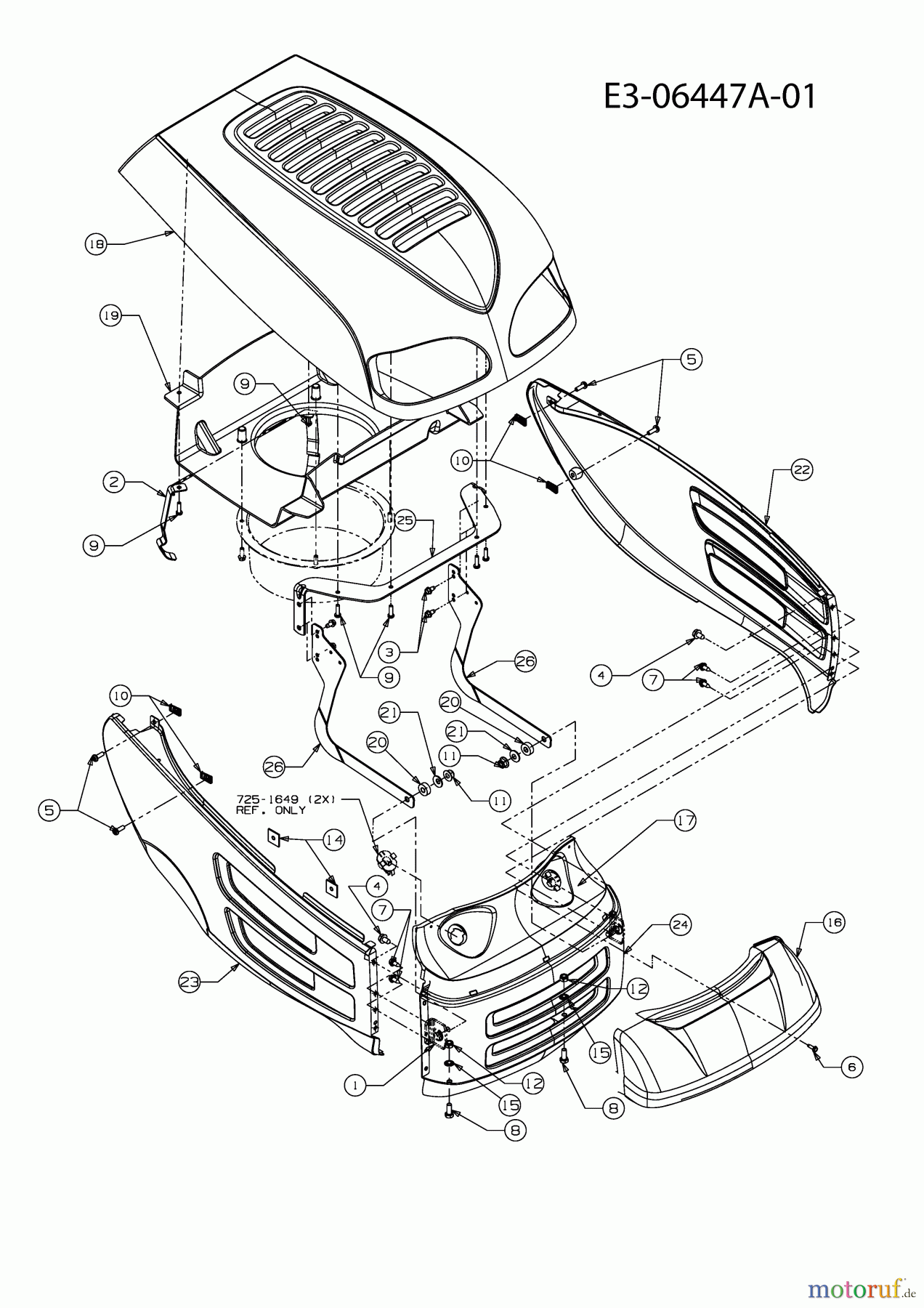

Engine hood 7-Style 13AI517N679 (2010)

Champ Lawn tractors CHAMP 25-105 13AI517N679 (2010) Engine hood 7-Style
PosNúmero de artículoDescripción
1 683-0195-ZBRKT ASM:8 STY:TO BE ZINCED
2 683-04012BRKT ASM:LATCH HOOD 7 STYLE
3 Champ SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
4 Champ SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
5 Champ SCR:MACH:1/4-20:0.750 PANPHI710-0924SCR:MACH:1/4-20:0.750 PANPHI
6 710-1237HEXSCREW:T:10-32:.625:HXINDWSH
7 Champ SCR:TT:1/4-20 x.625:HXINDWH710-1652SCR:TT:1/4-20 x.625:HXINDWH
8 710-1681HHCS:M8-1.25:20.00:GR8.8:STD
9 Champ SCR:TORX:M6x20 WN 1452710-1704SCR:TORX:M6x20 WN 1452
10 Champ NUT:TINN:1/4-20712-0292NUT:TINN:1/4-20
11 Champ NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
12 712-0692NUT:HEXLK:M8-1.25 NYLON DIN985
14 726-0359CLAMP:CABLE
15 726-0372NUT:SPD:7MM PUSH ON
16 Champ LENS:8 STYLE731-1854ALENS:8 STYLE
17 731-2140REFL:HDLT:8 STYLE
18 731-07850HD/GRLL:7 STYLE:WHITE
19 731-2306PLEN:HOOD:7 STYLE
20 735-0126AWASH:RUBR;.3850 ID x.87 x.325
21 Champ SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
22 783-0475CPNL:SD:LH 8 STY
23 783-0476DPNL:SD:RH 8 STY
24 783-0477AREWORK ON 783-0477A
25 783-1034BRKT:HOOD 7 STYLE
26 783-1495BRKT:HINGE:HOOD:7/8 STY LH/RH
