Toro 38000 (S-120) - S-120 Snowthrower, 1979 (9000001-9999999) LOWER MAIN FRAME ASSEMBLY Listas de piezas de repuesto y dibujos

LOWER MAIN FRAME ASSEMBLY 38000 (S-120) - Toro S-120 Snowthrower, 1979 (9000001-9999999)

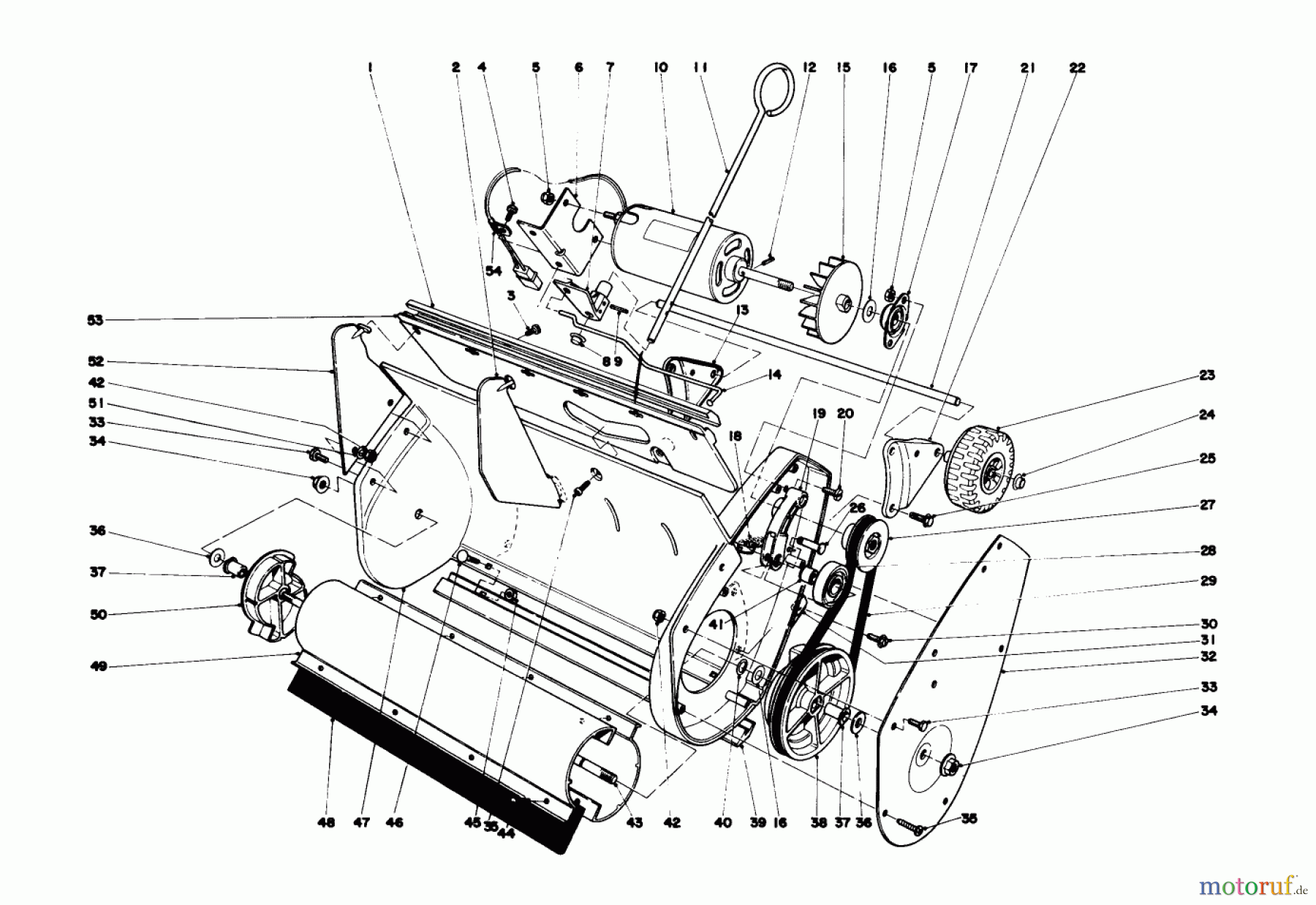

Toro Neu Snow Blowers/Snow Throwers Seite 1 38000 (S-120) - Toro S-120 Snowthrower, 1979 (9000001-9999999) LOWER MAIN FRAME ASSEMBLY
PosNúmero de artículoDescripción
1 TR37-6340DISCONTINUED
2 TR37-6170DISCONTINUED
3 TR32104-7710-16 X 3/8 THDG SCREW
4 TR32104-124DISCONTINUED
5 Toro MutterTR3296-42Mutter
6 TR37-6380DISCONTINUED
7 TR37-5990DISCONTINUED
8 TR3290-337NUT-SPEED
9 TR32121-97Spannstift
10 TR37-6100DISCONTINUED
11 TR37-5980DISCONTINUED
12 TR32121-73PIN-ROLL
13 TR37-6350DISCONTINUED
14 TR37-5970DISCONTINUED
15 TR37-4120SPROCKET 20T
16 TR37-8080Scheibe
17 TR37-6300SIDE FLANGE BRG
18 TR37-6290DISCONTINUED
19 TR37-4180Hauptbremszylinder
20 TR25-3120DISCONTINUED
21 TR37-4460DISCONTINUED
22 TR37-6360DISCONTINUED
23 TR37-5960S-120 WHEEL
24 TR32112-1Sicherungskappe
25 TR32144-10SCREW-HWH
26 TR36-7400DISCONTINUED
27 TR37-6040DISCONTINUED
28 TR36-7420KUGELLAGER
29 TR37-6010BELT
30 TR32104-76Schraube
31 TR3290-171MUTTER
32 TR37-640056-6510
33 TR3290-321Schraube
34 TR32128-25NUT-HF
35 TR32104-121Schraube
36 TR37-807039-5190
37 TR37-6070BUSHING ROTOR
38 TR37-6050DISCONTINUED
39 TR37-615038-8720
40 TR32120-46Sicherung
41 TR36-7410DISCONTINUED
42 TR3296-2Mutter
43 TR37-6330ROTOR SHAFT
44 TR37-0370SCHRAUBE
45 Toro MutterTR32149-2Mutter
46 TR3229-11SCREW-CARR
47 TR37-6200DISCONTINUED
48 TR37-639037-6391
49 TR37-6370DISCONTINUED
50 TR37-6060DISCONTINUED
51 TR38-5710SCHEIBE
52 TR37-6140VANE OUTSIDE
53 TR37-6270DISCONTINUED
