Toro 74833 (ZX6030) - TITAN ZX6030 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) 60 INCH DECK ASSEMBLY Listas de piezas de repuesto y dibujos

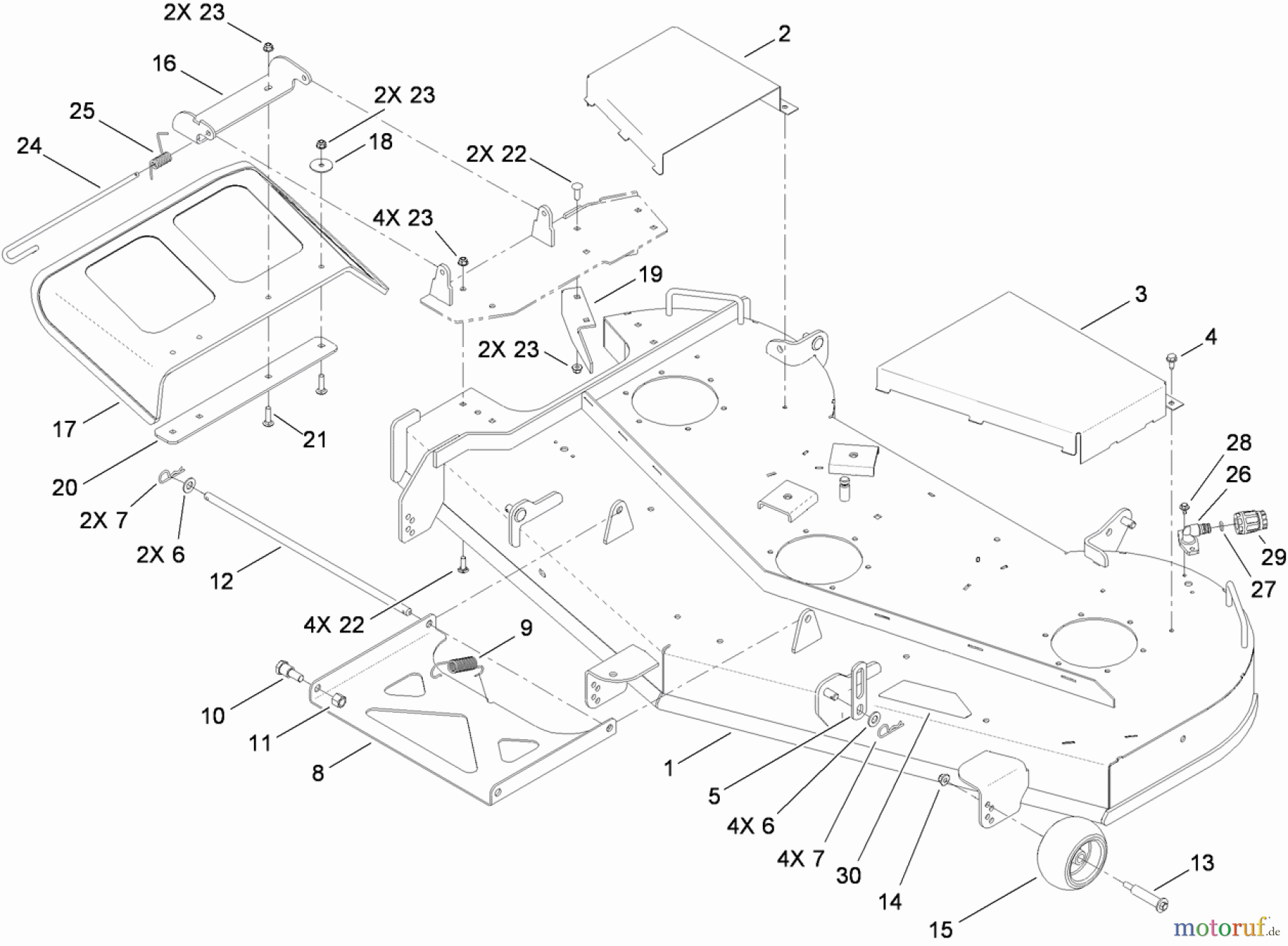

60 INCH DECK ASSEMBLY 74833 (ZX6030) - Toro TITAN ZX6030 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74833 (ZX6030) - Toro TITAN ZX6030 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) 60 INCH DECK ASSEMBLY
PosNúmero de artículoDescripción
1 TR119-345360 INCH DECK ASM
2 TR115-5036-03COVER-BELT, RH
3 TR115-5037-03COVER-BELT, LH
4 TR32144-70Schraube
5 TR115-2622LINK-LIFT
6 TR3256-26WASHER-FLAT
7 TR1-806005PIN-HAIR
8 TR115-5027-01PAN-PIVOT, DECK
9 TR115-9652SPRING-EXTENSION
10 TR94-5823BOLT-SHOULDER, HH
11 TR3296-23Mutter
12 TR115-5030ROD-DECK, PIVOT
13 TR112-3977BOLT-SHOULDER
14 TR104-8301Mutter
15 TR1-603299LAUFROLLE
16 TR114-1648-03BRACKET-DEFLECTOR, UPPER
17 TR117-1270DEFLECTOR-MOLDED
18 TR3256-68Scheibe
19 TR119-3388-03BAFFLE-CUTOFF
20 TR115-5048-03PLATE-DEFLECTOR
21 TR3230-3Schraube
22 TR3230-22Bolzen
23 TR104-8300Mutter
24 TR109-8854PIN-CHUTE
25 TR115-9641SPRING-TORSION
26 TR95-2747FITTING-WASHOUT
27 TR46-6290O-RING, SEAL
28 TR46-8560SCREW-HHFTF
29 TR95-3270SCHLAUCHFITTING
30 TR117-5303DECAL
