Toro 74824 (ZX6050) - TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999) MOTION CONTROL ASSEMBLY Listas de piezas de repuesto y dibujos

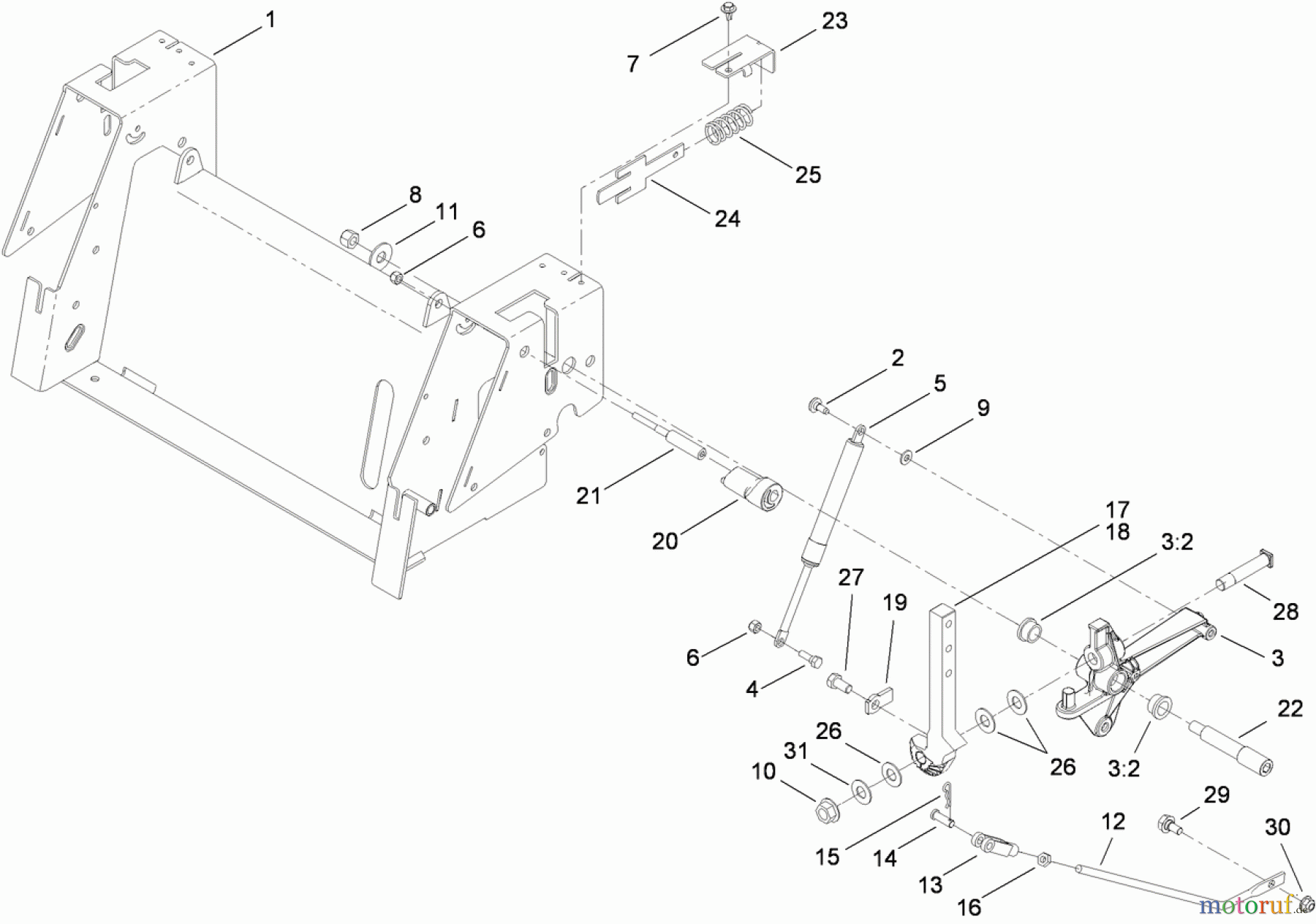

MOTION CONTROL ASSEMBLY 74824 (ZX6050) - Toro TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 74824 (ZX6050) - Toro TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2009 (290000001-290999999) MOTION CONTROL ASSEMBLY
PosNúmero de artículoDescripción
1 TR115-2546-03BOX-CONTROL
2 TR112-4004SCREW-SHOULDER
3 TR110-6828ACTIVATOR ARM ASM
3:2 TR105-3455BUSHING
4 TR106-2214BOLT-SHOULDER
5 TR103-2913Stossdaempfer
6 Toro MutterTR3296-42Mutter
7 TR46-8560SCREW-HHFTF
8 TR3296-48Stopmutter
9 TR3256-22Scheibe
10 TR32128-23Mutter
11 TR3256-5Scheibe
12 TR115-2529LINK-BENT, HYDRO
13 TR1-303105YOKE-ADJUSTABLE
14 TR1-808280PIN-CLEVIS
15 TR1-806003HAARNADELSICHERUNG
16 TR3220-2Mutter
17 TR110-6783-05ARM-ACTUATOR, LH
18 TR110-6782-05ARM-ACTUATOR, RH
19 TR115-5023TAB-STOP
20 TR110-6873ECCENTRIC
21 TR110-6874SCREW-ECCENTRIC
22 TR110-6875BOLT-SHOULDER
23 TR110-6751BRACKET-RETURN
24 TR110-6750PLATE-RETURN
25 TR110-6752SPRING-COMPRESSION
26 TR110-6894WASHER-PIVOT
27 TR323-4Schraube
28 TR1-106784DISCONTINUED
29 TR37-8771Schraube
30 TR104-8300Mutter
31 TR112-9771WASHER-TEFLON
