Toro 74801 (Z18-52) - Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999) HEIGHT-OF-CUT HANDLE AND PLATE ASSEMBLY Listas de piezas de repuesto y dibujos

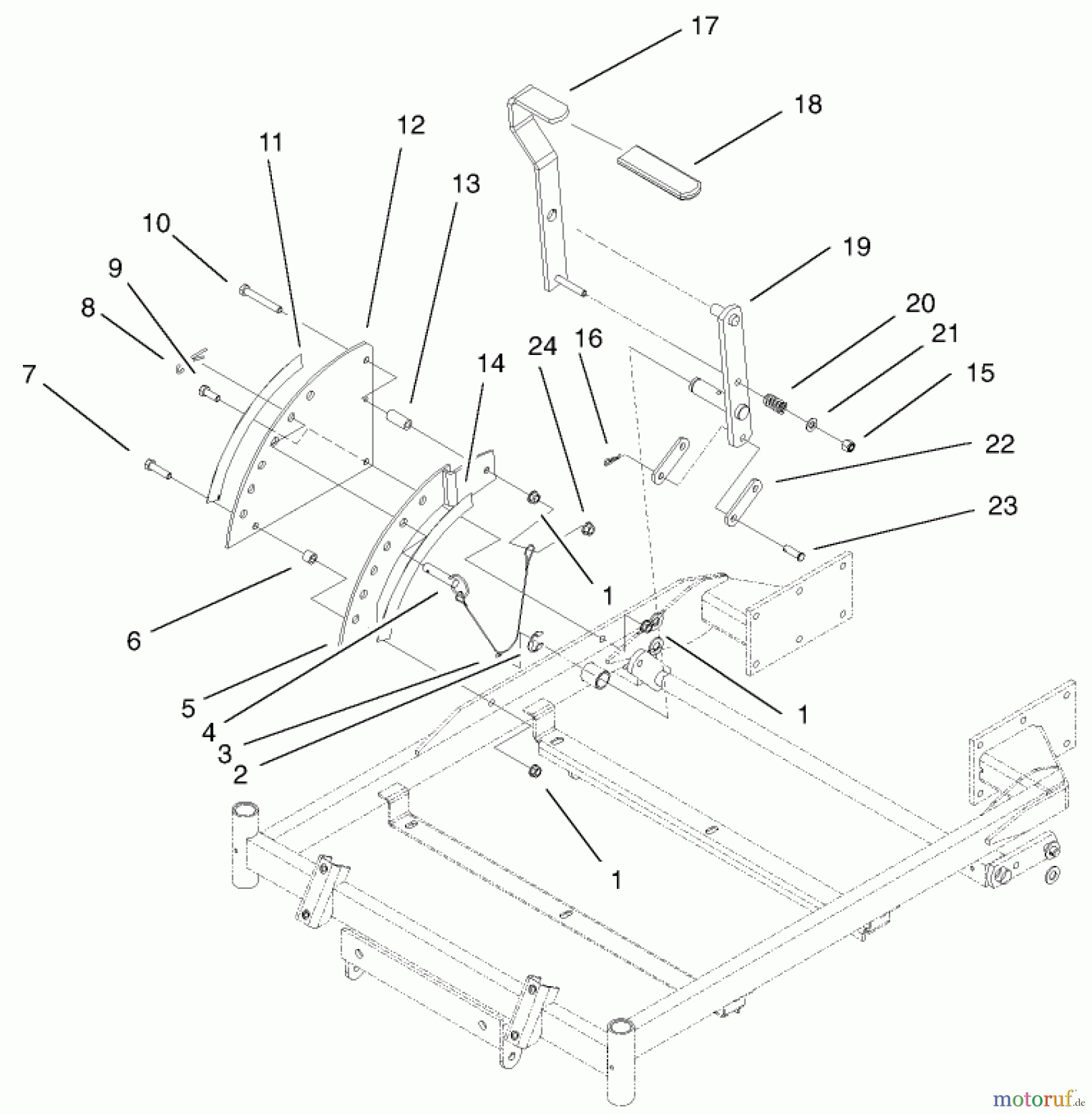

HEIGHT-OF-CUT HANDLE AND PLATE ASSEMBLY 74801 (Z18-52) - Toro Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999)

Toro Neu Mowers, Zero-Turn 74801 (Z18-52) - Toro Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999) HEIGHT-OF-CUT HANDLE AND PLATE ASSEMBLY
PosNúmero de artículoDescripción
1 TR3290-357NUT-HHF, WHIZ
2 TR32151-103Seegerring
3 Toro SchmiernippelTR302-5Schmiernippel
4 TR104-3678PIN-HITCH
5 TR100-7335-01PLATTE
6 TR1-413088BUSHING-LEVER, LIFT
7 TR323-8SCREW-HH
8 TR1-806005PIN-HAIR
9 TR323-6Schraube
10 TR3231-25Bolzen
11 TR104-3641DECAL-DECK HEIGHT, OUTER
12 TR100-7384-01PLATE-DECK LIFT
13 TR1-633082BUECHSE
14 TR104-8032DECAL-DECK HEIGHT, INNER
15 TR32-9639
16 TR1-806003HAARNADELSICHERUNG
17 TR1-652023-03Hebel
18 TR1-633295GRIP-LEVER, LIFT
19 TR1-652027-03ARM-DECK, LIFT
20 TR1-633325Druckfeder
21 Toro WASHER-FLATTR3256-24WASHER-FLAT
22 TR1-633068ARM-LIFT, DECK
23 TR283-2Bolzen
24 TR32128-21Mutter
