Toro 74641 (5060) - TimeCutter MX 5060 Riding Mower, 2012 (SN 312000001-312999999) SEAT ASSEMBLY Listas de piezas de repuesto y dibujos

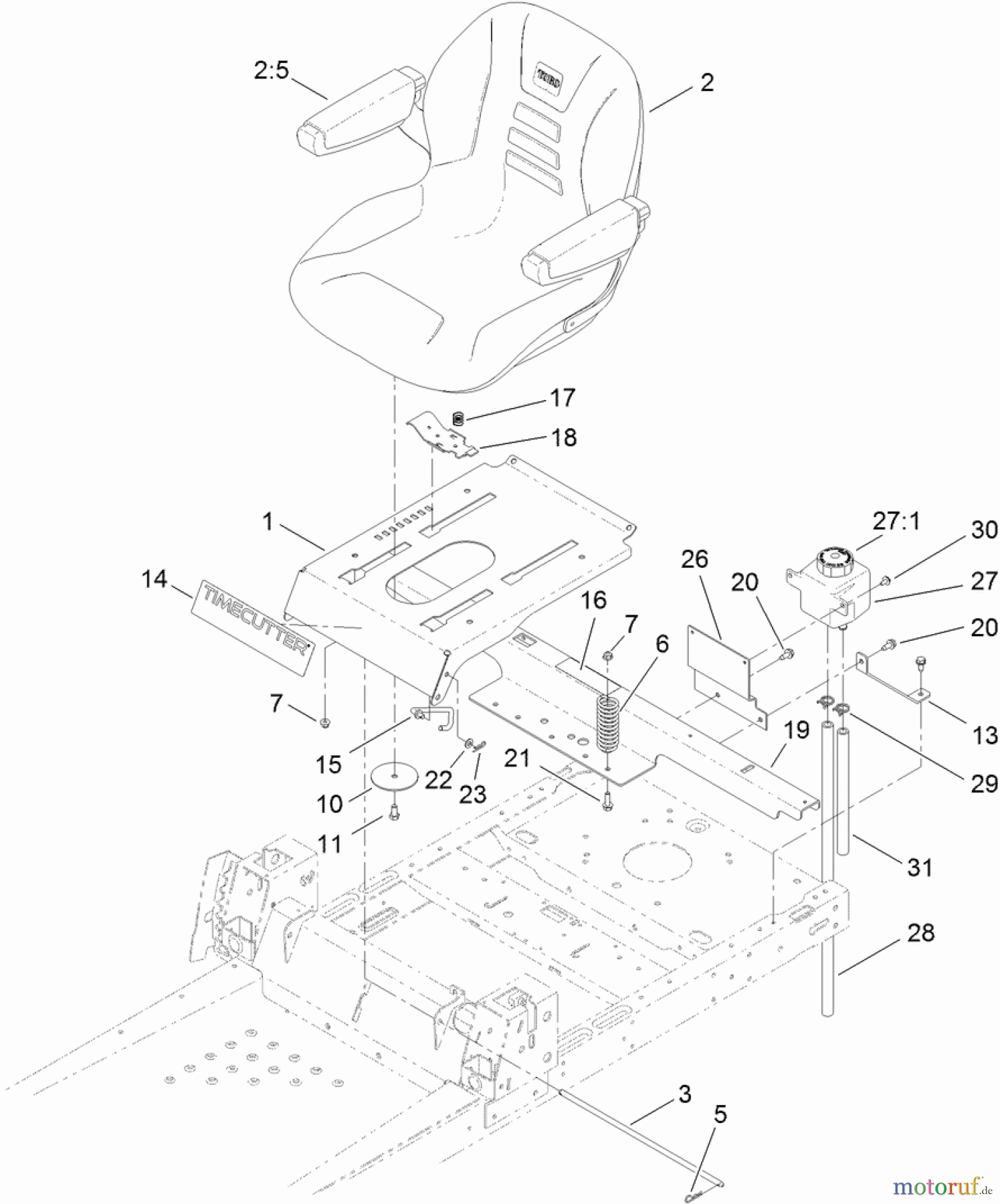

SEAT ASSEMBLY 74641 (5060) - Toro TimeCutter MX 5060 Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74641 (5060) - Toro TimeCutter MX 5060 Riding Mower, 2012 (SN 312000001-312999999) SEAT ASSEMBLY
PosNúmero de artículoDescripción
1 TR119-3390-03PAN-SEAT
2 TR115-505318 INCH SEAT ASM
2:5 TR119-3307ARMREST KIT
3 TR115-4966ROD-STOP
5 TR3290-250Sicherung
6 TR92-7054Sitzfeder
7 TR104-8300Mutter
10 TR117-5307WASHER-SEAT
11 TR323-4Schraube
13 TR119-3431-03SUPPORT-TANK, REAR
14 TR1-213019CONTROL,THROTTLE
15 TR119-8972STOP-SEAT
16 TR106-8717DECAL-SERVICE
17 TR115-9624SPRING-COMPRESSION
18 TR115-9623LATCH-SEAT
19 TR119-3414-03SUPPORT-POD
20 TR32144-70Schraube
21 TR3234-29SCREW-HHF
22 TR3256-23Scheibe
23 TR3290-307Stift
26 TR120-7970-03MOUNT-TANK
27 TR109-2250VENT-TANK, HYDRO
27:1 TR109-3320CAP-RESERVOIR, HYD
28 TR121-2951HOSE-OVERFLOW
29 TR117-1193CLAMP-HOSE
30 TR46-8560SCREW-HHFTF
31 TR121-2952HOSE-OVERFLOW
