Toro 74622 (4200) - TimeCutter SS 4200 Riding Mower, 2011 (311000001-311999999) 42 INCH DECK BELT, SPINDLE AND BLADE ASSEMBLY Listas de piezas de repuesto y dibujos

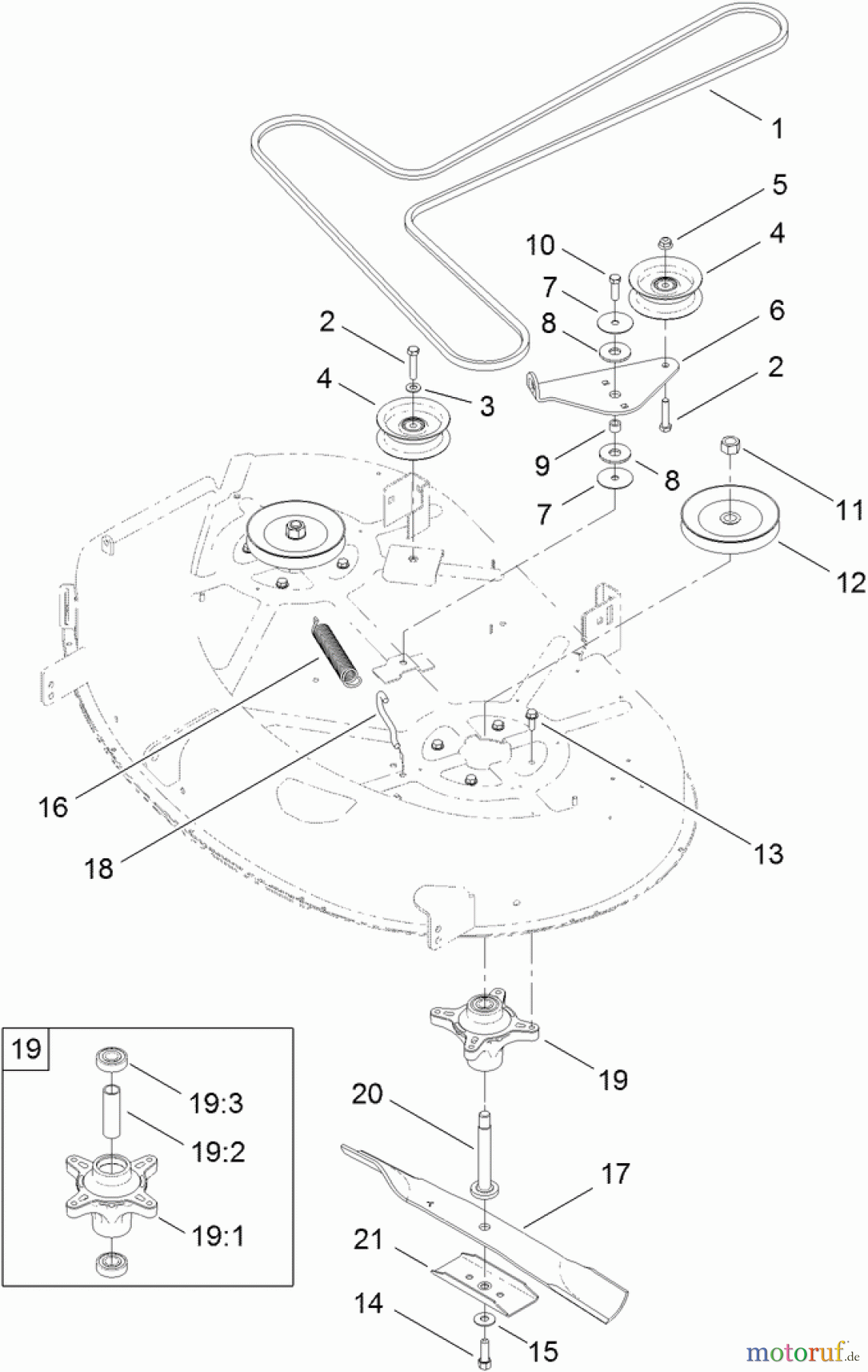

42 INCH DECK BELT, SPINDLE AND BLADE ASSEMBLY 74622 (4200) - Toro TimeCutter SS 4200 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74622 (4200) - Toro TimeCutter SS 4200 Riding Mower, 2011 (311000001-311999999) 42 INCH DECK BELT, SPINDLE AND BLADE ASSEMBLY
PosNúmero de artículoDescripción
1 TR119-8819V-BELT
2 TR323-9Schraube
3 Toro WASHER-FLATTR3256-24WASHER-FLAT
4 TR106-2175Spannrolle
5 TR104-8301Mutter
6 TR114-8540ARM-IDLER
7 TR120-2229WASHER-IDLER PIVOT
8 Toro WASHER-FRICTION, COMPOSITETR114-0463WASHER-FRICTION, COMPOSITE
9 TR115-4986SPACER
10 TR323-7Schraube
11 TR3219-6Mutter
12 TR110-6864PULLEY
13 Toro SchraubeTR32144-41Schraube
14 Toro SCHRAUBETR26-0671SCHRAUBE
15 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
16 TR106-2177SPRING-EXTENSION
17 TR110-6568-03BLADE-21.6 INCH
18 TR88-5970HOOK-RETURN, SPRING
19 TR117-7439SPINDLE ASM
19:1 TR117-7267
19:2 TR117-7269SPACER
19:3 TR100-1048Kugellager
20 TR117-7268SHAFT-SPINDLE
21 TR106-2248-03STIFFENER-BLADE
