Toro 74621 (3200) - TimeCutter SS 3200 Riding Mower, 2012 (SN 312000001-312999999) RIGHT HAND HYDRO TRANSAXLE ASSEMBLY NO. 119-3331 Listas de piezas de repuesto y dibujos

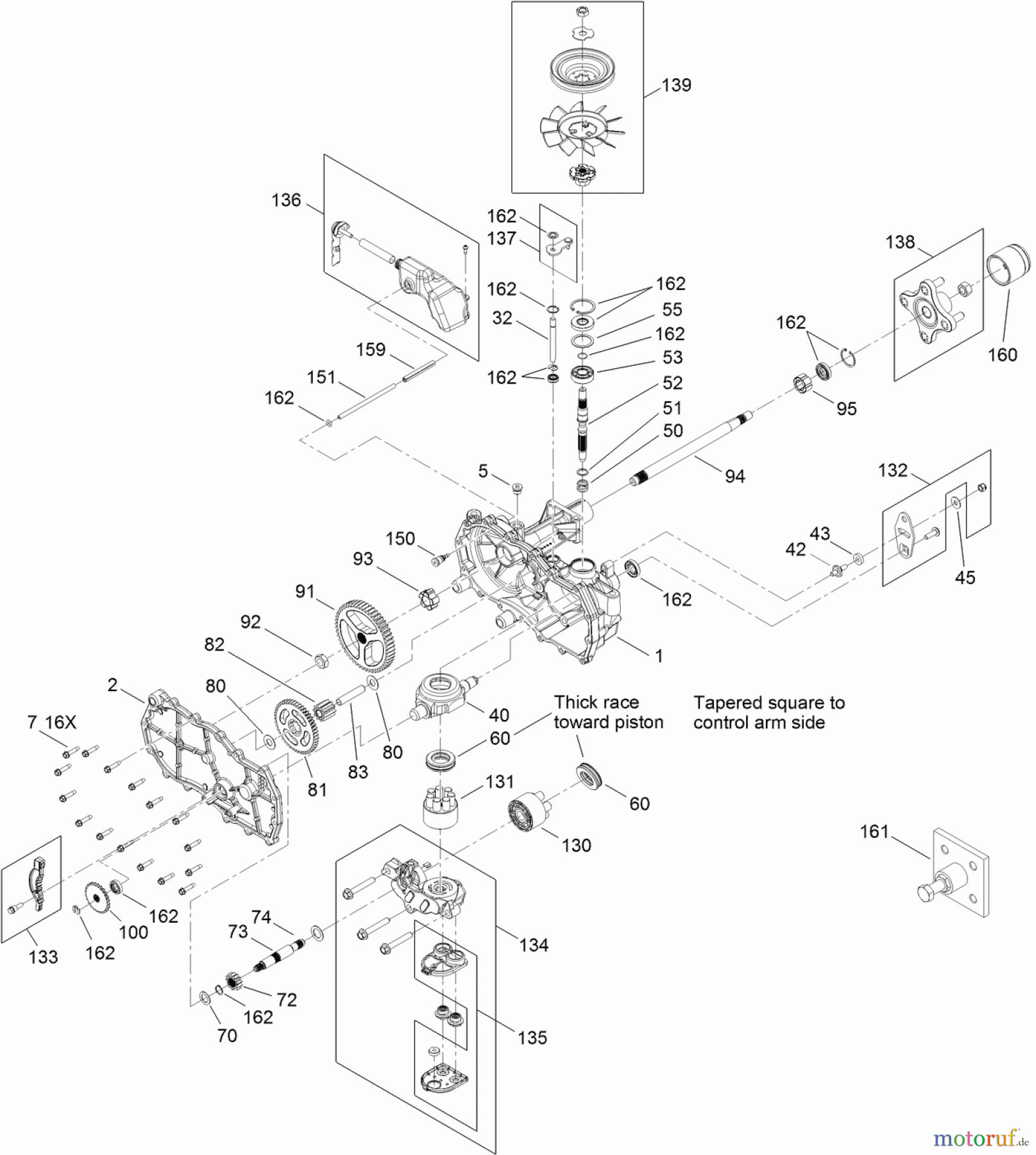

RIGHT HAND HYDRO TRANSAXLE ASSEMBLY NO. 119-3331 74621 (3200) - Toro TimeCutter SS 3200 Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74621 (3200) - Toro TimeCutter SS 3200 Riding Mower, 2012 (SN 312000001-312999999) RIGHT HAND HYDRO TRANSAXLE ASSEMBLY NO. 119-3331
PosNúmero de artículoDescripción
1 TR120-5531MAIN HOUSING ASM
2 TR120-5533HOUSING SIDE KIT
5 TR104-2189PLUG-THREAD, STRAIGHT
7 TR117-5359SCREW-HHF
13 TR104-2147Dichtungsmasse
32 TR106-8678ROD-BYPASS
40 TR104-5304SWASHPLATE-TRUNNION
42 TR104-2116STEHBOLZEN
43 TR112-9853PUCK-FRICTION
45 TR114-8491WASHER
50 TR120-5537SPRING-COMPRESSION
51 TR120-5538WASHER
52 TR104-5306Zahnwelle
53 TR104-5311Kugellager
55 TR104-5308Distanzscheibe
60 TR94-6922BEARING-THRUST
70 TR104-5339SCHEIBE
72 TR104-5316ZAHNRAD
73 TR106-8683SHAFT-MOTOR
74 TR104-5360WASHER
80 TR119-5541
81 TR104-5317ZAHNRAD
82 TR104-5318GEAR-JACKSHAFT, 10T
83 TR104-5329PIN-JACKSHAFT
91 TR120-5539GEAR-BULL
92 TR104-2142NUT-HJ
93 TR115-8314
94 TR120-5540SHAFT-AXLE
95 TR120-5541BEARING-SLEEVE
100 TR106-8694Scheibe
130 TR103-2666CYLINDER BLOCK KIT
131 TR110-8561PUMP BLOCK ASM
132 TR117-5362ARM CONTROL KIT
133 TR106-8688Bremsarm
134 TR112-9862CENTER SECTION FILTER KIT
135 TR114-1634FILTER KIT
136 TR121-5735LH EXPANSION TANK KIT
137 TR107-2489BYPASS ARM KIT
138 TR121-5731HUB KIT
139 TR121-5729FAN PULLEY KIT
150 TR104-5349FITTING
151 TR115-8302HOSE
159 TR121-5728CASE-TUBE
160 TR125-0041CAP-AXLE
161 TR114-8467HUB-PULLER, 4 BOLT
162 TR120-7103SEAL AND RING KIT
