Toro 74601 (17K-44ZX) - 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999) IGNITION/ELECTRICAL ASSEMBLY KOHLER CV 490S-27503 Listas de piezas de repuesto y dibujos

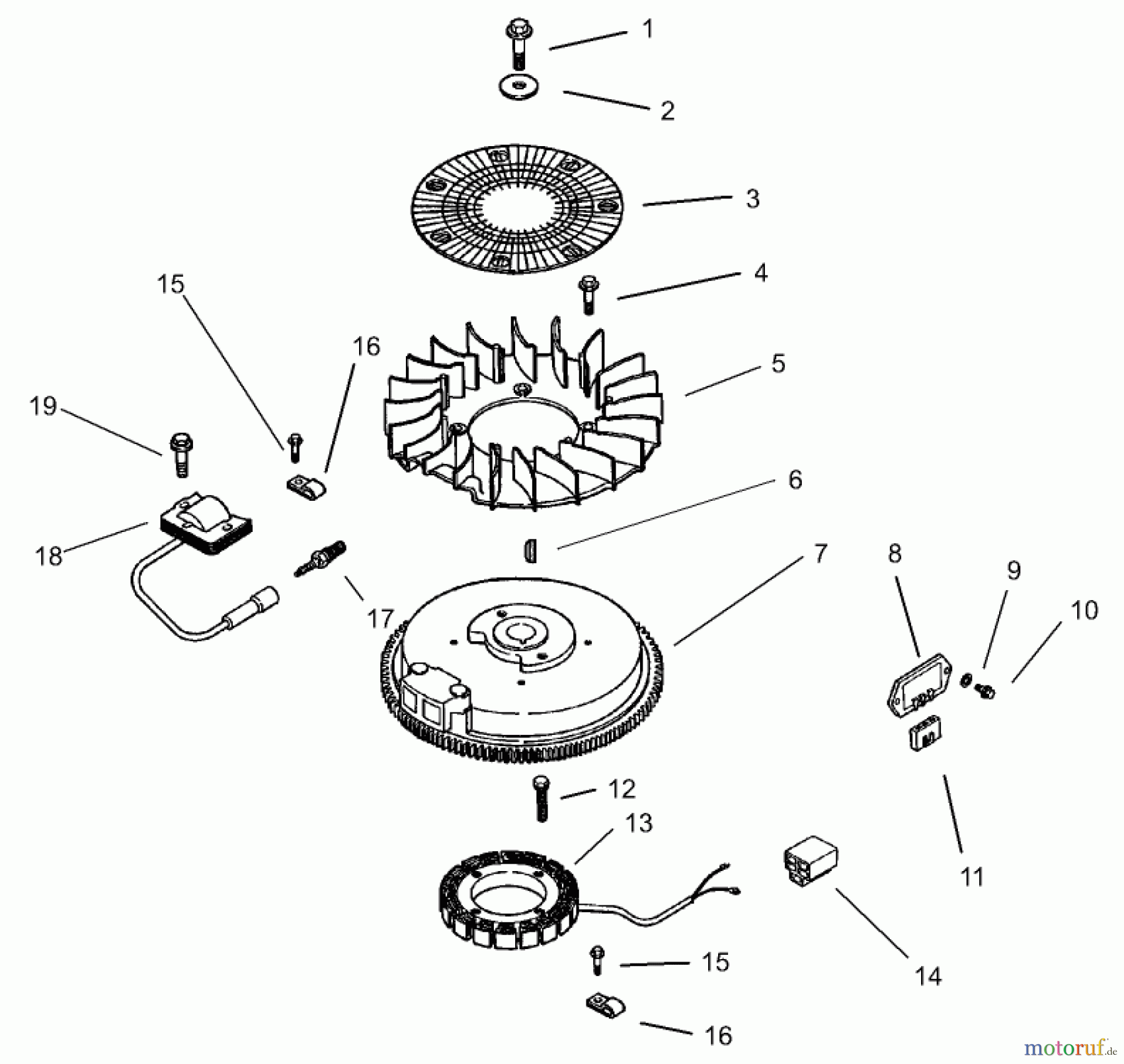

IGNITION/ELECTRICAL ASSEMBLY KOHLER CV 490S-27503 74601 (17K-44ZX) - Toro 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999)

Toro Neu Mowers, Zero-Turn 74601 (17K-44ZX) - Toro 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999) IGNITION/ELECTRICAL ASSEMBLY KOHLER CV 490S-27503
PosNúmero de artículoDescripción
1 KH25086361-SSCREW, HEX FLANGE
2 KH1246803-SWASHER, FLAT 13/32"
3 KH2416203-SSCREEN, GRASS
4 KH2508647-SBOLT, SHOULDER
5 KH1215706-SFAN
6 KHX-42-15-SKEY, 3/16" X 5/8"
7 KH1202516-SKIT, FLYWHEEL
8 KH4140310-SREGULATOR/RECTIFIER
9 KHX-22-11-SWASHER, INT TOOTH LOCK 1/4"
10 KHM-639016-SSCREW, FLG M6X1.0X16
11 KH2515541-SCONNECTOR
12 KH25086402-SSCREW, THREAD FORMING
13 KH237878-SKIT, 15 / 20 AMP STATOR
14 KH4815501-SCONNECTOR
15 KHM-545010-SSCREW, FLG THD FRM M5X.8X10
16 KHX-728-1-SCLIP
17 KH1213202-SPLUG, SPARK (STD)
18 KH1258404-SMODULE, IGNITION
19 KH25086399-SSCREW, THREAD FORMING
KH2551805-SLEAD
KH1251801-SLEAD
KH2451812-SLEAD
