Toro 74601 (17K-44ZX) - 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999) BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER CV 490S-27503 Listas de piezas de repuesto y dibujos

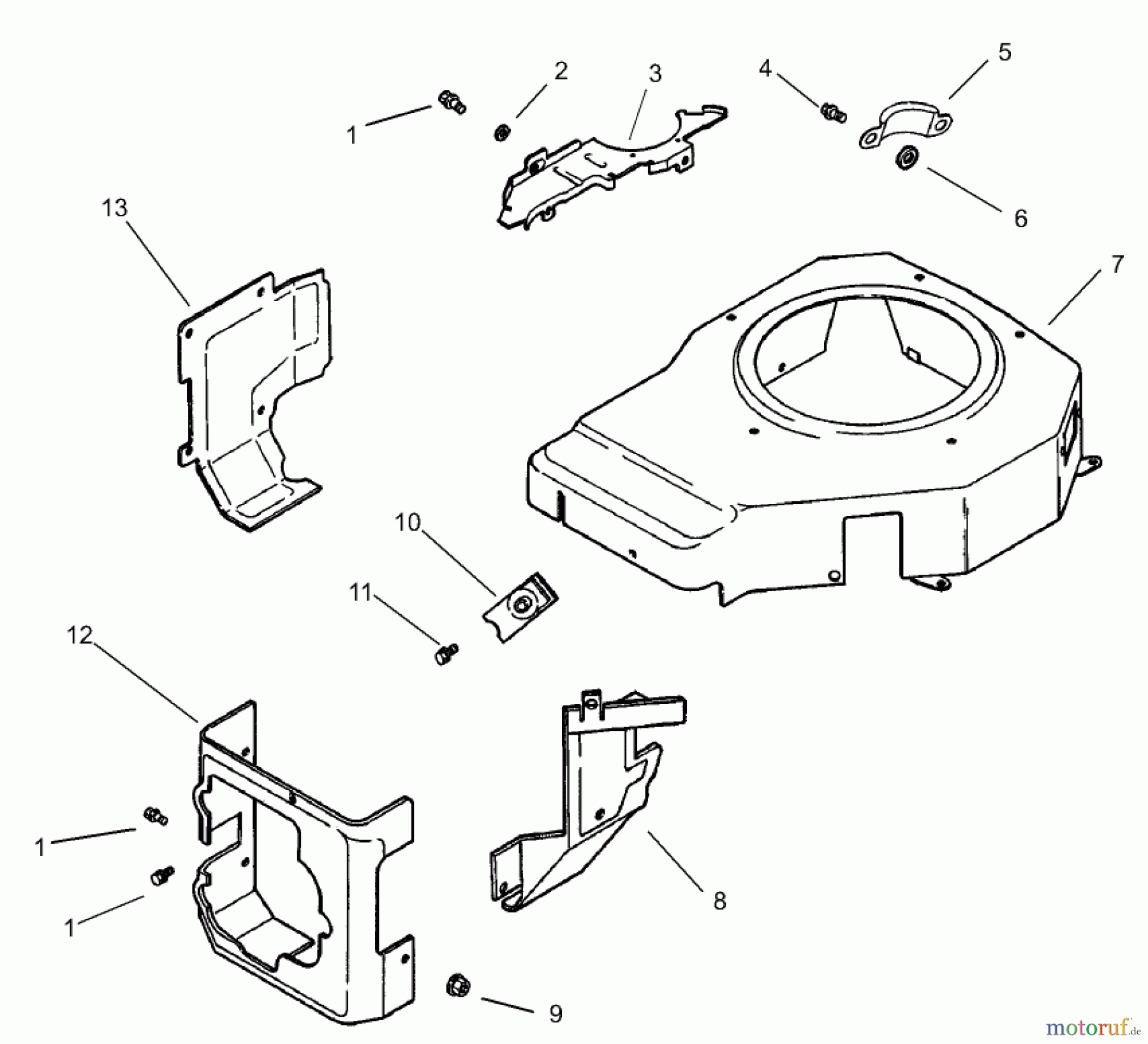

BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER CV 490S-27503 74601 (17K-44ZX) - Toro 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999)

Toro Neu Mowers, Zero-Turn 74601 (17K-44ZX) - Toro 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999) BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER CV 490S-27503
PosNúmero de artículoDescripción
1 KHM-545010-SSCREW, FLG THD FRM M5X.8X10
2 KH2446810-SWASHER, FLAT 7/32"
3 KH1214607-SPLATE, BACKING
4 KH25086397-SSCREW, THREAD FORMING
5 KH2409605-SCOVER, PINION
6 KH220534-SWASHER, FLAT 5/16"
7 KH1202796-SKIT, BLOWER HOUSING
8 KH1206318-SBAFFLE, INTAKE SIDE
9 KHM-541050-SNUT, FLG M5X.8
10 KH2515413-SCLIP, BAFFLE MOUNTING
11 KH1208637-SSCREW, CPTV WASHER
12 KH1206320-SBAFFLE, CYLINDER HEAD
13 KH1206319-SBAFFLE, CYLINDER
