Toro 74437 (ZD420T) - TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999) ENGINE AND FUEL TANK ASSEMBLY Listas de piezas de repuesto y dibujos

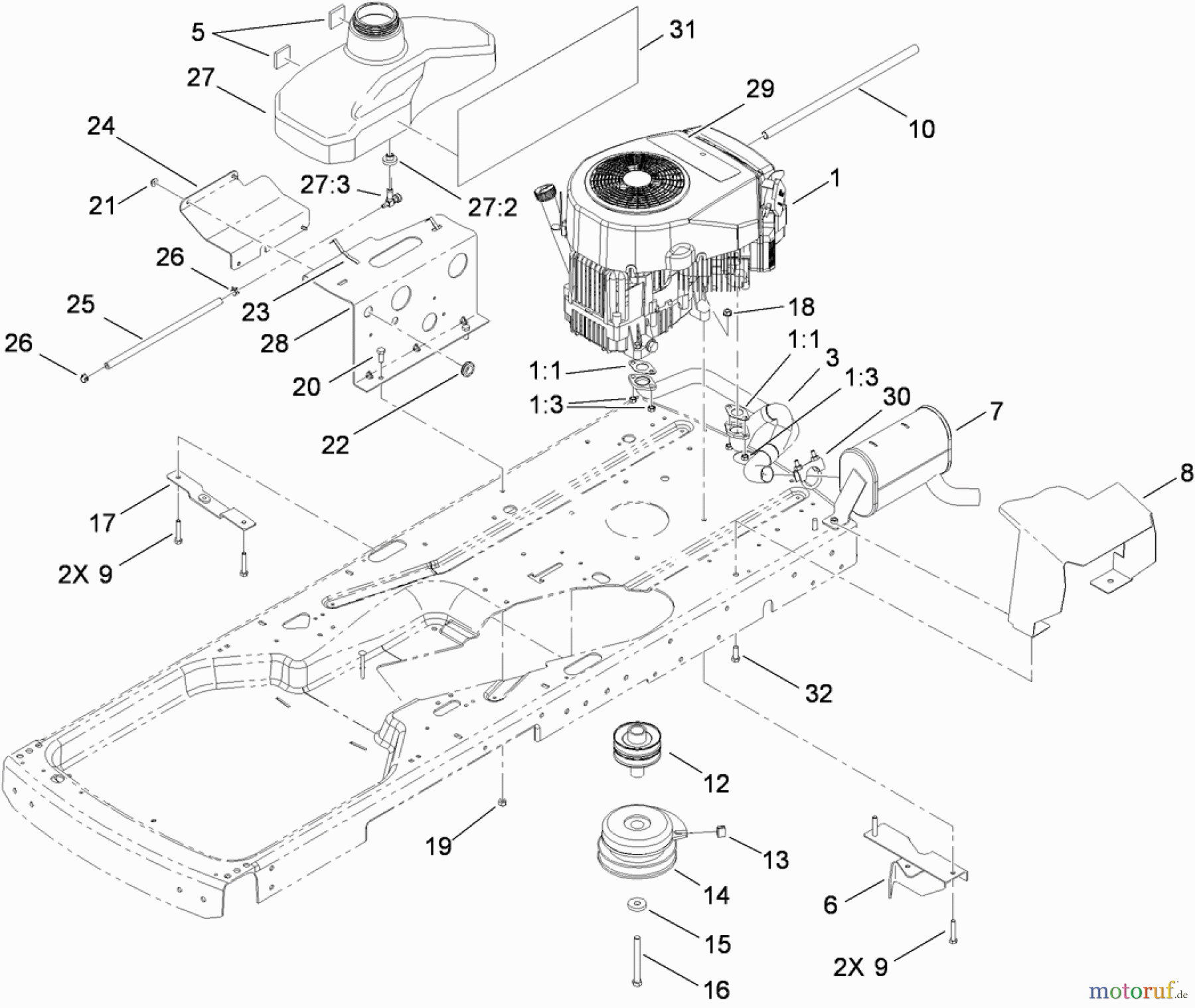

ENGINE AND FUEL TANK ASSEMBLY 74437 (ZD420T) - Toro TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 74437 (ZD420T) - Toro TimeCutter ZD420T Riding Mower, 2009 (290000001-290999999) ENGINE AND FUEL TANK ASSEMBLY
PosNúmero de artículoDescripción
1 TR
1:1 TR114-3661KAWASAKI#11060-7021
1:3 TR114-3693NUT-M8
3 TR114-3667MANIFOLD
5 TR104-2488DICHTUNGSPROFIL
6 TR107-4873BRACKET-PIVOT
7 TR114-3666MUFFLER
8 TR114-9425-03SHIELD-MUFFLER
9 TR322-9Schraube
10 TR106-7022TUBE-DRAIN, OIL
12 TR105-3472Riemenscheibe
13 TR98-5023Gummipuffer
14 TR104-3334Kupplung
15 TR112843WASHER
16 TR3212-16SCREW-HH
17 TR106-2156PLATE-MOUNT, IDLER
18 TR32128-25NUT-HF
19 Toro MutterTR3296-29Mutter
20 TR322-4Schraube
21 TR46-8560SCREW-HHFTF
22 TR237-124Gummituelle
23 TR609830Steckfeder
24 TR108-2315-03PLATE-SUPPORT
25 TR114-9448HOSE-FUEL
26 TR2412-98CLAMP-HOSE
27 TR105-3464Benzintank
27:2 TR46-6560BUSHING
27:3 TR110-6565VALVE-FUEL
28 TR108-2314-03PLATE-TANK
29 TR107-9246DECAL
30 TR114-3668CLAMP-MUFFLER
31 TR112-4776FOIL-SHIELD, HEAT
32 TR33114-025SCHRAUBE
