Toro 74390 (ZS 4200TF) - TimeCutter ZS 4200TF Riding Mower, 2012 (SN 312000001-312999999) 42 INCH DECK ASSEMBLY Listas de piezas de repuesto y dibujos

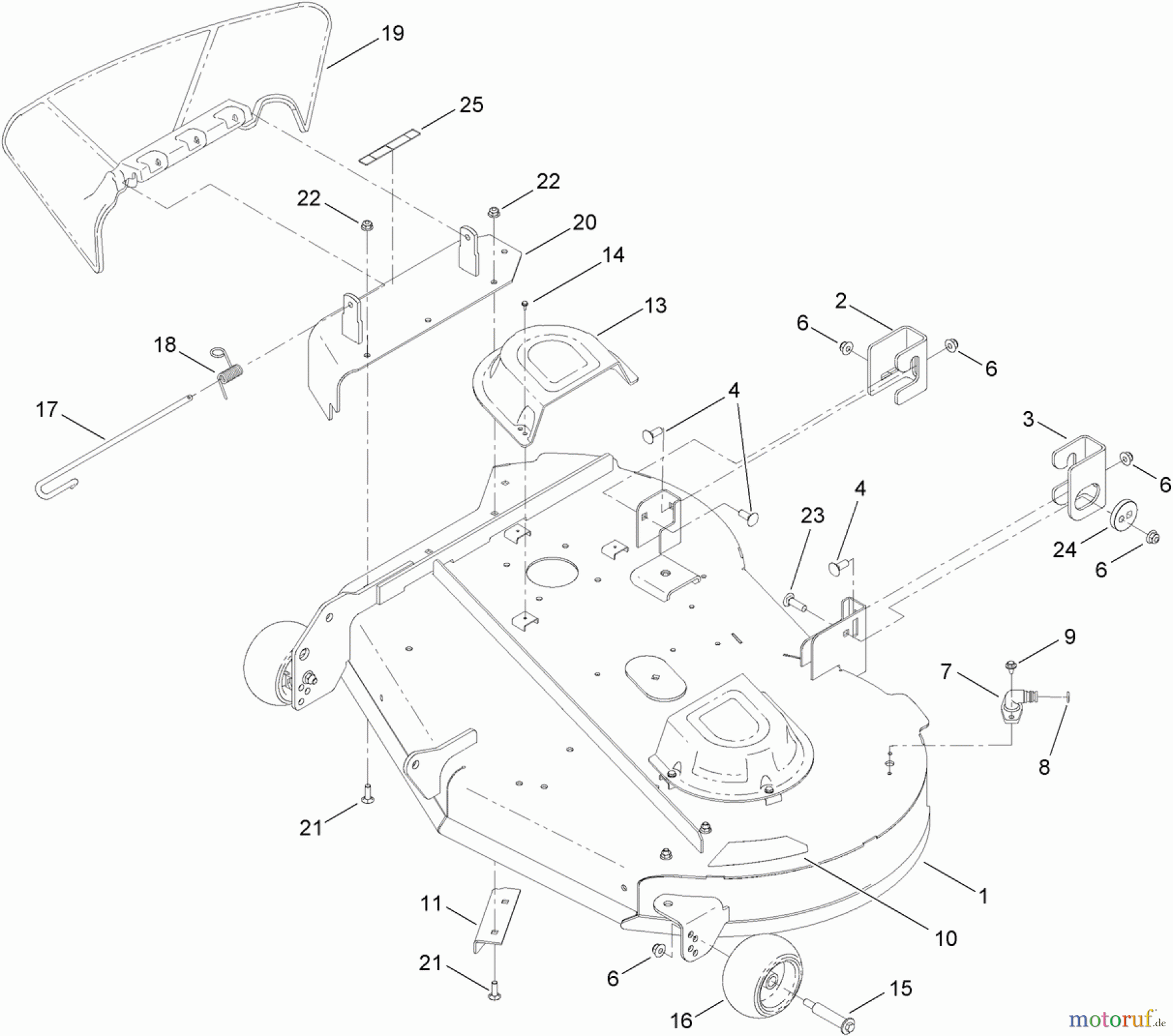

42 INCH DECK ASSEMBLY 74390 (ZS 4200TF) - Toro TimeCutter ZS 4200TF Riding Mower, 2012 (SN 312000001-312999999)

Toro Neu Mowers, Zero-Turn 74390 (ZS 4200TF) - Toro TimeCutter ZS 4200TF Riding Mower, 2012 (SN 312000001-312999999) 42 INCH DECK ASSEMBLY
PosNúmero de artículoDescripción
1 TR121-073342 INCH DECK AND DECAL ASM
2 TR119-3494BRACKET-HANGER, RH
3 TR121-0797BRACKET-HANGER, LH
4 Toro SchraubeTR3231-2Schraube
6 TR104-8301Mutter
7 TR95-2747FITTING-WASHOUT
8 TR46-6290O-RING, SEAL
9 TR46-8560SCREW-HHFTF
10 TR121-0791DECAL-DECK
11 TR120-7951-03BAFFLE-CUTOFF
13 TR108-7889COVER-BELT
14 TR32144-1Schraube
15 TR112-3977BOLT-SHOULDER
16 TR1-603299LAUFROLLE
17 TR109-8854PIN-CHUTE
18 TR121-2983SPRING-TORSION
19 TR121-0739DEFLECTOR-DISCHARGE
20 TR120-7945-01DISCHARGE COVER ASM
21 TR3230-22Bolzen
22 TR104-8300Mutter
23 TR3231-28SCREW-CARR
24 TR112-3980ECCENTRIC
25 TR937009
