Toro 74381 (Z4202) - TimeCutter Z4202 Riding Mower, 2009 (290000001-290000210) IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV710-0031 Listas de piezas de repuesto y dibujos

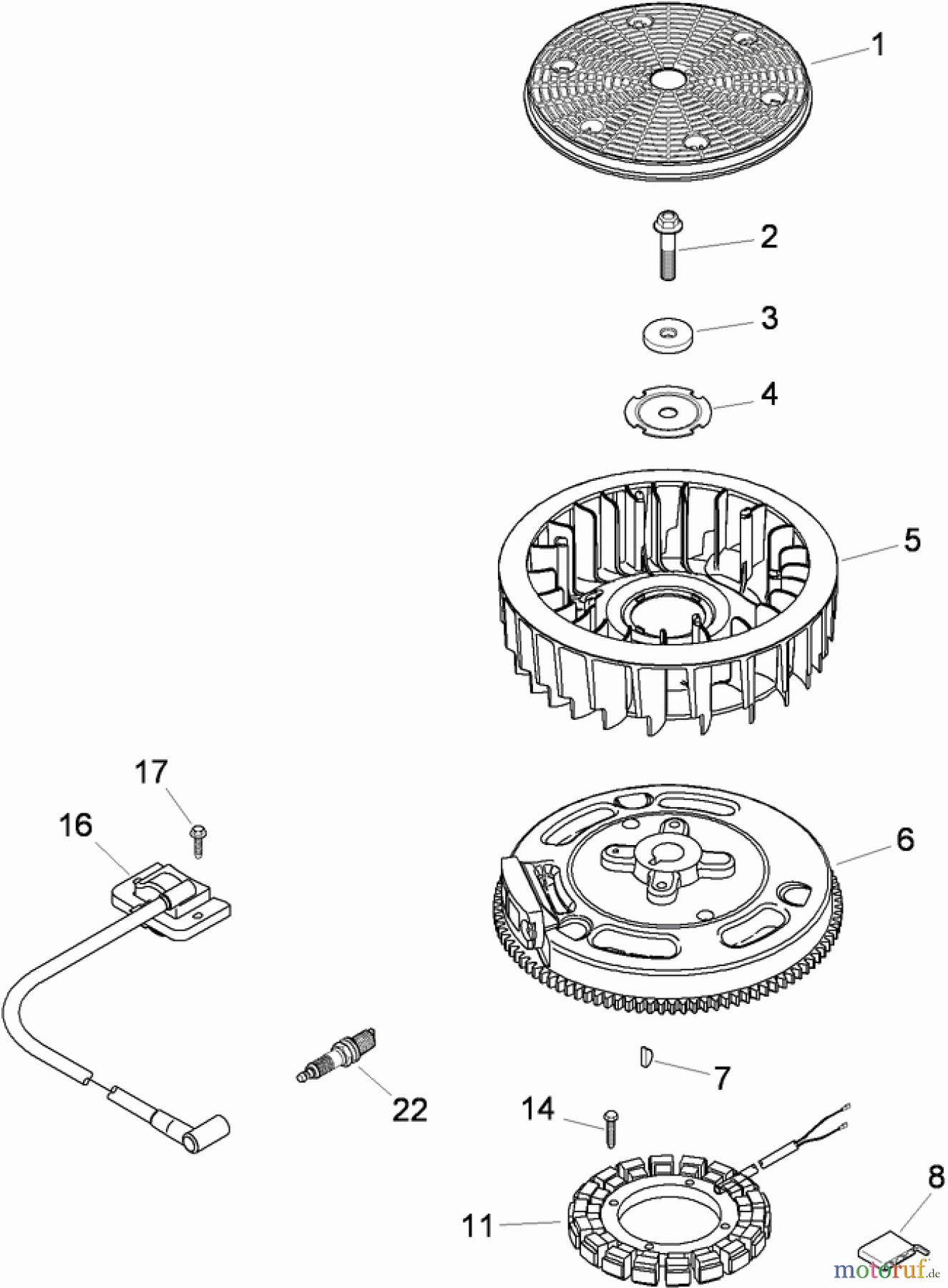

IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV710-0031 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2009 (290000001-290000210)

Toro Neu Mowers, Zero-Turn 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2009 (290000001-290000210) IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV710-0031
PosNúmero de artículoDescripción
1 KH3216203-SSCREEN, GRASS
2 KH25086361-SSCREW, HEX FLANGE
3 KH1246803-SWASHER, FLAT 13/32"
4 KH2014605-SPLATE, FAN MOUNTING
5 KH3215701-SFAN
6 KH3202522-SFLYWHEEL ASSEMBLY
7 KHX-42-15-SKEY, 3/16" X 5/8"
8 KH2515541-SCONNECTOR
11 KH237878-SKIT, 15 / 20 AMP STATOR
14 KH25086402-SSCREW, THREAD FORMING
16 KH2458445-SKIT, MODULE IGNTN (CDI FIXED)
17 KH25086399-SSCREW, THREAD FORMING
22 KH2513214-SSPARK PLUG, RFI
KH2545403-STIE, WIRE
KH2545201-STERMINAL
KH3217614-SKIT, WIRE HARNESS
