Toro 74360 (Z4200) - TimeCutter Z4200 Riding Mower, 2007 (270000001-270999999) ENGINE AND CLUTCH ASSEMBLY Listas de piezas de repuesto y dibujos

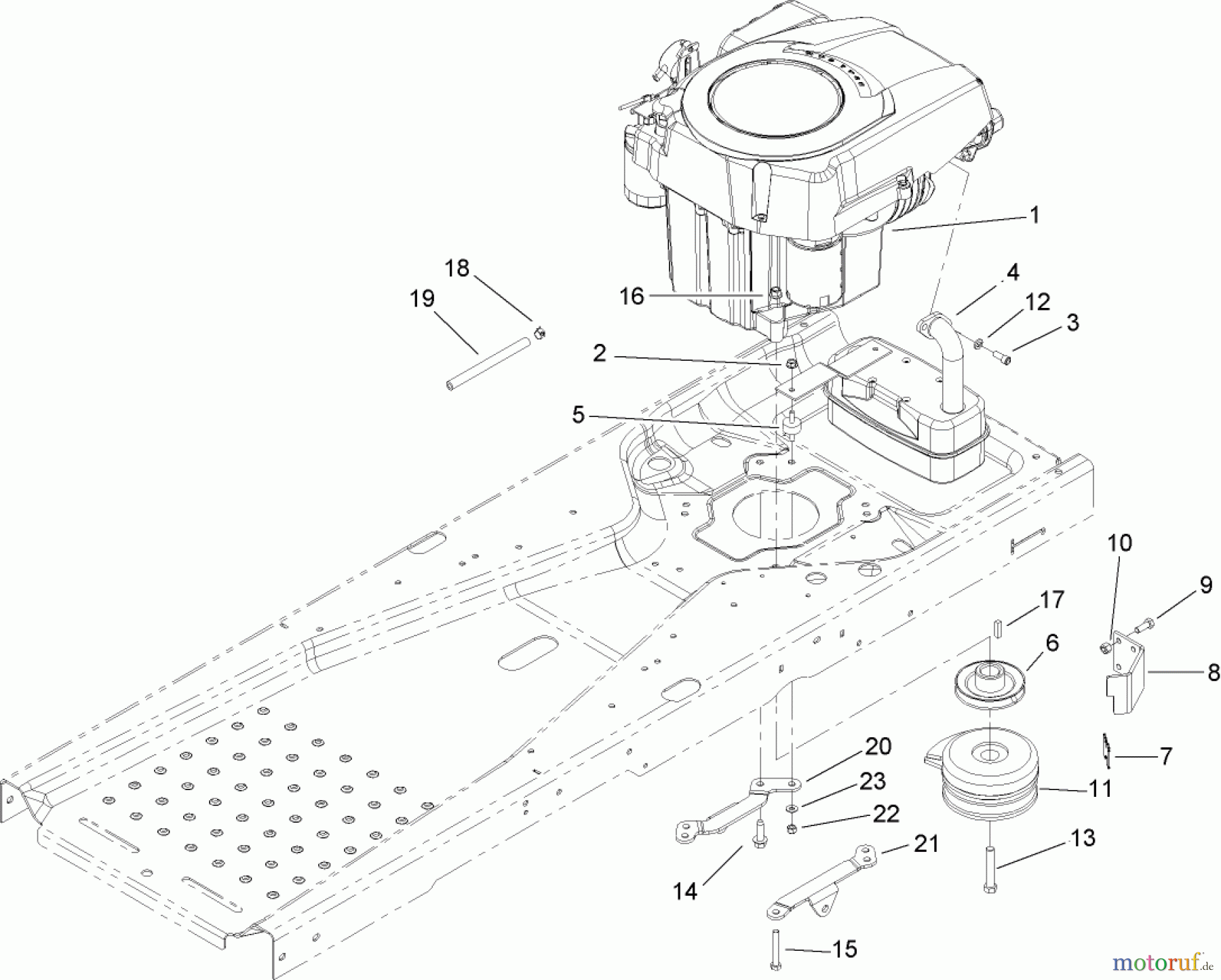

ENGINE AND CLUTCH ASSEMBLY 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2007 (270000001-270999999)

Toro Neu Mowers, Zero-Turn 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2007 (270000001-270999999) ENGINE AND CLUTCH ASSEMBLY
PosNúmero de artículoDescripción
1 TR
2 TR32128-33Mutter
3 TR3274-10Schraube
4 TR117-7461MUFFLER
5 TR112-3976ISOLATOR
6 TR114-1622PULLEY-ENGINE
7 TR112-4033BUMPER-PAD
8 TR110-6896STOP-CLUTCH
9 TR322-4Schraube
10 Toro MutterTR3296-29Mutter
11 TR104-3334Kupplung
12 TR3253-4Federring
13 TR3212-10SCREW-HH
14 TR32144-109Schraube
15 TR322-11SCREW-HH
16 Toro MutterTR3296-58Mutter
17 TR5-7280KEY
18 TR2412-98CLAMP-HOSE
19 TR109-0306HOSE-FUEL
20 TR110-6798SUPPORT-HYDRO, RH
21 TR110-6799SUPPORT-HYDRO, LH
22 Toro MutterTR3296-42Mutter
23 TR3256-22Scheibe
