Toro 74353 (Z480) - TimeCutter Z480 Riding Mower, 2006 (260000001-260999999) HYDRO AND BELT DRIVE ASSEMBLY Listas de piezas de repuesto y dibujos

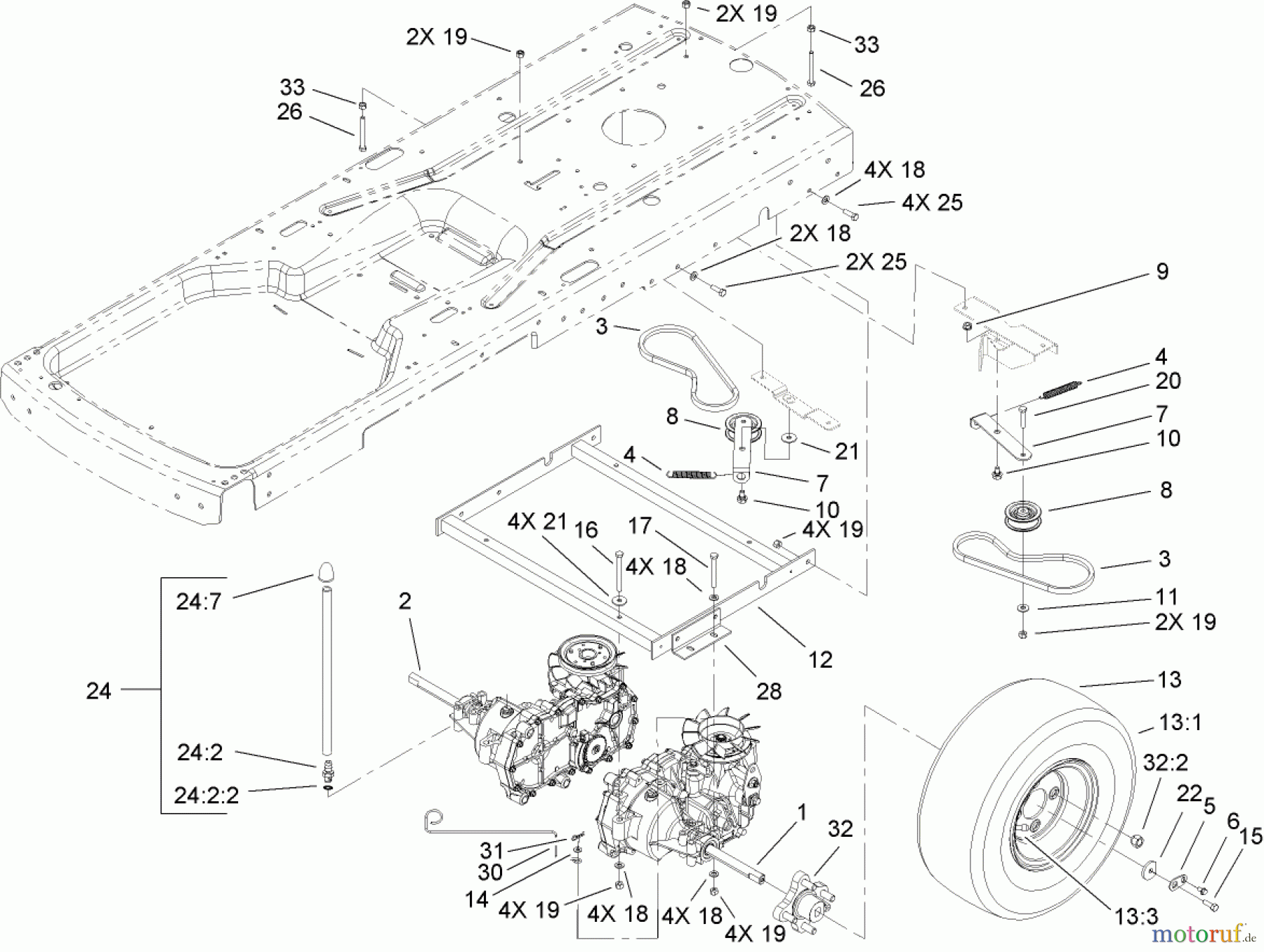

HYDRO AND BELT DRIVE ASSEMBLY 74353 (Z480) - Toro TimeCutter Z480 Riding Mower, 2006 (260000001-260999999)

Toro Neu Mowers, Zero-Turn 74353 (Z480) - Toro TimeCutter Z480 Riding Mower, 2006 (260000001-260999999) HYDRO AND BELT DRIVE ASSEMBLY
PosNúmero de artículoDescripción
1 TR114-8521KIT-TRANSAXLE, LH
2 TR114-8520KIT-TRANSAXLE, RH
3 TR106-2174Riemen
4 TR95-3805SPRING
5 TR105-3438Sicherungsblech
6 TR3234-13SCREW-HHF
7 TR105-7047ARM-IDLER
8 TR106-2176Spannrolle
9 TR32128-25NUT-HF
10 TR37-8770Schraube
11 TR3256-3Scheibe
12 TR107-4878-03HYDRO MOUNT ASM
13 TR106-7005REAR WHEEL ASM
13:1 TR105-3468TIRE
13:3 TR5108VENTIL
13:99 TR232-37Schlauch
14 TR3256-1SCHEIBE F. KLEMME
15 TR3210-5Schraube
16 TR322-20SCREW-HH
17 TR322-13SCREW-HH
18 TR3256-23Scheibe
19 Toro MutterTR3296-29Mutter
20 TR322-7Schraube
21 TR5-4460Scheibe
22 TR106-7001WASHER-WHEEL
24 TR106-7002VENT HOSE ASM
24:2 TR93-3818Anschluss
24:2:2 TR93-3816O RING
24:7 TR107-1701CAP VENT ASM
25 TR322-5Schraube
26 TR322-13SCREW-HH
28 TR105-7039-03Rahmen
30 TR107-4875ROD-BYPASS
31 TR1-806003HAARNADELSICHERUNG
32 TR108-9533HUB ASM
32:2 TR242-50Mutter
33 TR3217-6NUT-HEX
