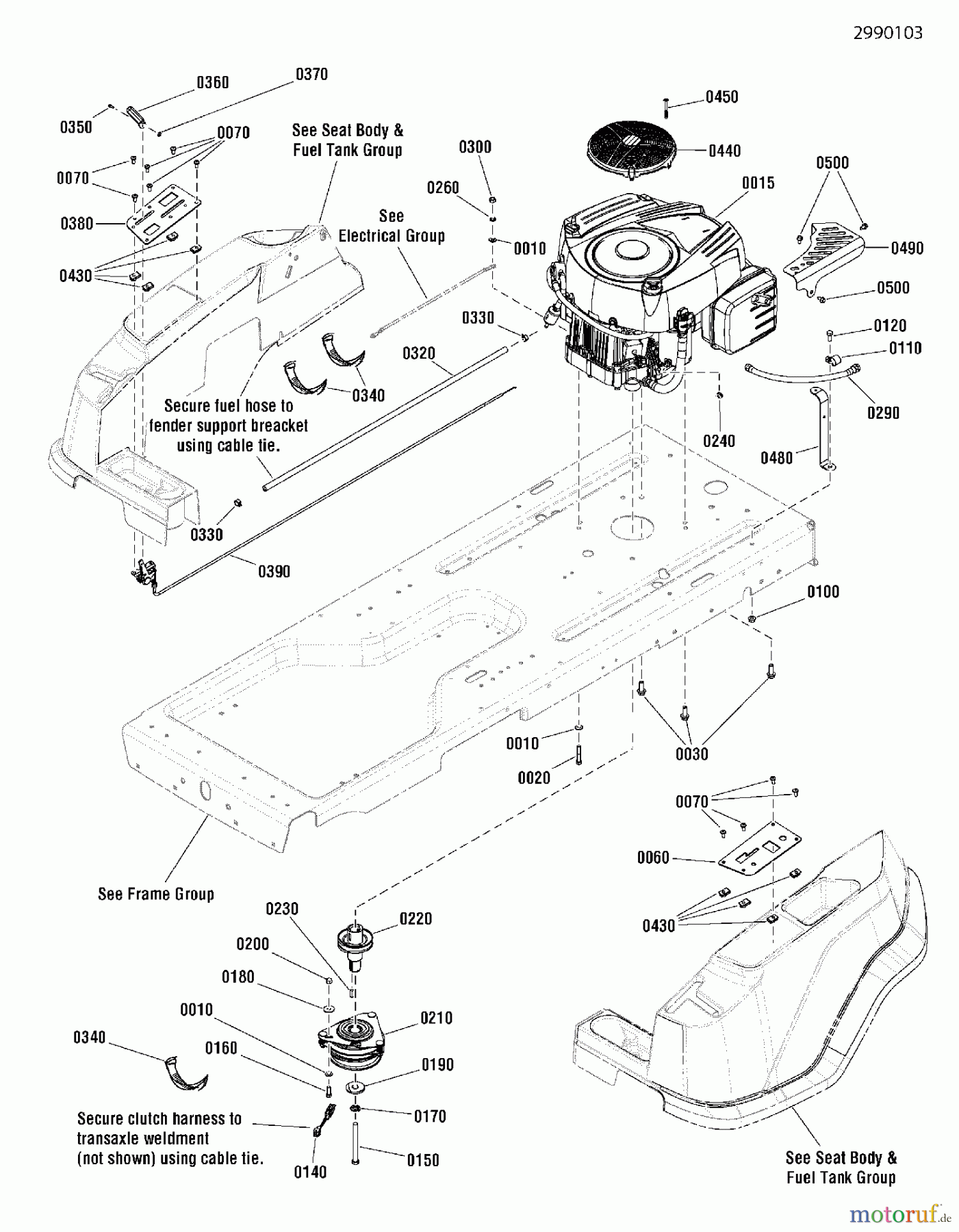

Snapper ZT2142 (2691031) - 42" Zero-Turn Mower, 21 HP, ZT Twin Stick Rider 200Z Series Engine Group, B&S 21HP Single w/Exhaust Listas de piezas de repuesto y dibujos

Engine Group, B&S 21HP Single w/Exhaust ZT2142 (2691031) - Snapper 42" Zero-Turn Mower, 21 HP, ZT Twin Stick Rider 200Z Series

Snapper Nullwendekreismäher, Zero-Turn ZT2142 (2691031) - Snapper 42
PosNúmero de artículoDescripción
0010 BS703350U-SCHEIBE, 5/16
0015 BS33M777-0126-G5
0015 BS33M977-0003-G5
0020 BS1922127SMCAPSCREW-HEX HD 5/16
0030 BS7090324SMHWST, 3/8C X1 BZ
0060 BS7301084BMYPPANEL, CONTROL, LH
0070 BS7090999SMTORXSCHRAUBE 1/4C X5/8
0100 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
0110 BS7900020SMKABELCLIP 5/8
0120 BS1921332SMCAPSCREW - HEX HD
0140 BS1737462YPVERBINDUNGSKABEL
0150 BS7092130SMHHCS, 7/16F X4-1/2, G
0160 BS7091904YPSECHSK.SCHRAUBE, 5/16 X 7/8
0170 BS704007LCKWSHR,7/16,SPLIT RE
0180 BS7011763SMWASHER, FENDER, 5/16
0190 BS7029138SMFW, .468X1.50X.19 YZ
0200 BS703164MUTTER
0210 BS1687746YPKIT, ELECTRIC CLUTCH
0220 BS7043343SMRIEMENSCHEIBE
0230 BS7016755YPKEIL, 1/4 X 3/4
0240 BS703233MUTTER, 1/4-20, GR5
0260 BS703116LCKWSHR
0290 BS1726498SMOLSCHLAUCH .375ID
0300 BS7091511SMMUTTER, 5/16C GR5 YZ
0320 BS7200140YPHOSE, FUEL
0330 BS7029900SMKLEMME 490 X .31
0340 BS7012080SMCABLE TIE, 7.0
0350 BS7091017YPSCREW, FIL.HEAD
0360 BS7103888YPKNOB, THROTTLE, RED
0370 BS7091018YPHN, #8C GR2B YZ
0380 BS7301093BMYPPANEL, CONTROL, RH
0390 BS7104695YPASSEMBLY, THROTTLE
0430 BS7023295SMBUNDMUTTER, 1/4C
0440 BS797418
0450 BS95957
0480 BS1754414
0490 BS1754173BMYP
0500 BS80002738
