Snapper ZT20500BV (5091001) - 50" Zero-Turn Mower, 20 HP, ZTR FastCut Series 0 50" Mower Deck - Roller Bar Group Listas de piezas de repuesto y dibujos

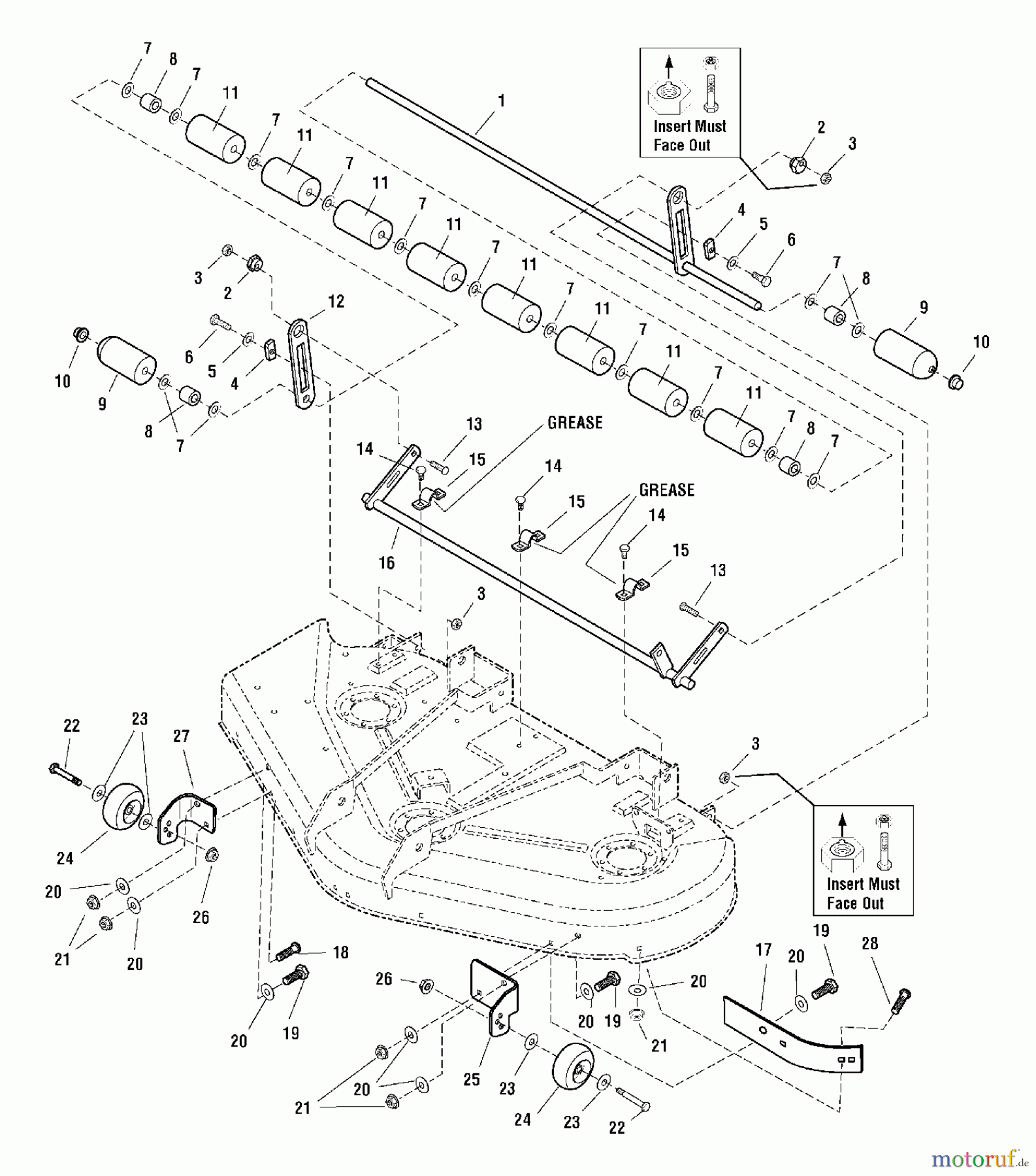

50" Mower Deck - Roller Bar Group ZT20500BV (5091001) - Snapper 50" Zero-Turn Mower, 20 HP, ZTR FastCut Series 0

Snapper Nullwendekreismäher, Zero-Turn ZT20500BV (5091001) - Snapper 50
PosNúmero de artículoDescripción
1 BS5048746CSMWELD,SHAFT,ROLLER,50
2 BS1704082SMMUTTER JUSTIERUNG .99
3 BS7960641
4 BS1677507SMSLIDE .803 X 1.7
5 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
6 BS2172622SMBOLT, SHLDR, 3/8-16
7 BS1924366SMWASHER-0.625(0.66IDX1
8 BS1709195SMDISTANZHULSE, .876 OD X .66
9 BS1722036SMROLLER, ROUNDED
10 BS1960520SMNUT-PUSH FOR .625 DIA
11 BS1668513SMROLLER
12 BS503849040
13 BS1931352SMBOLZEN 3 / 8
14 BS703228SCHRAUBE, 5/16-18 X .75
15 BS1665374SMSTRAP-1.00WD 3.06LG .
16 BS3848674
17 BS1724538ASMAUSWURFLEITBL. KURZ
18 BS5025145X8SMBOLT, 5/16-18 X 1", C
19 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
20 BS703302U-SCHEIBE, 5/16
21 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
22 BS2108765SMRADBOLZEN 3/8-16X2.7
23 BS1960027SMABZIEHER-SCHEIBE
24 BS1714760SMRAD AUFNAHME
25 BS1719852ASMBRACKET-WHEEL GAUGE L
26 BS703893NUT, CNTR LCK, 3/8-16
27 BS5049018C
28 BS5025145X6SMBOLT, 5/16-18 X 3/4",
