Echo PPF-211 - Pole Saw / Pruner, S/N: 02001001 - 02999999 Fancase, Clutch, Starter, Fuel System Listas de piezas de repuesto y dibujos

Fancase, Clutch, Starter, Fuel System PPF-211 - Echo Pole Saw / Pruner, S/N: 02001001 - 02999999

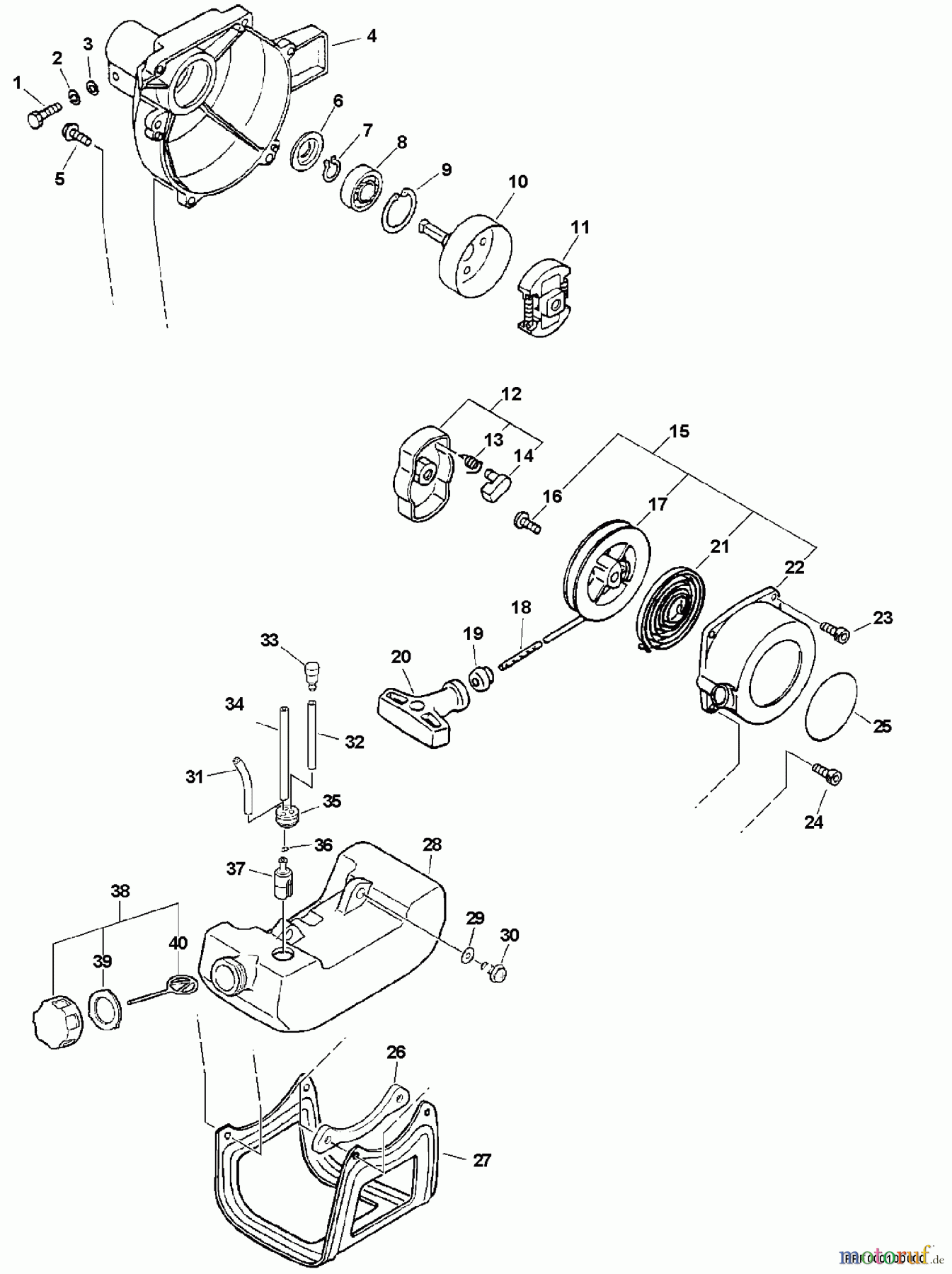

Echo Hochentaster PPF-211 - Echo Pole Saw / Pruner, S/N: 02001001 - 02999999 Fancase, Clutch, Starter, Fuel System
PosNúmero de artículoDescripción
1 16-900151-05025Schraube
2 16-900605-00005Scheibe PB-250/EC-7600
3 16-900600-00005Scheibe PB-500/452GS/DH2200ST
4 16-101511-44630Abdeckung PPT-2100, PPT-2400,
5 16-900163-04016Schraube
6 16-175053-04920Ring
7 16-900701-00012Seegerring außen 12mm
8 16-94054-06201Kugellager
9 16-900702-00032Seegerring, innen, 32mm
10 16-175005-42030Kupplungstrommel PPT-2100/-
11 16-175000-56831Kupplung SRM-220ES/T-226
12 16-177202-12220Starterklinke GT-2400, HC-1500
13 16-177234-12220Feder, Starterklinke RM-4000/
14 16-177218-44330Starterklinke SRM-2450/PB-
15 16-177200-42033Starter kpl. ES-2000/2100/
16 16-177236-44330Schraube CS-2600/ SRM-320/350/
17 16-177215-44430Seilscheibe SRM-2305/ES-2100/
18 16-177226-10120Starterseil PB-250
19 16-177227-42030Seilführung ES-2100/2400/HC-
20 16-177228-06530Startergriff ES-2100/2400/HC-
21 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
22 16-177232-42032Startergehäuse GT-2010 SRM-
23 16-900163-04016Schraube
24 16-900162-04020Schraube SHR-170SI, T-226
25 16-X502-000310Aufkleber
26 16-V150-001640Platte PPT-2400 ab S.-Nr.:
27 16-305110-42030Abstellbock PP-600, HCA-2500,
28 16A350000220
29 Echo Scheibe(Eisen) CS-2600/PB-250/16-900603-00005Scheibe(Eisen) CS-2600/PB-250/
30 16-900238-05020Schraube 5x20
31 16-132010-56330Überlaufleitung 9cm CS/ES/GT/
32 16-V471-001200Leitung(Gummi) CS-3000, CS-
33 16-A356-000031Ventil Tankbelüftung PAS-2400/
34 16-V471-001190Benzinleitung (Gummi) SRM-
35 Echo Dichtring HC-1500/HCR-1500/16-132115-46730Dichtring HC-1500/HCR-1500/
36 16-132013-09820Clip CS-2600/-3700/SRM-250/GT-
37 16-131205-07321Benzinfilter CS-3500/2600,SRM-
38 16-131004-55530Tankdeckel, komplett EA-410/
39 16-131016-55830Dichtung Tankdeckel SRM-320/
40 16-131051-56030Sicherung, Tankdeckel EA-410/
