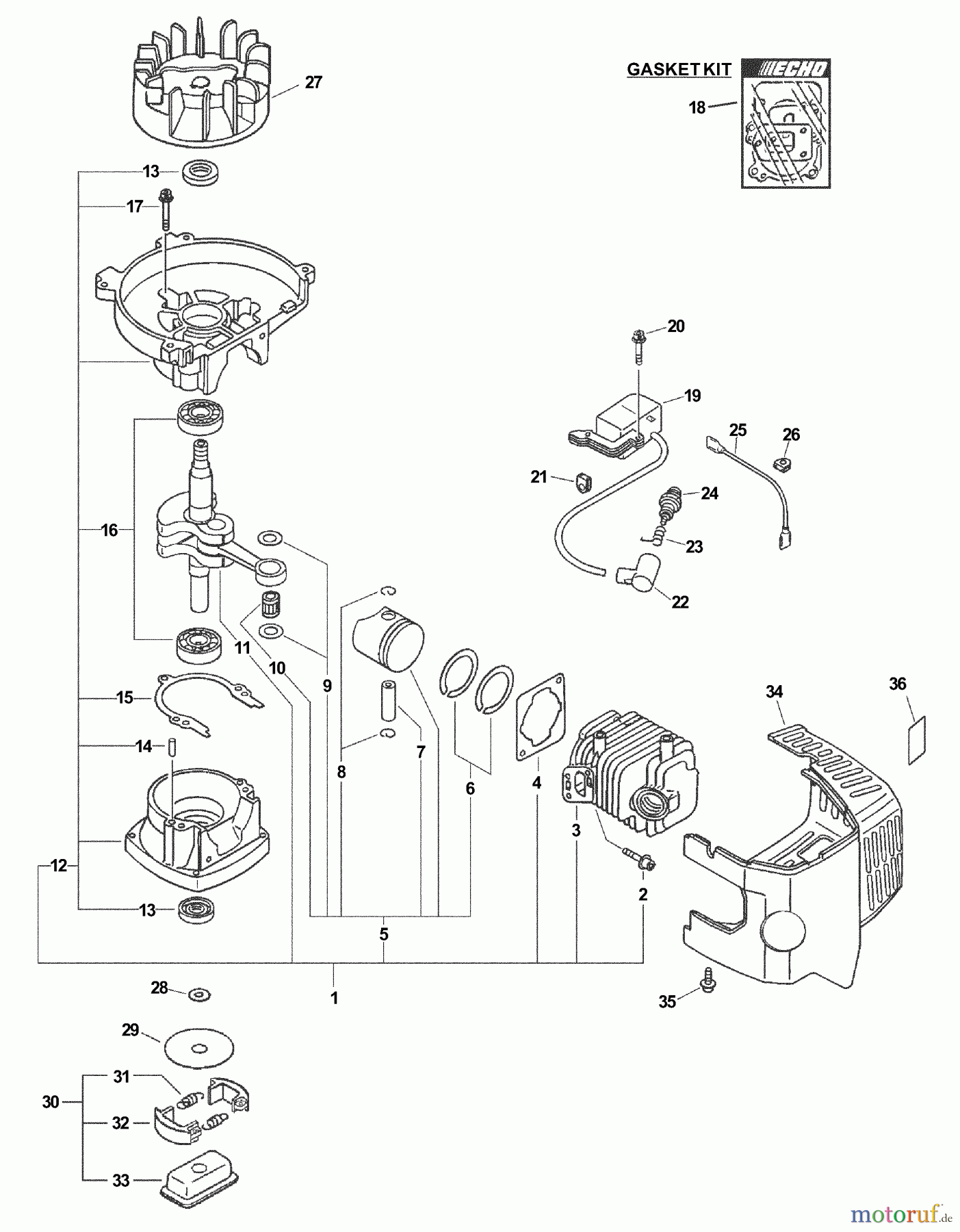

Echo HC-151 - Hedge Trimmer, S/N: 02001001 - 02999999 Engine, Short Block, Ignition, Cylinder Cover Listas de piezas de repuesto y dibujos

Engine, Short Block, Ignition, Cylinder Cover HC-151 - Echo Hedge Trimmer, S/N: 02001001 - 02999999

Echo Heckenscheren HC-151 - Echo Hedge Trimmer, S/N: 02001001 - 02999999 Engine, Short Block, Ignition, Cylinder Cover
PosNúmero de artículoDescripción
1 1699999999999
2 16-900162-05022Schraube CS-3500,-3501,SRM-
3 16A130000101
4 16V100000020
5 16-P021-001112Kolben HC-1500/1600 HCR-1500/
6 16-A101-000000Kolbenring GT-2150, EDR-2100
7 16-100013-11520Kolbenbolzen SHR-170SI/T-226
8 16-100015-04630Sicherungsring(Eisen) CS-2600/
9 16-100014-08960Distanzring CS-2600
10 16-100113-05930Nadellager HC-2400, HCR-1500,
11 16A011000232
12 1616
13 Echo Simmerring/T-226 PB-2400/SRM-16-100212-42031Simmerring/T-226 PB-2400/SRM-
14 16-V622-000020Stift
15 16-100242-42030Dichtung/T-226 WP-1000/ES-
16 16-94035-36201Kugellager EA-410/SHR-170SI
17 16-900162-05028Schraube SHR-170SI/PB-250/T-
18 16-P021-001612Vergaserdichtung HC-341ES
19 1615660152131
20 16-900162-04022Schraube (10)
21 16-156110-04920Buchse CS-2600/PB-250
22 16-159012-01620Zündkerzenkappe SRM-2010, CS-
23 16-159011-03432Kontaktfeder CS-2600/4200/PB-
24 1699944500071
25 16-V485-001080Kabel CS-310ES
26 16-156114-04920Muffe CS-4500/HCR-1500/RM-/
27 16-156801-05360Polrad
28 16-175014-05360Scheibe HC-2400, HCR-1500
29 16-175019-04920Kupplungsplatte
30 16-175000-06560Zsb.Kupplung HC-1500, HCR-
31 16-175018-05960Kupplungsfeder HC-2100/HCR-
32 16-175009-05131Kupplungsbacken HC-2100, HCR-
33 16-175016-04920Nabe
34 16A160000151
35 16-900162-04020Schraube SHR-170SI, T-226
36 16-X505-002310Aufkleber, Vorsicht SRM-265ES/
