> Ride-on Mowers > Scooter > SV > Scooter SV 4 > upper frame, steering mechanism

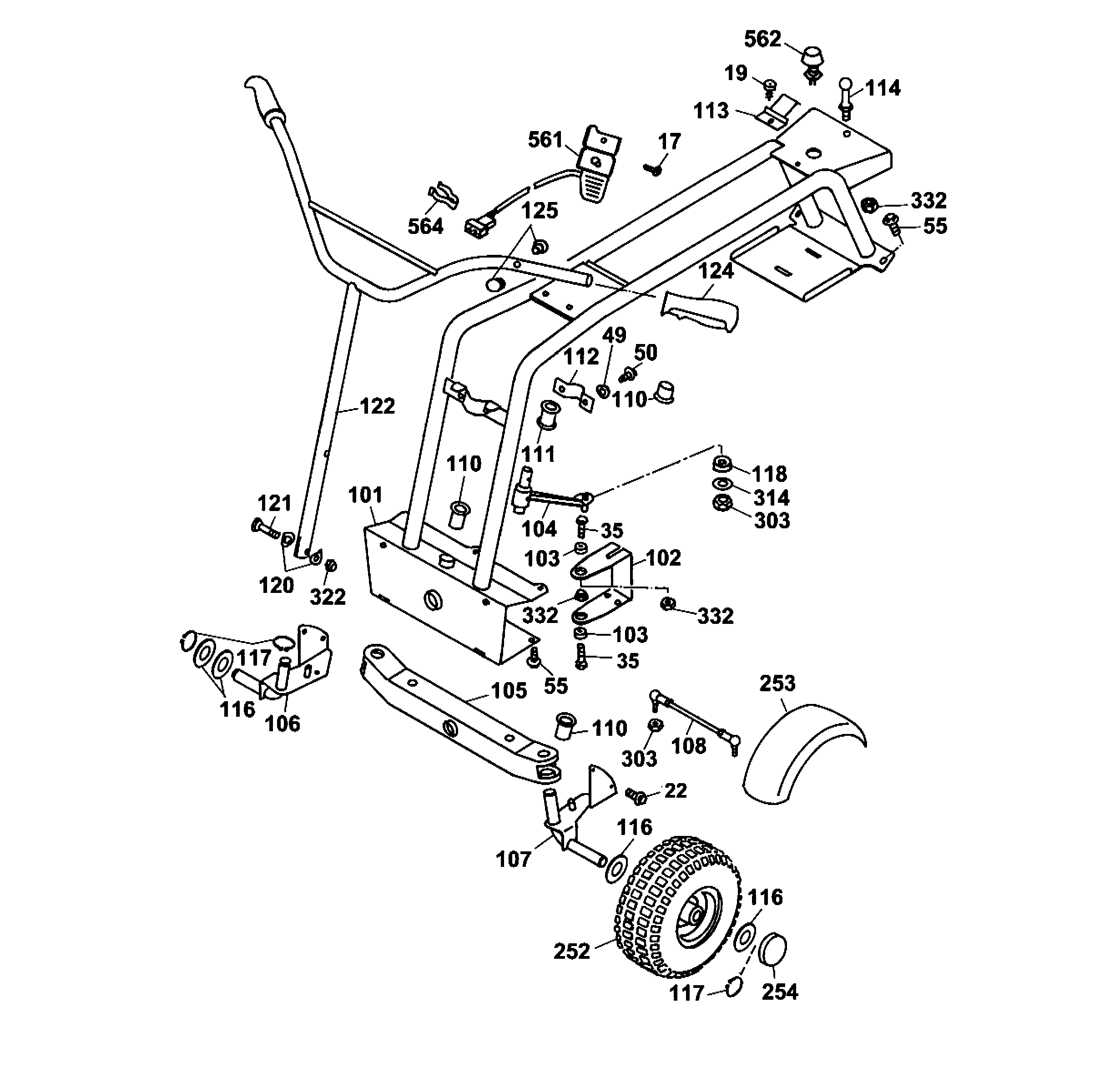

Lista de repuestos para Wolf Ride-on Mowers upper frame, steering mechanism




Lista de repuestos


pos.descripciónNúmero de pieza
17Screw0012 625
19Self Drilling Screw 4,2X13-Din 7504K Ecodrill0015 821
22Body-Bound Rivet6110 315
35Screw0010 365
49Washer Spring0017 908
50Hex. Screw M6X10 Din 9330010 373
55Screw0010 892
101Upper Frame6150 010
102Lever6150 492
103Bush, Flanged6150 473
104Starter Dog6150 077
105Front Axle Complete With Bushes6150 910
106kingpin assembly, right6150 510
107kingpin assembly, left6150 512
108Track Rod Assembly6150 035
110Flanged Bush6150 316
111Flanged Bush6550 319
112Clamp Bracket6150 431
113Coach Spring6150 462
114Seat Pintle6150 457
116Washer0017 113
117Quick Fixing Clip0020 018
118Steering Bush6150 474
120Friction Disk6150 182
121Screw0010 301
122Steering Column Assembly6995 032
124Handle Pair6155 305
125Body-Bound Rivet6155 312
252Front Wheel 'Kenda' Or 'Maxtrac'6150 040
***Inner Tube6150 324
***Tyre Only6150 325
253Mudguard6150 304
254Cover6150 328
303Hex. Nut0016 312
314Washer0017 291
332Nut0016 311
561Push-Button Switch6990 053
562Seat Contact Switch6990 062
564Cable Clamp4950 307
