> Ride-on Mowers > Scooter > SV > Scooter SV 4 > front panel, covers

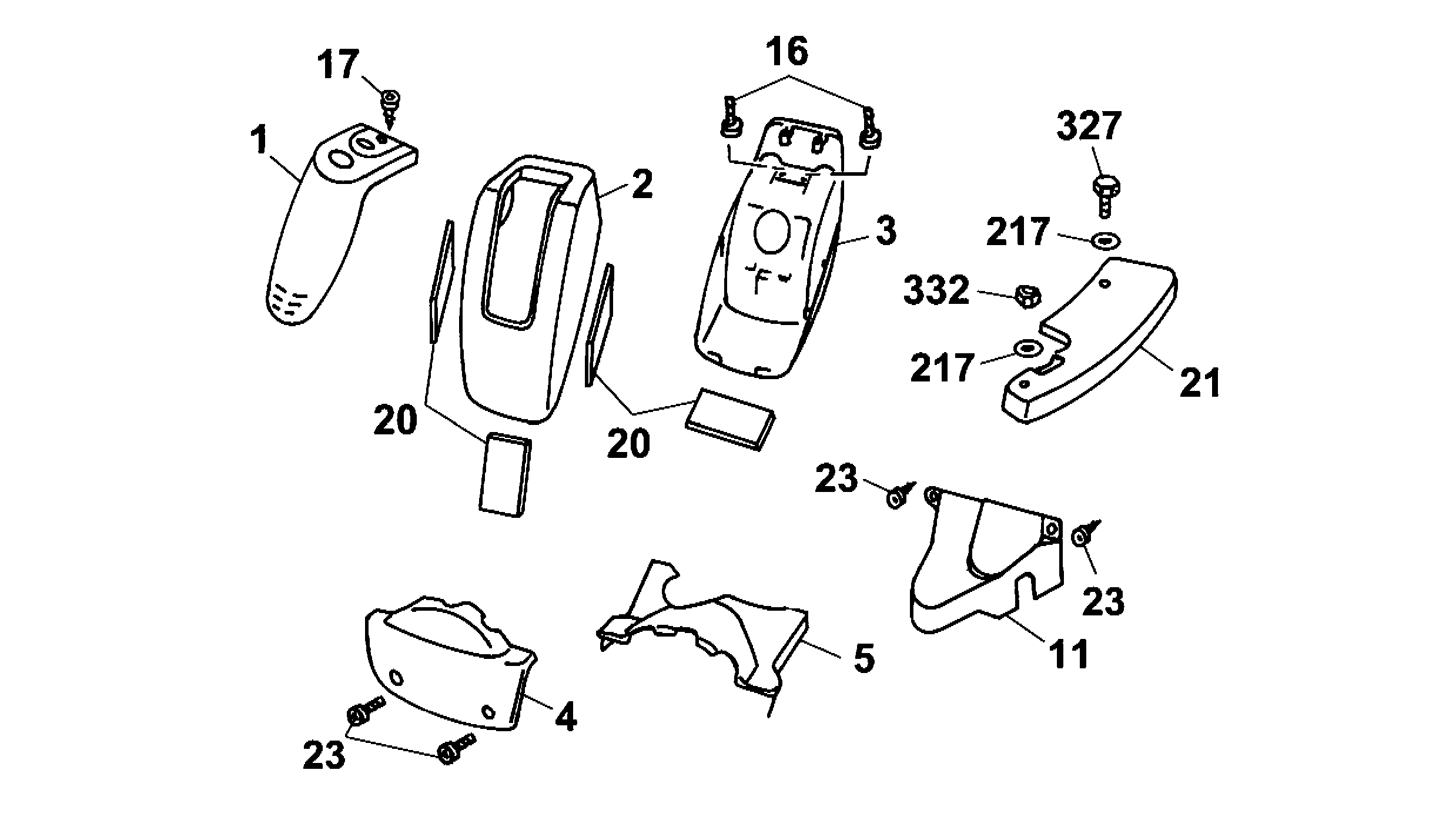

Lista de repuestos para Wolf Ride-on Mowers front panel, covers




Lista de repuestos


pos.descripciónNúmero de pieza
1Centre Nose Panelyellow6155 302
2Upper Nose Panel, Red6150 301
2Upper Nose Panel, Blue6160 301
***Wolf-Garten0051 123
***Label6160 203
***Wolf-Garten0051 122
***Label6150 207
***Label6990 205
3Lower Nose Panel, Red6150 300
3Lower Nose Panel, Blue6160 300
4Front Panel, Red6150 312
4Front Panel, Blue6160 312
5Steering Cover Panel6155 313
5Steering Cover Panel, Blue6161 313
11Front V-Belt Cover, Red6155 314
11Front V-Belt Cover, Blue (Moto Verte)6161 314
16Screw0010 893
17Screw0012 625
20Foamed Material6150 330
21Cover6155 315
23Screw0015 820
217Washer0017 289
327Screw0010 374
332Nut0016 311
