> Mowers > Petrol > Without drive from 43 cm on > Concept > Concept 43 K "KIR" > Motor, Frame, Blade

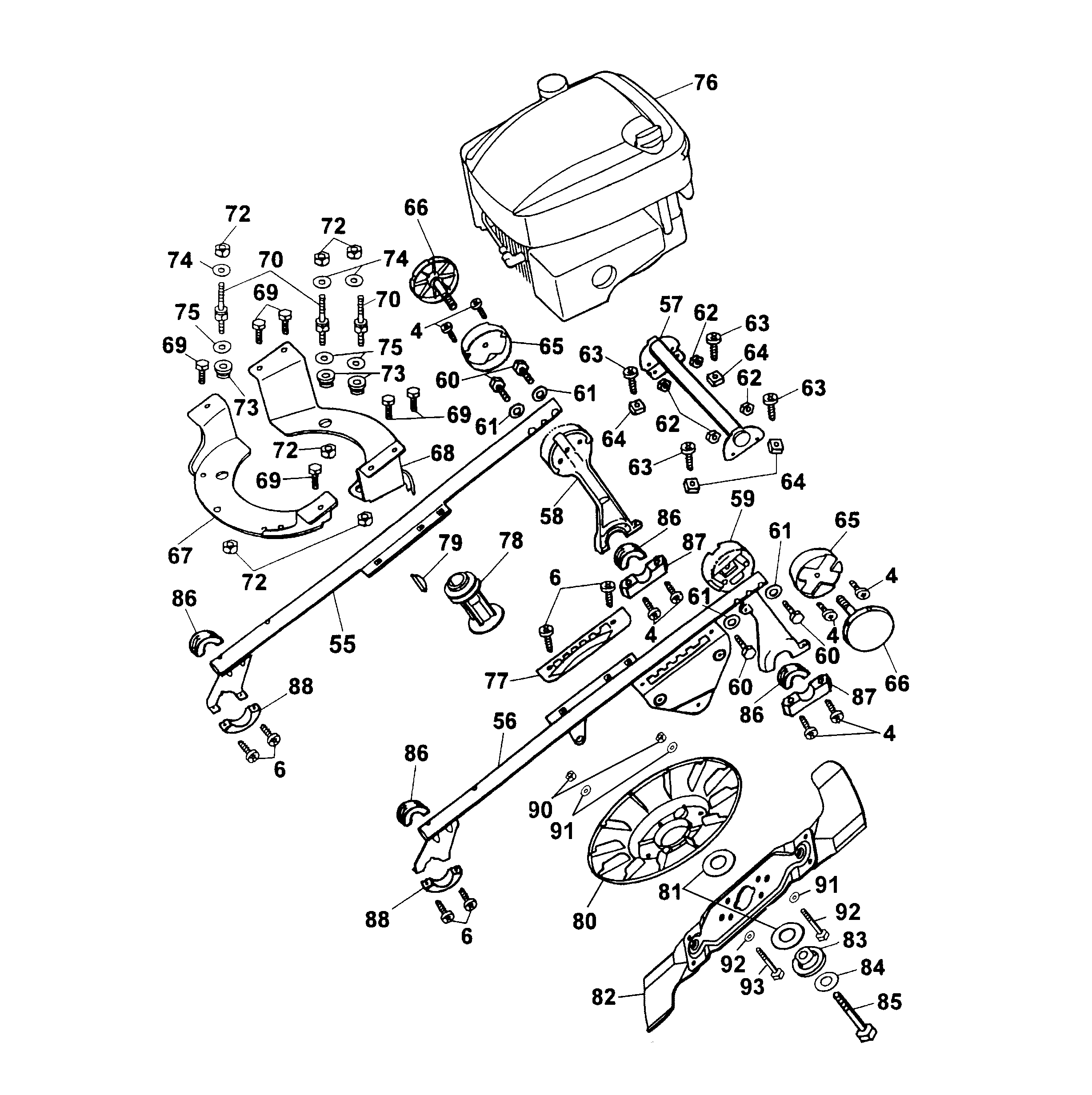

Lista de repuestos para Wolf Mowers Motor, Frame, Blade




Lista de repuestos


pos.descripciónNúmero de pieza
4Screw M 5X200012 607
6Screw 5X120012 605
55Frame, Right6450 010
56Frame, Left6450 012
57Tie-Bar6450 014
58Handlebar Holder, Right6450 100
59Handlebar Holder, Left6450 102
60Hex Screw M6X45 Din 931 8.80010 313
61Friction Disk6150 182
62Nut0016 311
63Screw M 6X150012 831
64Square Nut0016 405
65Fixing Case6450 188
66Handwheel4317 010
67Motor Support, Front6450 112
68Motor Support, Back6450 114
69Hex. Screw M 6X120010 386
70Stud Bolt, Short6450 170
72Hex. Nut0016 312
73Rubber Buffer6450 319
74Bush6450 138
75Washer0017 291
76Motor2090 065
77Crank6450 136
78Clutch-Drive6450 141
79Key0029 130
80Fan-Flywheel6450 317
81Clutch Facing4005 403
82Cutter Bar Compl. Vi-W434350 094
***Replacement blades VI-W (1 pair)4350 040
83Coupling Disk4840 402
84Friction Washer0017 105
85Screw0010 264
86Bearing Shell6450 309
87Shell, Rear6430 323
88Front Support Shell6450 305
90Nut0016 311
91Washer0017 110
92Washer0017 289
93Screw0010 365
