Concept
>
Concept 43 K "KIR"
>
Chassis

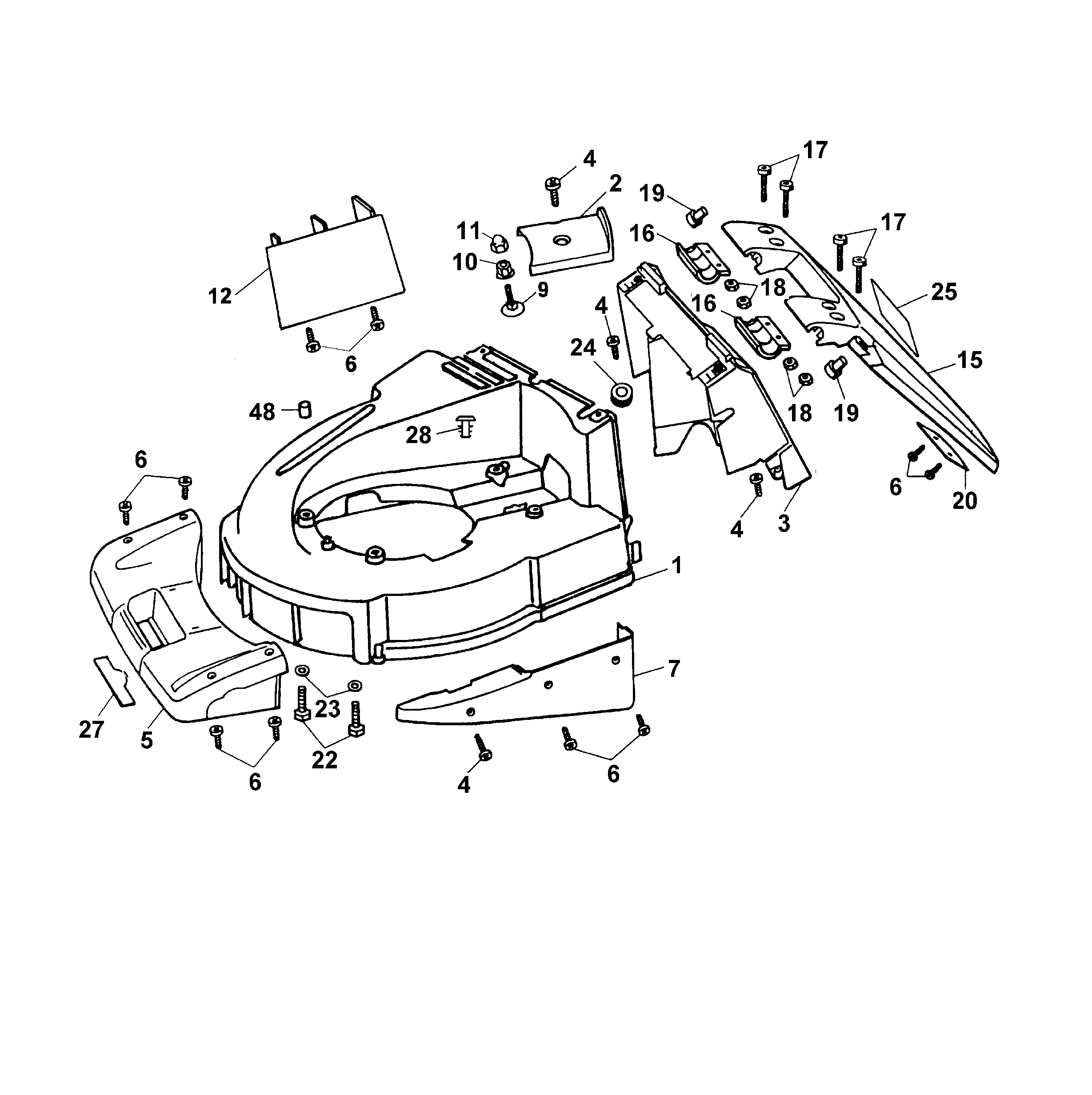

Lista de repuestos para Wolf Mowers Chassis
pos.
descripción
Número de pieza
1
Chassis
4345 974
2
V-Belt Cover
6450 307
3
Deflector
6450 340
4
Screw M 5X20
0012 607
5
Front Panel
6450 302
6
Screw 5X12
0012 605
7
Cover, Left
6450 304
9
Screw
0013 650
10
Nut
0016 385
11
Sleeve M 8
6340 126
12
Wind Tunnel Insert
4350 303
15
Rear Flap
6450 911
16
Clamp-Casing
6450 311
17
Screw M5X40
0012 825
18
Hex. Nut M 5
0016 210
19
Rubber Buffer
6450 316
20
Counterweight
6450 149
22
Hex Screw M8X30 Din 933 8.8
0010 399
23
Washer A 8,4 Din 125
0017 123
24
Rubber Funnel
6450 314
25
Safety Label
0051 246
27
Wolf-Garten - Label
0051 115
28
Lamellar Plug
4332 307
