> Mowers > Electro > Without drive up to 38 cm > Esprit > NCA > Motor, Blade

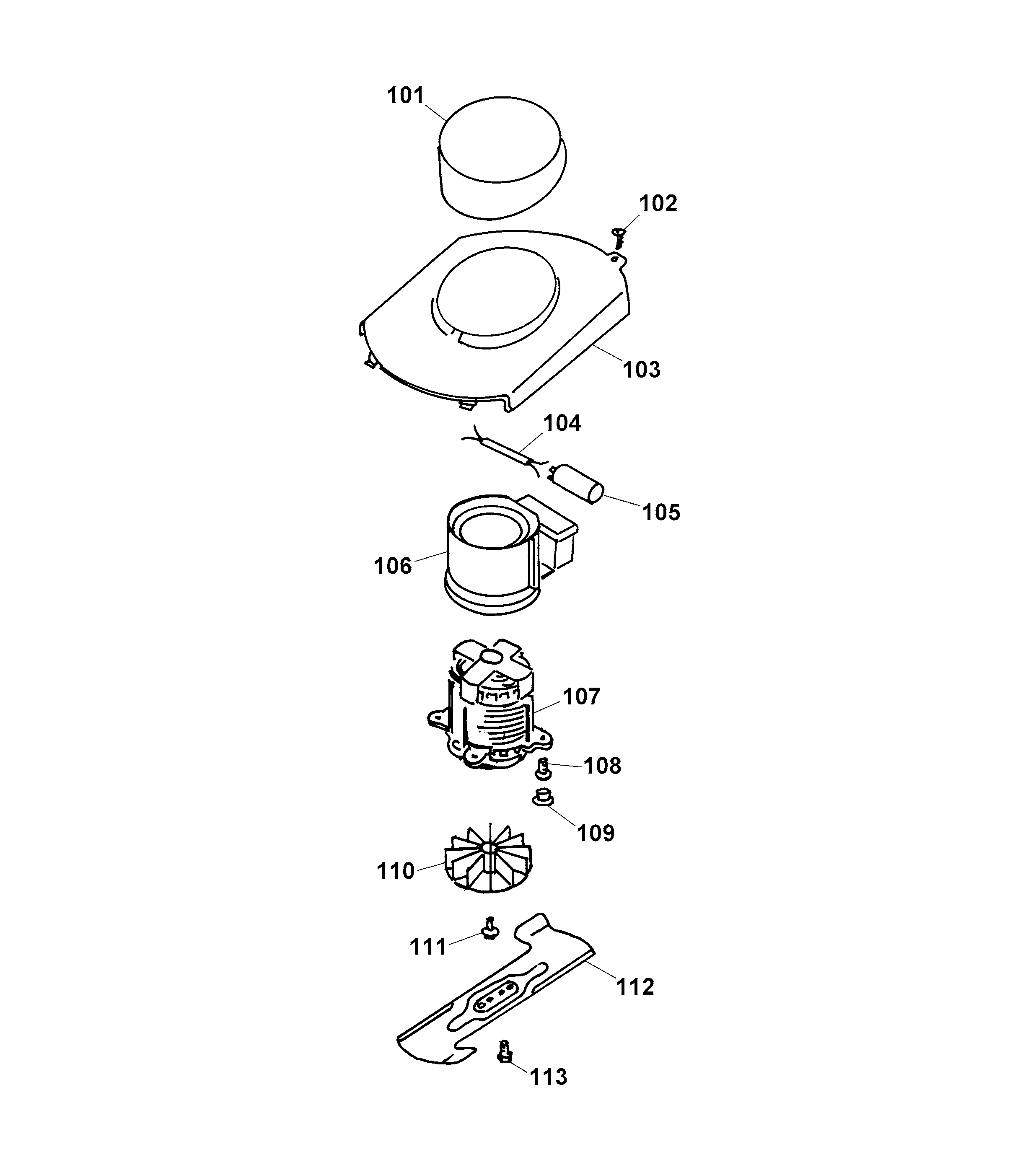

Lista de repuestos para Wolf Mowers Motor, Blade




Lista de repuestos


pos.descripciónNúmero de pieza
101Motor Covering4936 305
102Screw0012 625
103Chassis Cover4906 302
104Wire Connector3567 214
105Condenser 12Uf1117 040
106Air-Conduction4932 308
***Bearing Shield1105 100
***Upper Bearing Shield1140 110
***Brake Spring1142 157
***Brake1142 158
107Motor1141 005
108Screw0012 952
109Insert-Grip4936 308
110Fan Complete4916 052
111Screw0010 680
112Blade4936 090
113Hex. Screw M6X160010 366
