> Mowers > Electro > Without drive up to 38 cm > Esprit > NCA > Handlebar compl.

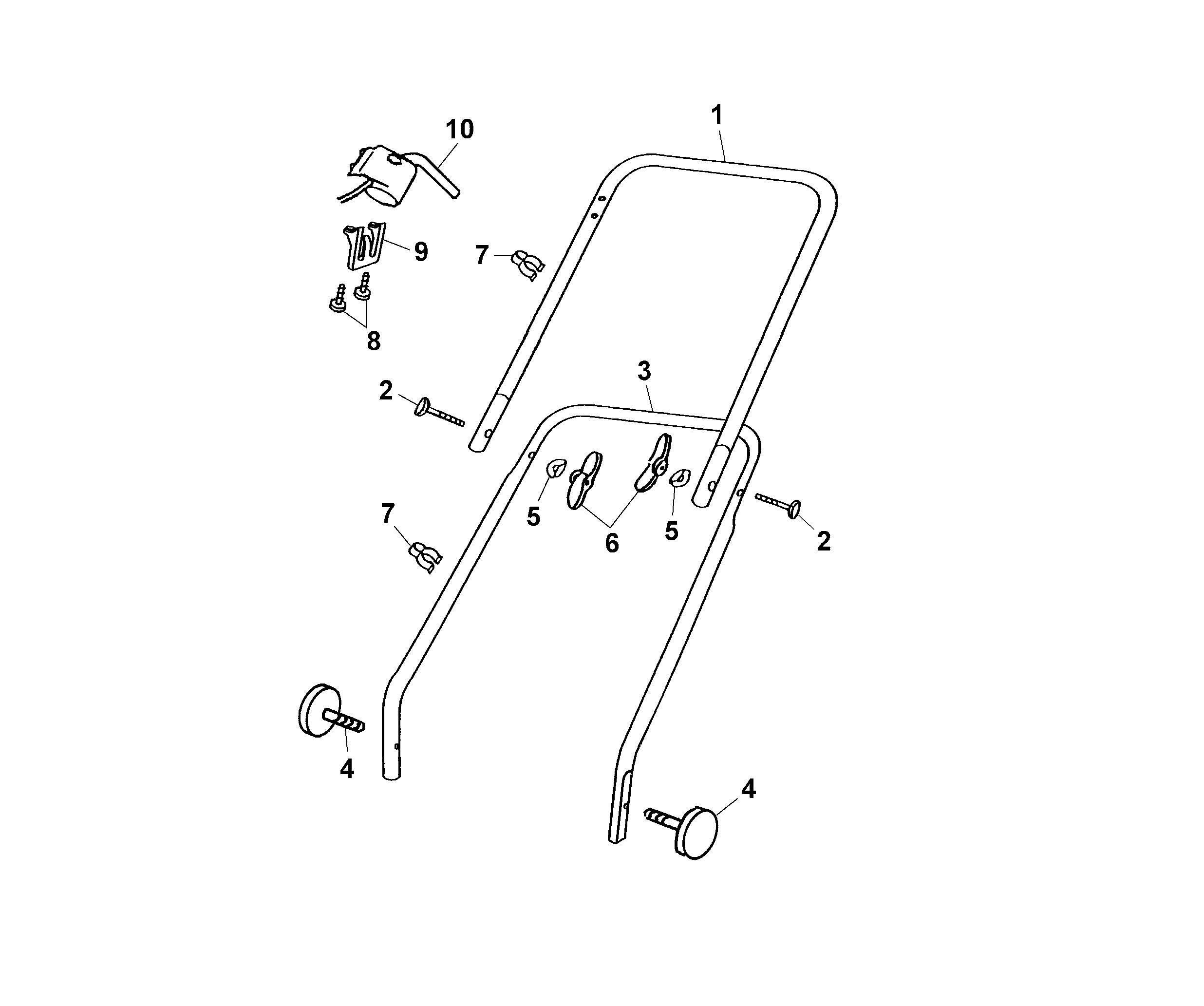

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
1Upper Handlebar4906 020
2Connecting Screw4901 101
3Lower Handlebar4906 112
4Handwheel4950 010
5Hollow Disk0017 275
6Wingnut0016 717
7Cable Clamp4950 307
8Screw0012 883
9Strain Relief3620 325
***Strain Relief Switzerland Only4901 325
10Switch-Key3630 061
***Switch Switzerland Only4961 053
***Poly Bag With Self-Assembly Parts4906 034
***Instruction Manual0054 233
