Handlebar parts

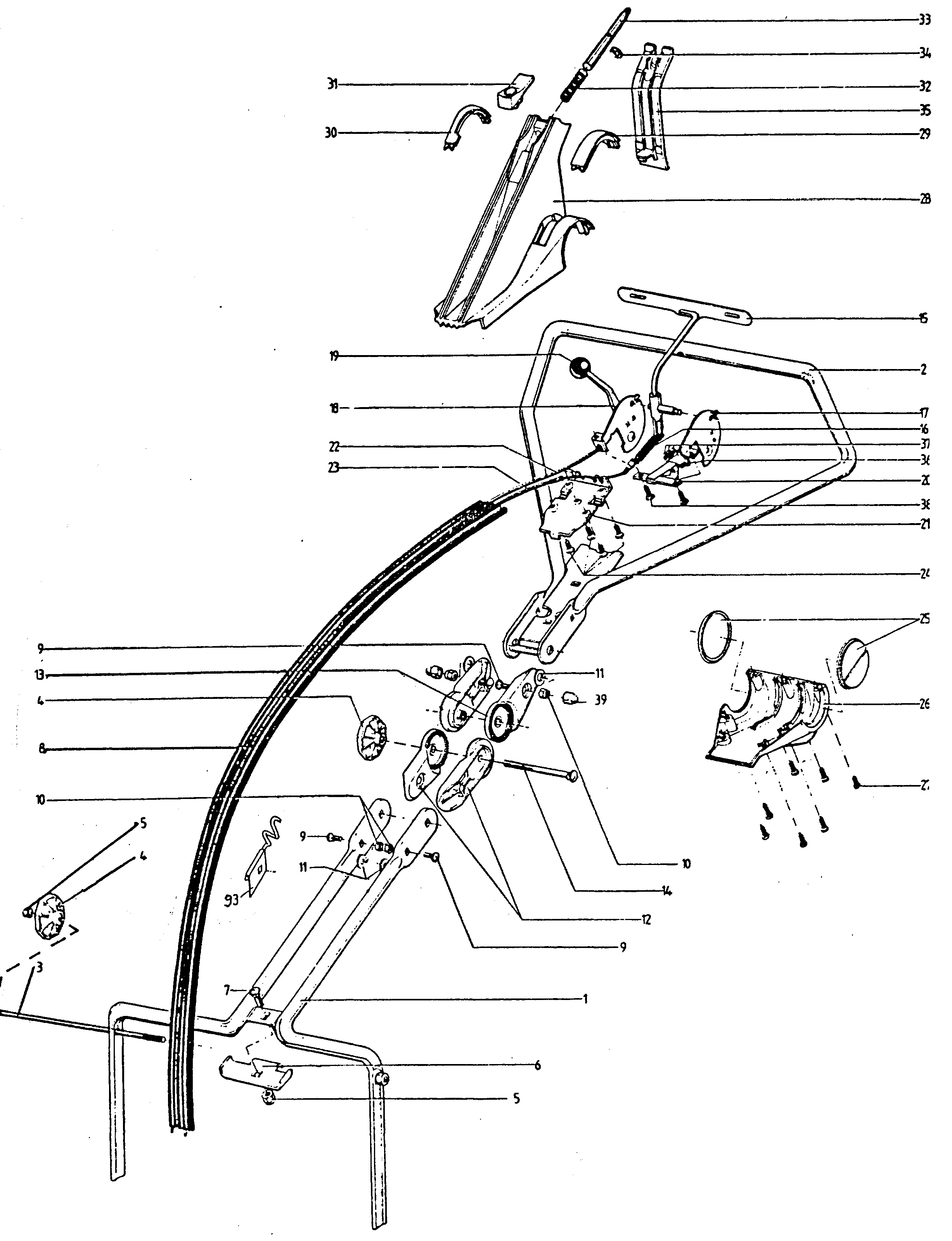

Lista de repuestos para Wolf Mowers Handlebar parts
pos.
descripción
Número de pieza
1
Handlebar
6905 011
2
Upper Handlebar
6912 012
3
Connecting Bar
6905 101
4
Handwheel
6905 102
5
Hex. Nut
0016 312
6
Clamp
6905 103
7
Screw
0013 650
8
bend protection
6912 105
9
Screw
0013 639
10
Nut
0016 311
11
Washer
0017 121
12
Bracket6.51Ba
6905 107
13
Bracket6.51Ba
6905 112
14
Screw
6905 110
15
Bracket Bracket
6912 104
16
Rod
6912 103
17
Plate-Carburetor
6912 102
18
Throttle Lever
6912 101
19
Button
4277104
20
Connector
6912 106
21
Plate-Carburetor
6912 107
22
Bowden Wire
6912 108
23
Cable (Drive)
6912 109
24
Screw
0012 897
25
Cover
6912 110
26
Handle Insulator
6912 111
27
Screw
0012 888
28
Upper Casing6.46Ba
6912 112
29
Cover
6905 111
30
Cover
6912 113
31
Button
6912 114
32
Spring
6912 115
33
Locking Bar
6912 116
34
Lock Washer
0022 412
35
Cover
6912 117
36
Screw
0015 684
37
Washer
0017 286
38
Screw
0012 897
39
Cap
6905 211
