volver a
>
Mowers
>
Petrol
>
Drive from 43 cm on
>
series 4
>
4.46 BA
>
Gear

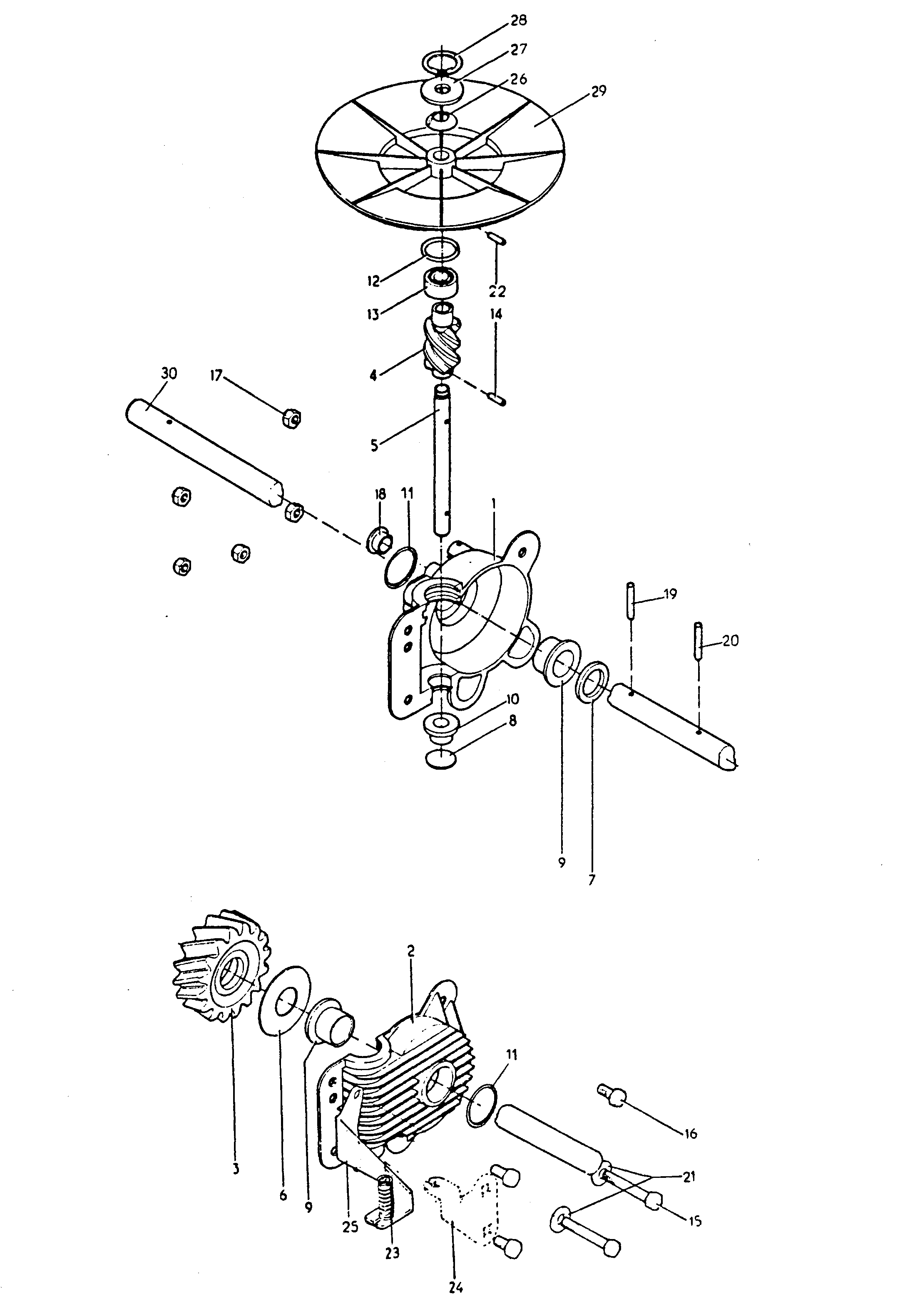

Lista de repuestos para Wolf Mowers Gear
pos.
descripción
Número de pieza
1
Case
6910 500
2
Case
6910 501
3
Wheel
1095 500
4
Gear6.51Ba
6910 502
5
Axle
6910 503
6
Washer
4253 208
7
Washer
6910 504
8
Washer
1095 205
9
Bush
6910 505
10
Bush
1095 202
11
Gasket
6910 506
12
Gasket
6910 507
13
Bearing
6910 508
14
Split Pin
0018 895
15
Screw
6910 511
16
Screw
0010 374
17
Nut
0016 311
18
Bush
6910 509
19
Spring Pincart
0018 806
20
Dowel Pin
0018 809
21
Washer
6910 510
22
Roll Pin6.51Ba
0018 877
23
Spring
6910 512
24
Arm
6910 513
25
Arm
6910 514
26
Washer
0017 834
27
Washer 10,5-Din 125A
0017 124
28
Quick Fixing Device
0020 008
29
Pulley-Camshaft
6910 515
30
Axle
6910 516
****
Gear
6910 055
