> Mowers > Petrol > Drive from 43 cm on > Concept > Concept 43 BAM "KIR" > Handlebar compl.

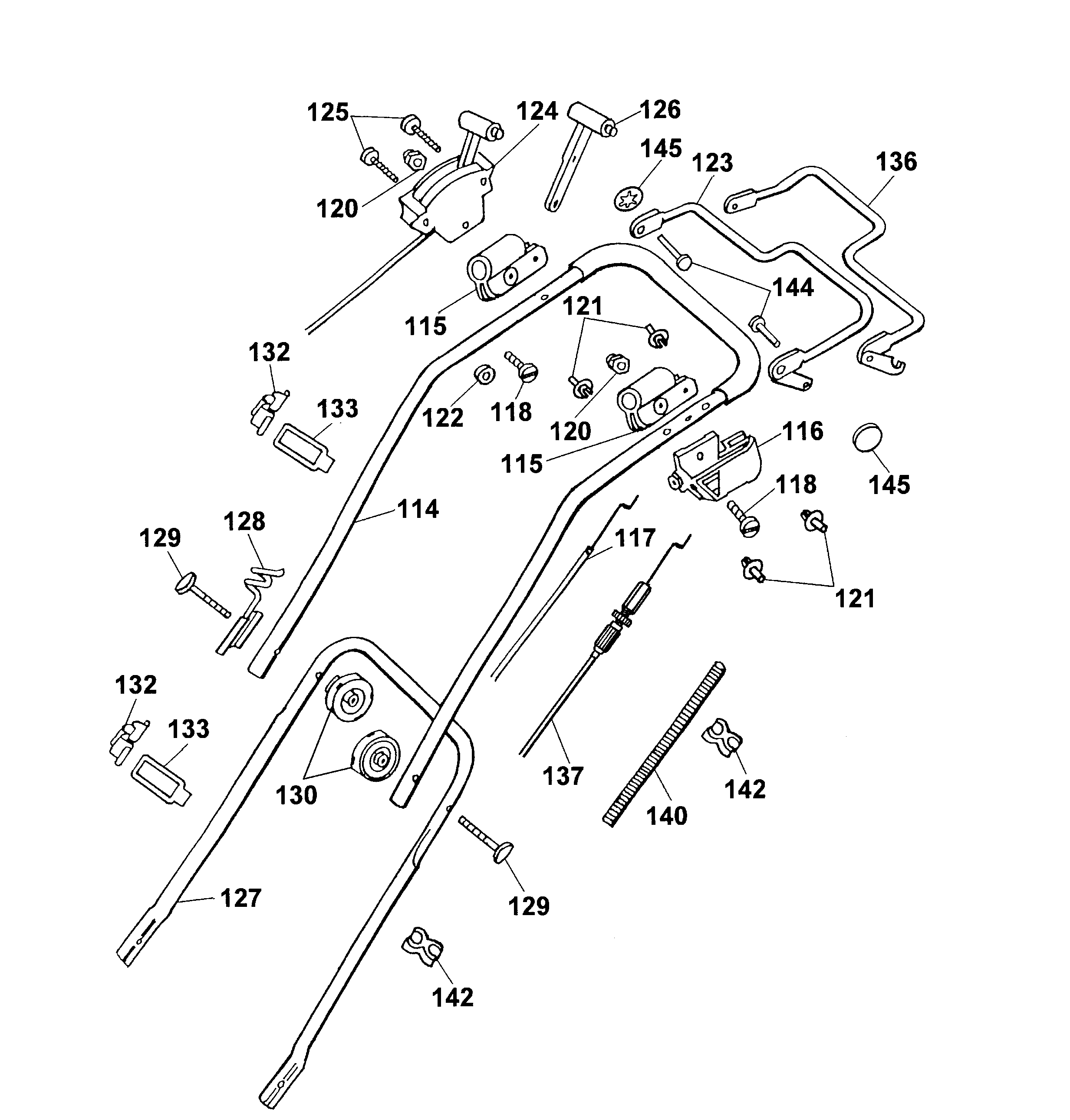

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
114Upper Handlebar6450 923
115Clamp-Casing4720 105
116Double Support4015 306
117Bowden Wire6450 056
118Screw0012 211
120Nut0016 641
122Distance Disc4240 205
124Bag With Accessories6470 025
125Screw0012 886
126Adjusting Lever4722 040
127Lower Handlebar4317 122
128Guide-Rope6340 014
129Connecting Screw4901 101
130Handwheel4936 022
132Clip6340 312
133Strap6340 314
136Lever4015 035
137Bowden Wire Driving4350 053
140Pipe6450 318
142Clamp6660 301
144Bolt0018 107
145Clip3585 503
190Holder For Coupling Lever6470 030
192Holder For Coupling Lever6470 014
193Bush6470 116
194Damping ring6470 315
195Quick Fixing Device0020 008
196Screw0012 625
197Coupling Lever6470 018
198Bolt6470 118
199Compression Spring6470 117
200Circlip0022 407
***Instruction Manual0054 343
