> Mowers > Petrol > Drive from 43 cm on > Concept > Concept 43 BAM "KIR" > Axle, Wheels, Height-adjustment

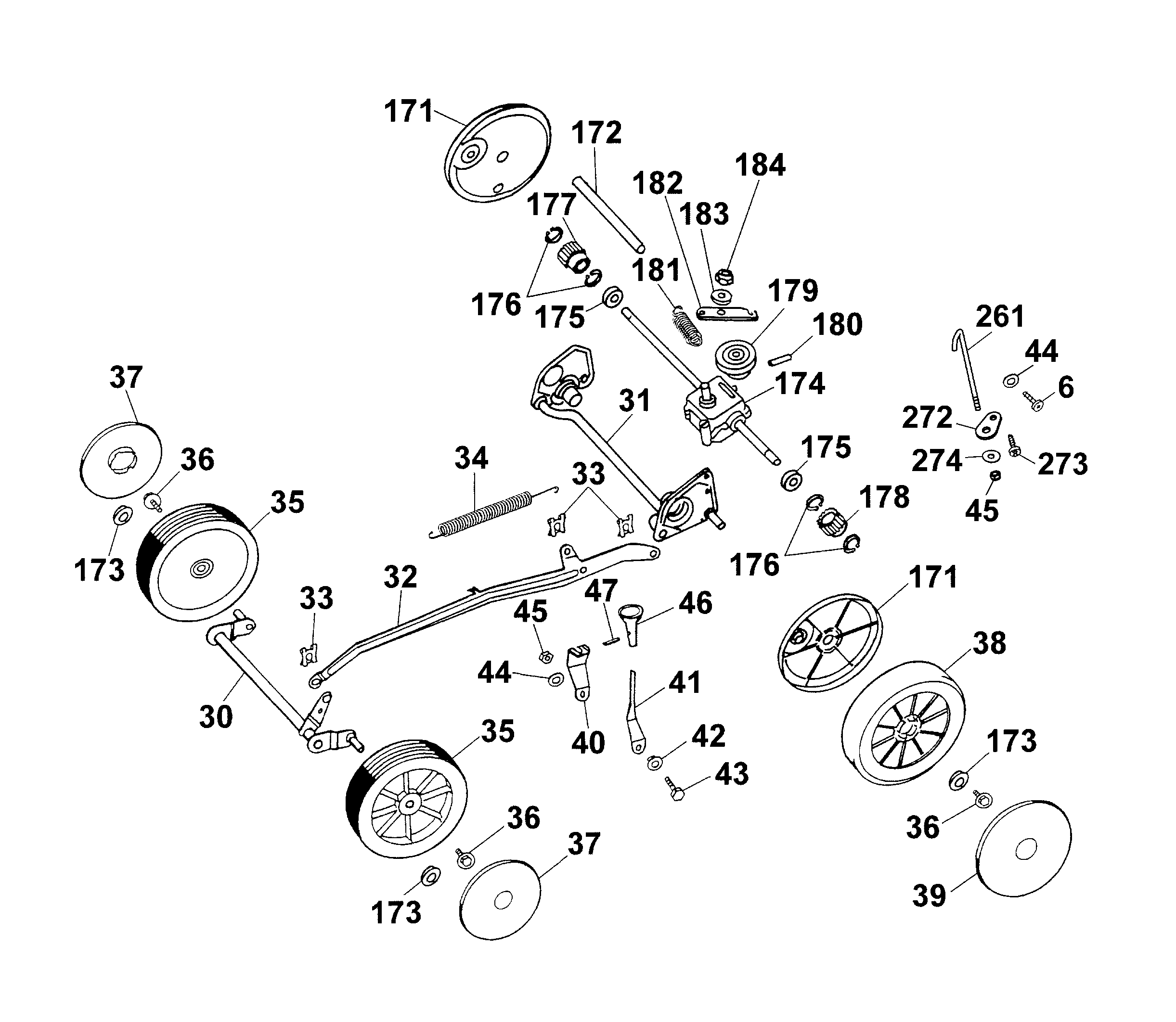

Lista de repuestos para Wolf Mowers Axle, Wheels, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
6Screw 5X120012 605
30Axle Front6450 016
31Driving Axle6450 038
32Rod6450 020
33Retaining Clip0020 983
34Tension Spring6450 139
35Wheel ø 170 mm6440 050
36Screw0010 893
37Cover ø 170 mm6450 520
38Driving Wheel 200 Mm Dia.4605 050
39Cover ø 200 mm6450 530
40Lever6450 134
41Spring Lever6450 132
42Bush6450 146
43Hex. Screw M 6X200010 377
44Washer0017 289
45Nut0016 311
46Height Adjusting Knob6450 313
47Dowel Pin 3X200018 813
171Hub Cap4955 327
172Protecting Tube4605 328
173Bearing6340 516
174Gear1097 050
175Bearing0023 147
176Circlip0020 010
177Coupling Pinion, Right4725 025
178Coupling Pinion, Left4725 026
179V-Belt Pulley1097 201
180Dowel Pin1097 202
181Spring1097 205
182Lever1097 200
183Washer0017 120
184Hex. Nut0016 310
261Connecting Element4015 100
272Bracket - Air4005 101
273Screw0012 631
274Washer0017 121
