> Mowers > Electro > Without drive from 40 cm on > Esprit > Esprit 40 E > Handlebar, Switch

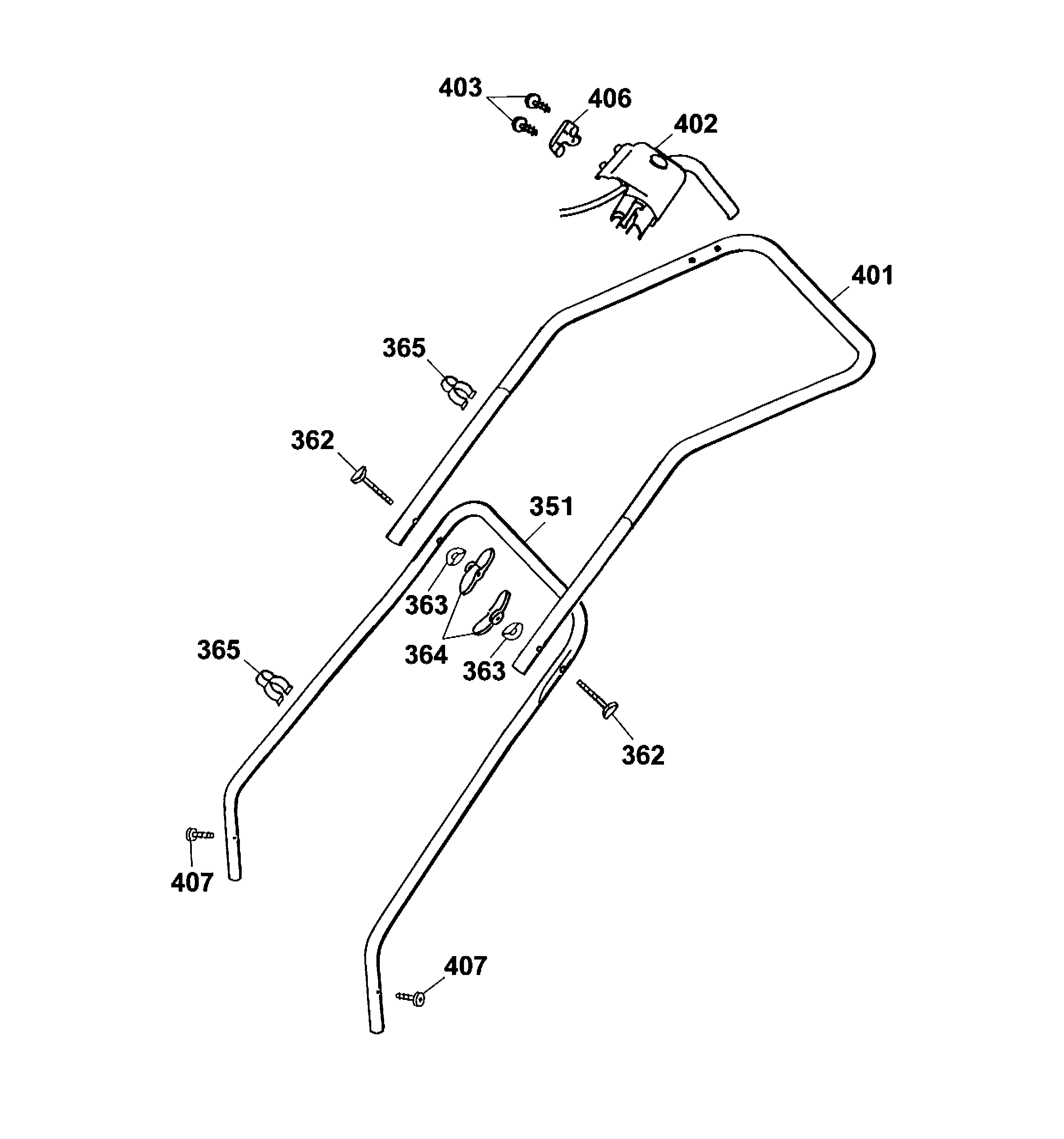

Lista de repuestos para Wolf Mowers Handlebar, Switch




Lista de repuestos


pos.descripciónNúmero de pieza
351Lower Handlebar4961 120
362Connecting Screw4901 101
363Hollow Disk0017 275
364Wingnut0016 717
365Cable Clamp4950 307
401Upper Handlebar4961 023
402Switch-Key4961 051
402Switch Switzerland Only4961 053
403Screw0012 883
406Strain Relief Switzerland Only4901 325
407Screw0015 660
***Instruction Manual0054 225
***Poly Bag With Self-Assembly Parts4020 025
