> Mowers > Electro > Without drive from 40 cm on > Esprit > Esprit 40 E > Covering cap, Motor, Blade

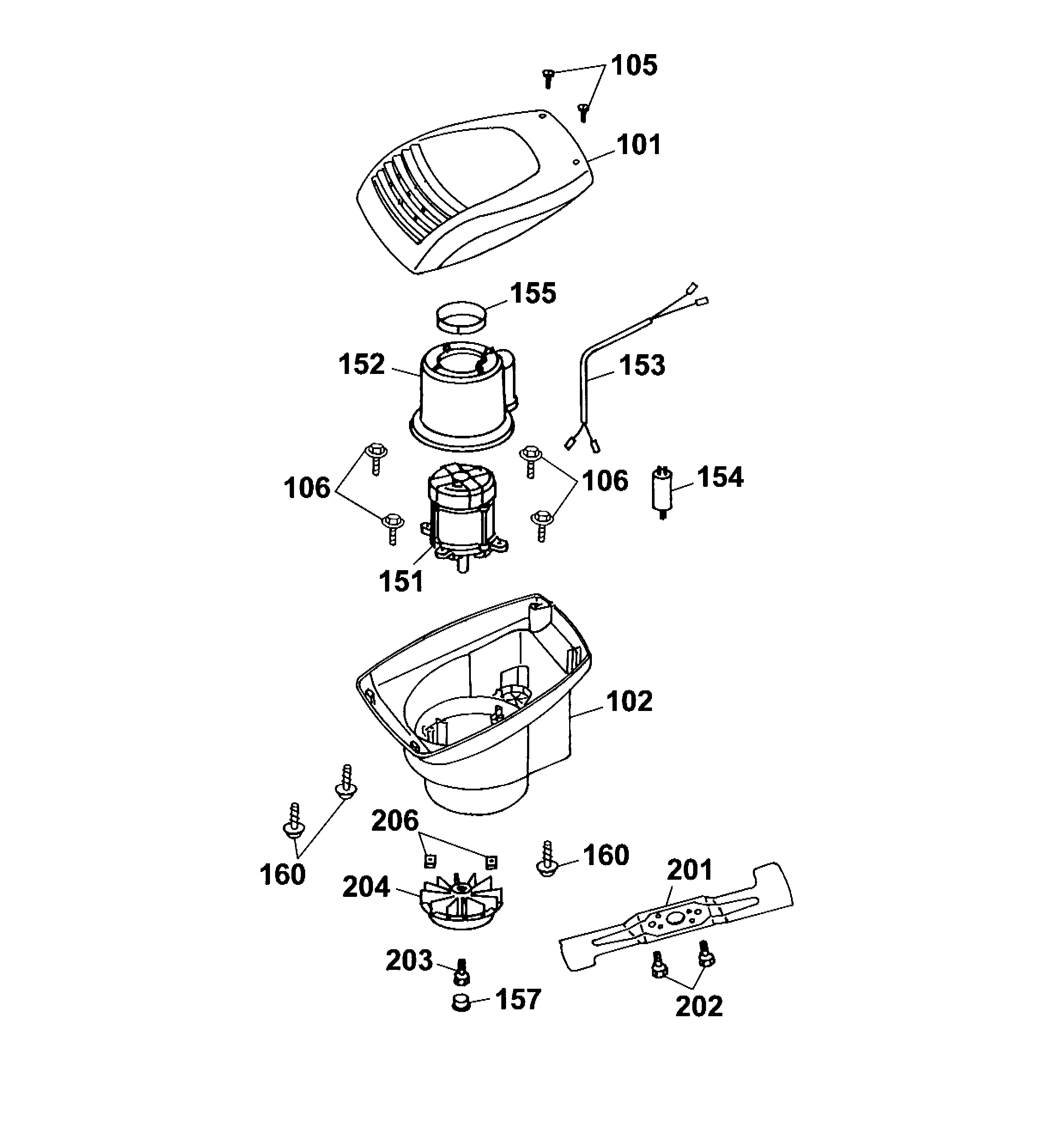

Lista de repuestos para Wolf Mowers Covering cap, Motor, Blade




Lista de repuestos


pos.descripciónNúmero de pieza
101Upper Part4620 301
102Lower Part4620 300
105Screw0012 625
106Screw0012 886
151Motor1140 065
151Motor Series B Only1141 075
152Air-Conduction4961 306
153Wire Connector3567 214
154Condenser, 20 µF1133 040
155Ring4317 305
155Ring4020 305
157Insert-Grip4317 308
160Screw0012 641
201Blade4001 095
202Screw0010 385
203Screw0010 403
204Fan Complete4317 016
206Nut0016 409
