Concept
>
Concept 43 B
>
Chassis, add-on pieces

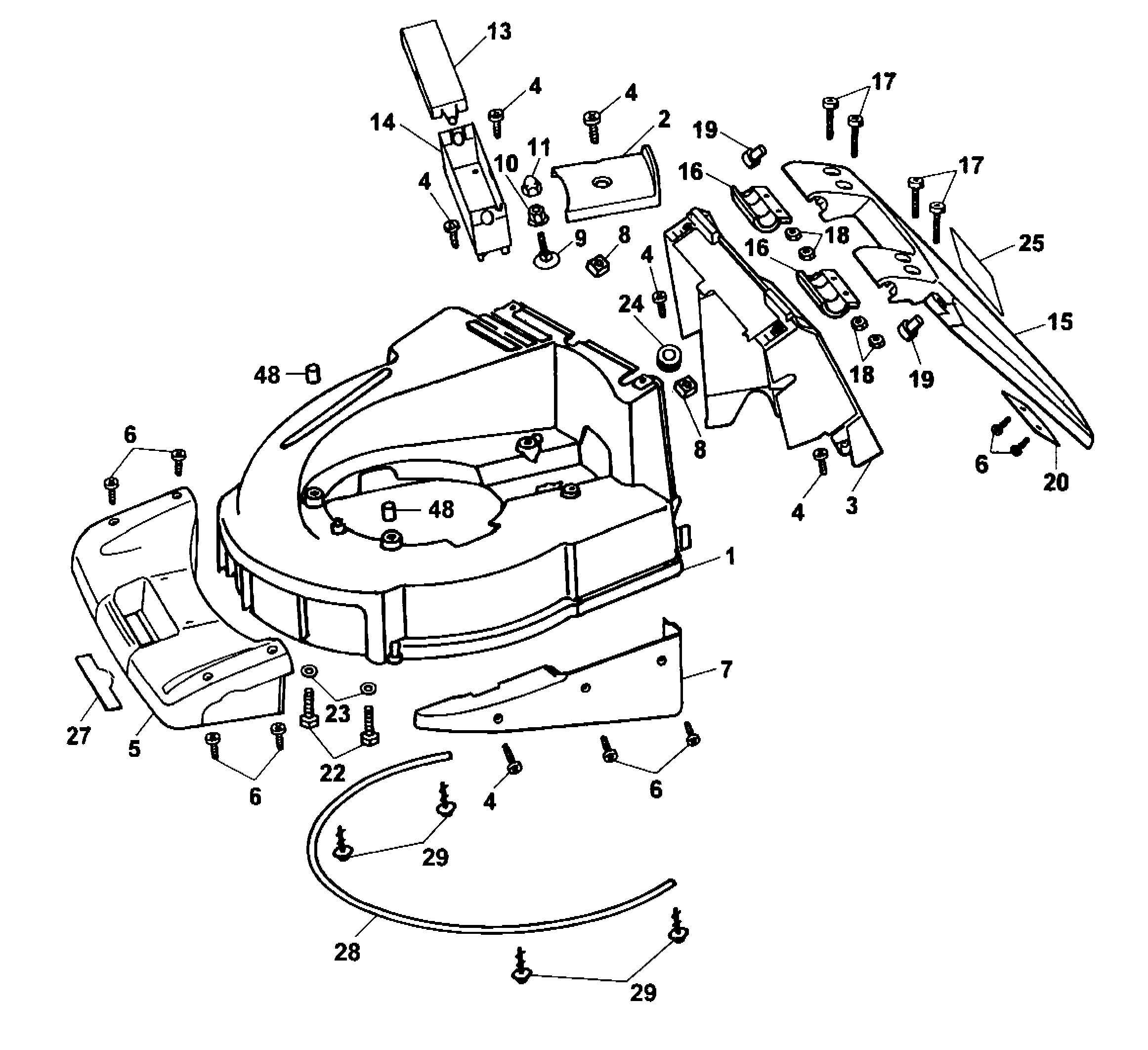

Lista de repuestos para Wolf Mowers Chassis, add-on pieces
pos.
descripción
Número de pieza
1
Chassis
4350 320
2
V-Belt Cover
6450 307
3
Deflector
6450 340
4
Screw M 5X20
0012 607
5
Front Panel
6450 302
6
Screw 5X12
0012 605
7
Cover, Left
6450 304
8
Square Nut
0016 405
9
Screw
0013 650
10
Nut
0016 385
11
Sleeve M 8
6340 126
13
Battery Upper Case
6460 311
14
Battery Lower Case
6460 310
15
Rear Flap
6450 911
16
Clamp-Casing
6450 311
17
Screw M5X40
0012 825
18
Hex. Nut M 5
0016 210
19
Rubber Buffer
6450 316
20
Counterweight
6450 149
22
Hex Screw M8X30 Din 933 8.8
0010 399
23
Washer
0017 291
24
Rubber Funnel
6450 314
25
Safety Label
0051 224
27
Wolf-Garten - Label
0051 115
28
Stabilizer
4342 100
29
Screw K60X16
0012 636
48
Locking Collar
4342 102
