Lista de repuestos para Wolf Mowers list of parts

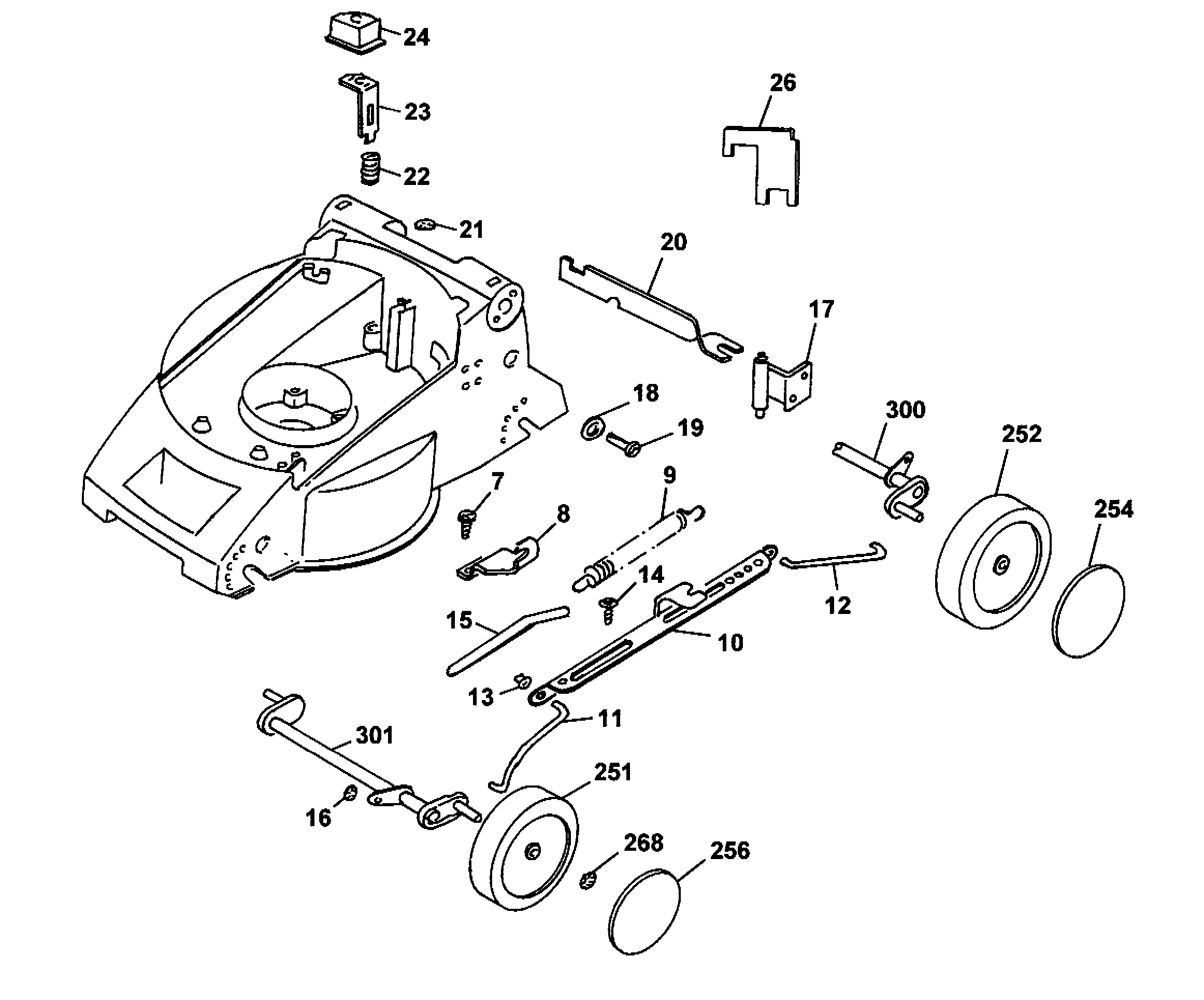

Lista de repuestos 1
Lista de repuestos 2


Lista de repuestos


pos.descripciónNúmero de pieza
8Supporting Angle4936 222
9Spring4936 218
10Rod4936 014
11Front Rod4936 225
12Rear Rod4936 224
13Retainer D83575 503
***Connecting Rod Compl.4936 015
14Screw0012 898
15Height-Position Indicator4936 503
16Speedfix Retainer0020 694
17Guiding4936 025
18Flat Washer 5.3 Din 9021 B0017 287
19Screw0012 864
20Arm-Rocker4936 508
21Speedfix Retainer0020 699
22Spring4740 207
23Lever4936 509
24Button4936 307
26Cover4936 312
51Rear Flap4906 306
***Bearing Shield1105 100
***Upper Bearing Shield1140 110
***Brake Spring1142 157
***Brake1145 158
251Wheel4916 500
252Wheel 170 Mm Dia.4916 501
254Cover ø 170 mm4936 535
256Cover4936 525
268Speedfix Retainer0020 698
300Axle Rear4936 013
301Axle Front4936 012
***Instruction Manual0054 057
Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis4936 340
2Cover4936 311
4Reinforcing Insert4936 112
5Screw0012 899
7Screw0012 625
27Wolf-Garten - Label0051 115
52Spring4936 217
53Pivot Pin4932 208
54Safety Label0051 225
101Chassis Cover4906 302
102Motor Covering4936 305
107Clamp-Casing4557 208
151Motor1141 000
152Air-Conduction4932 307
153Wire Connector3567 214
154Condenser 12Uf1117 040
155Screw0012 952
156Insert-Grip4936 308
201Blade4936 090
202Hex. Screw M6X160010 366
203Screw0010 680
204Fan Complete4936 026
351Lower Handlebar4906 112
352Handwheel4950 010
353Nut0016 409
354Adjusting Ring4950 126
362Connecting Screw4901 101
363Hollow Disk0017 275
364Wingnut0016 717
365Cable Clamp4950 307
401Upper Handlebar4906 020
402Switch-Key4961 051
402Switch Switzerland Only4961 053
403Screw0012 883
418Strain Relief Switzerland Only4901 325
500Grass Box4936 066
501Blanking Plug4906 315
