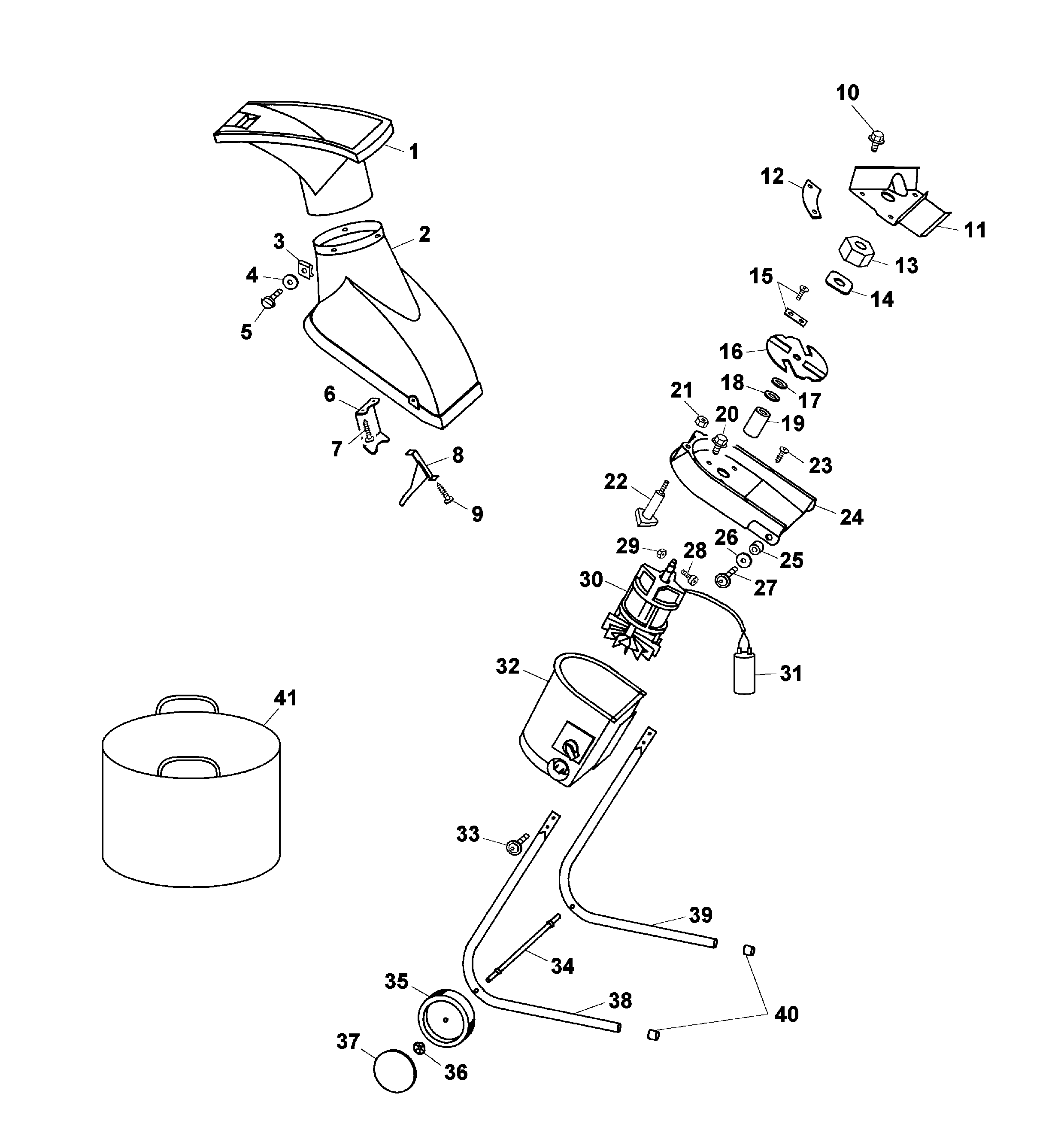

Lista de repuestos para Wolf Shredders Shredder SD 240 E




Lista de repuestos


pos.descripciónNúmero de pieza
1Feed Hopper7500 300
2Upper Part Fire-Red Ral 30007505 301
3Clips-Nut-Holder M57500 107
4Washer A5,3 Din 125-St0017 122
5Throw-Away Screw7503 117
6Fastening Plate7505 011
7Screw Ejot-Pt7503 114
8Release7505 010
9Screw Ejot-Pt7503 114
10Self-Locking Screw M8X127500 104
11Counter Blade7505 042
12Cover Plate7505 101
13Hexagon Nut M207500 100
14Distance Plate7500 115
15Blade Set Sm-A7700 070
16Blade Support Compl.7500 040
17V-Ring V-28S7500 102
18Shim Ring 20X28X17500 101
19Spacing Tube7500 116
20Self-Locking Screw M8X127500 104
21Hex. Nut0016 312
22Adjusting Screw7505 108
23Flat Head Bolt7500 103
24Housing Base Plate7505 111
25Bush7505 502
26Washer0017 289
27Oval Head Screw7505 109
28Cheese Head Screw M5X200011 312
29Hex. Nut0016 310
***A.C. Motor7501 060
30A.C. Motor 2,4 Kw7502 060
***Condenser7500 130
31Condenser7502 130
***Motor Covering Cap7501 301
32Motor Covering Cap7502 301
33Oval Head Screw7500 108
34Axle7507 110
35Wheel 200 Mm Dia.7502 500
36Linch Pin7507 103
37Hub Cap7502 501
38Leg7505 113
39R/H Leg Ssd2400E7505 112
40Cover7507 303
41Canvas Bag (Shredder)7503 308
