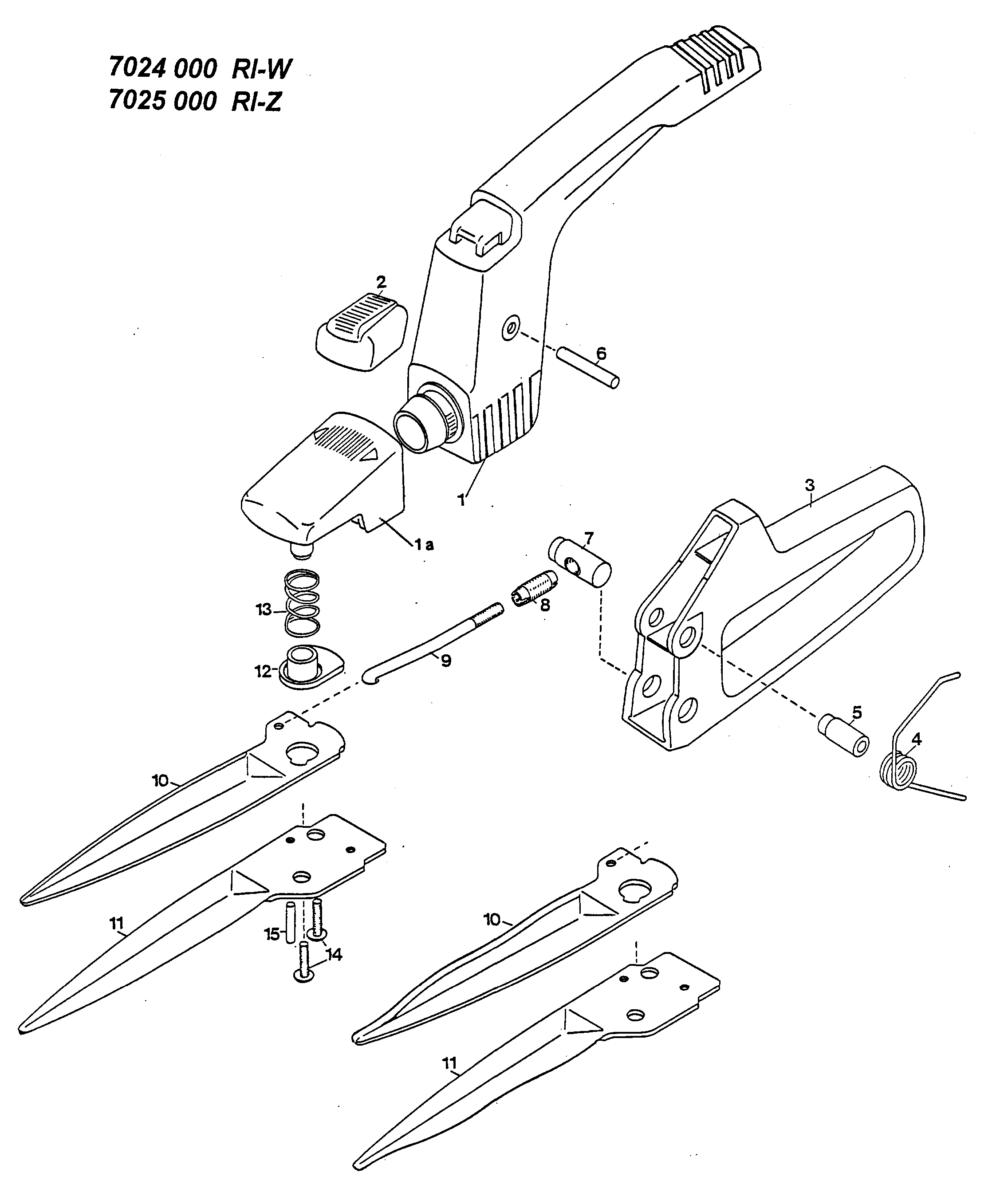

Lista de repuestos para Wolf Grass-shears RI-W

pos.	descripción	Número de pieza
1	Upper Grip Ri-W	7024 100
1	Upper Handle	7025 100
1a	Knob-Air Cleaner	7024 103
2	Push Button	7024 102
3	Lower Grip Yellow	7028 101
4	Spring	7028 205
5	Bush For Link	7028 204
6	Grooved Pin	0018 652
7	Bolt	7028 202
8	Shell	7028 203
9	Connecting Rod, Middle	7028 104
10	Upper Blade Coated	7024 412
10	Upper Blade Zinced	7028 400
11	Lower Blade Coated	7024 413
11	Lower blade	7028 402
12	Sliding Bushing	7028 200
13	Compression Spring	7028 201
14	Screw	0012 882
15	Grooved Pin	0018 613
