> Mowers > Petrol > Drive from 43 cm on > series 2 > 2.48 XC, Good-Line > Q 48 Fixspeed > Piston, Crankshaft, Valves, Sump bases

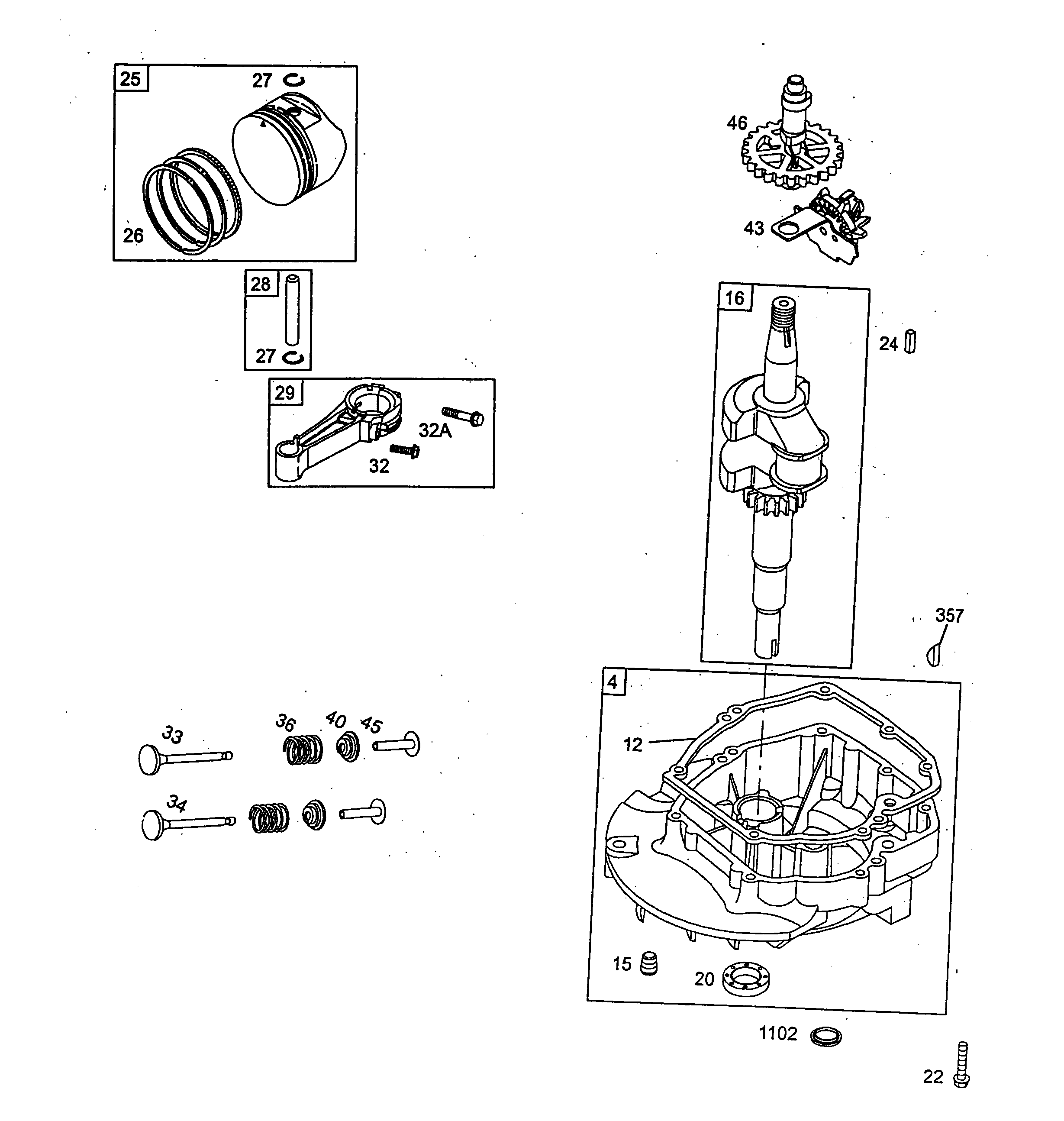

Lista de repuestos para Wolf Mowers Piston, Crankshaft, Valves, Sump bases




Lista de repuestos


pos.descripciónNúmero de pieza
4Sump Base2058 202
12Seal2069 333
15Oil Drain Plug2069 415
16Crankshaft2056 187
20Seal - Oil Pto Side2063 112
22Screw2069 406
24Flywheel Pin2057 130
25Piston2069 032
26Piston Ring Set2069 031
27Lock-Piston Pin2069 421
28Piston Pin2057 195
29Rod-Connecting2057 196
32Screw2059 115
32AScrew2059 114
33Exhaust Valve2063 201
34Intake Valve2063 202
36Valve-Spring2063 220
40Retainer - Valve2069 425
43Regulator2069 433
45Valve Lifter2069 402
46Camshaft2069 172
357Key-Crankshaft2069 135
