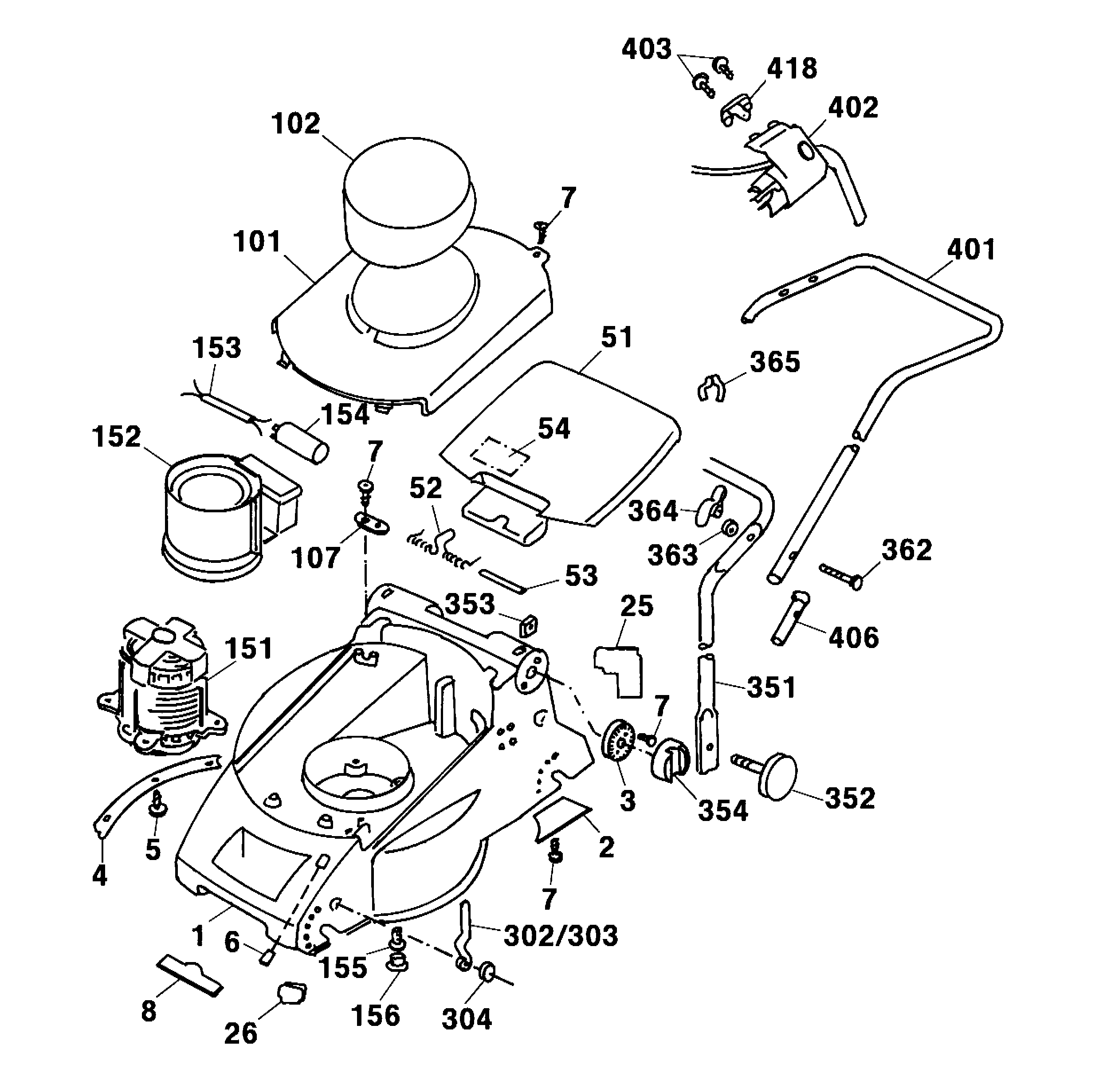

Lista de repuestos para Wolf Mowers Olympia Eplus

pos.	descripción	Número de pieza
1	Chassis	4936 340
2	Cover	4936 311
3	Ring	4936 125
4	Reinforcing Insert	4936 112
5	Screw	0012 899
6	Blanking Plug	4916 315
7	Screw	0012 625
8	Wolf-Garten - Label	0051 115
25	Cover	4906 312
26	Cover	4906 313
51	Rear Flap	4906 306
52	Spring	4936 217
53	Pivot Pin	4932 208
54	Safety Label	0051 225
101	Chassis Cover	4906 302
102	Motor Covering	4936 305
107	Clamp-Casing	4557 208
151	Motor	1141 000
***	Bearing Shield	1105 100
***	Upper Bearing Shield	1140 110
***	Brake Spring	1142 157
***	Brake	1142 158
152	Air-Conduction	4932 307
153	Wire Connector	3567 214
154	Condenser 12Uf	1117 040
155	Screw	0012 952
156	Insert-Grip	4936 308
302	Height Indicator, Front	4916 504
303	Height Indicator	4916 505
304	Retainer For Height Indicator	4932 511
351	Lower Handlebar	4906 111
352	Handwheel	4950 010
353	Nut	0016 409
354	Adjusting Ring	4950 126
362	Screw	0013 525
363	Hollow Disk	0017 275
364	Wingnut	0016 717
366	Cable Clamp	4950 307
401	Upper Handlebar	4912 023
402	Switch-Key	4906 055
403	Screw	0012 883
406	Closing Cap	6360 125
418	Strain Relief Switzerland Only	4901 325
***	Instruction Manual	0054 151
***	Poly Bag With Operator Instruct.	4906 025
