> Mowers > Electro > Without drive from 40 cm on > Compact Plus > Compact plus Power Edition 40 E > Motor, Blade

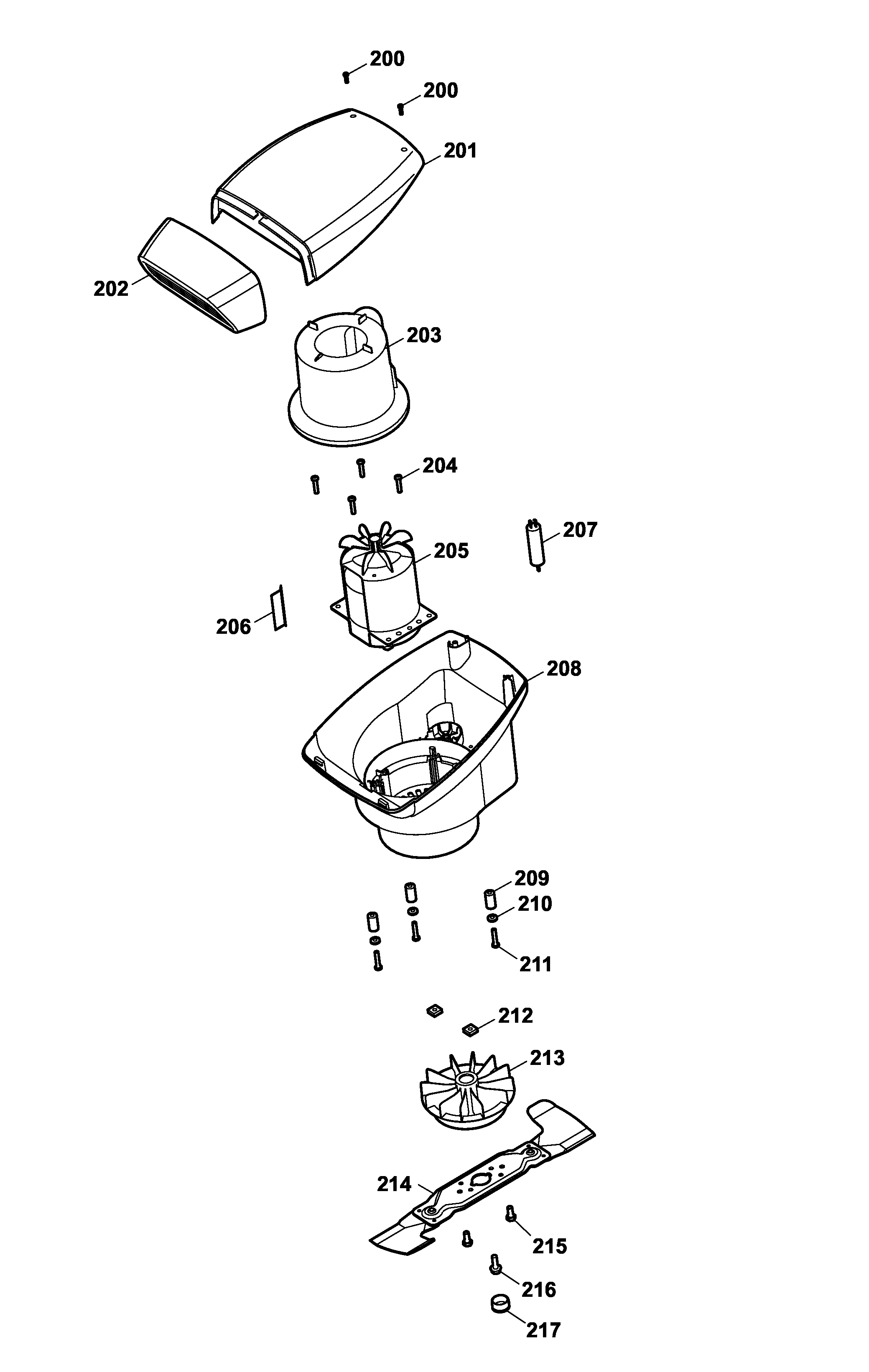

Lista de repuestos para Wolf Mowers Motor, Blade




Lista de repuestos


pos.descripciónNúmero de pieza
200Screw0012 625
201Upper Part4317 301
202Front Part4317 302
203Air Conduction4961 326
204Screw0012 642
205Motor1142 081
206Foil1142 300
207Condenser1133 030
208Lower Part4620 300
209Spacer4620 312
210Washer0017 110
211Screw0012 644
212Nut0016 409
213Aerator4317 026
214Cutter Bar4001 405
214Cutter Bar Compl.4001 094
***Replacement blades VI-W (1 pair)4350 040
215Screw0010 385
216Hex. Screw M 8X120010 384
216Screw0010 403
217Insert-Grip4317 308
