volver a
>
Mowers
>
Electro
>
Without drive up to 38 cm
>
series 2
>
2.32 E
>
Motor, Blade

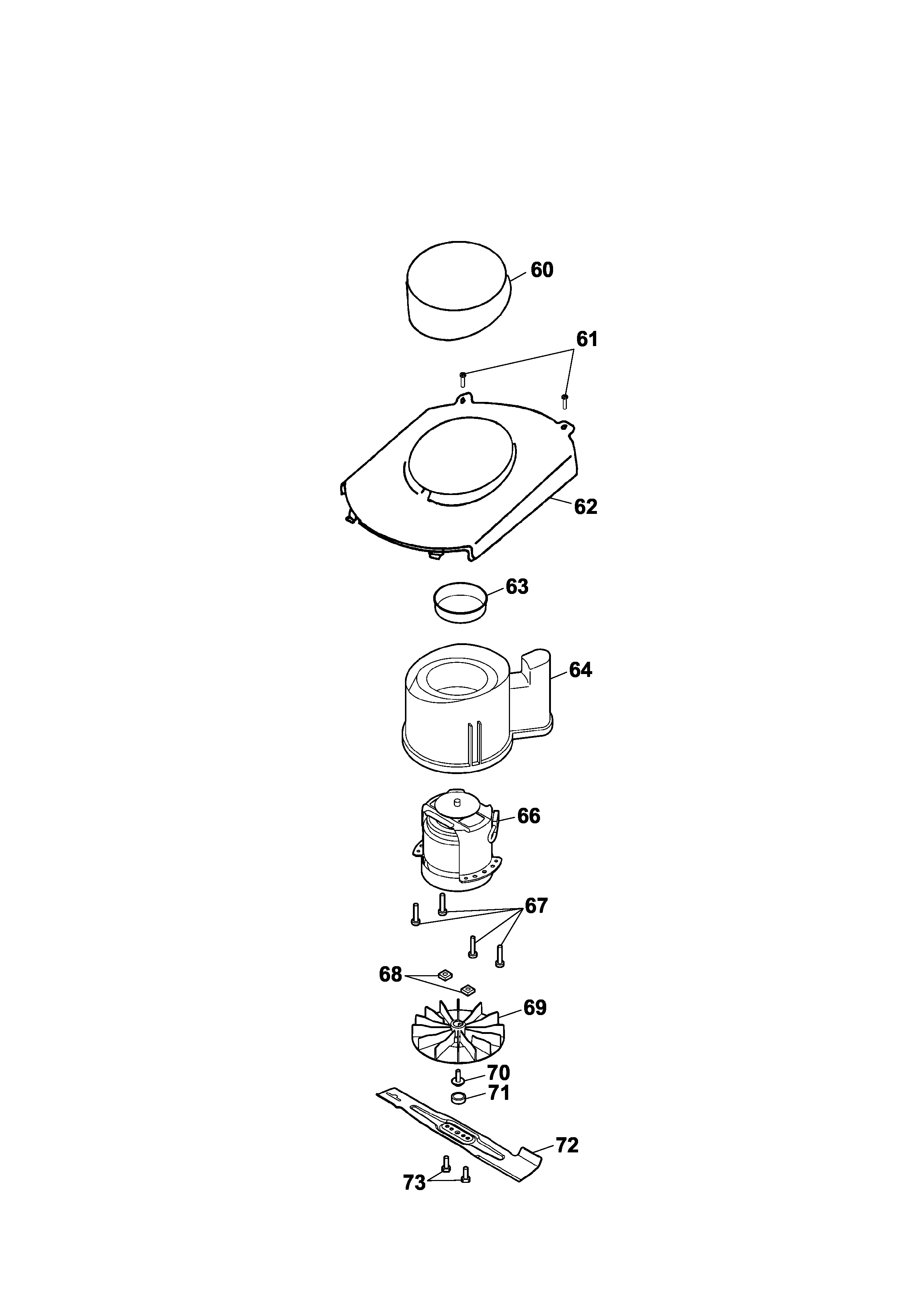

Lista de repuestos para Wolf Mowers Motor, Blade
pos.
descripción
Número de pieza
60
Motor Covering
4936 305
61
Screw
0012 625
62
Chassis Cover
4912 302
64
Air-Conduction
4932 308
66
Motor
1104 060
67
Screw
0012 610
68
Square Nut
0016 405
69
Fan Complete
4936 027
70
Screw
0010 680
71
Insert-Grip
4936 308
72
Blade
4932 090
73
Hex. Screw M6X16
0010 366
