> Grass-Trimmers > OT > OT 845 > Motor, Add-on pieces

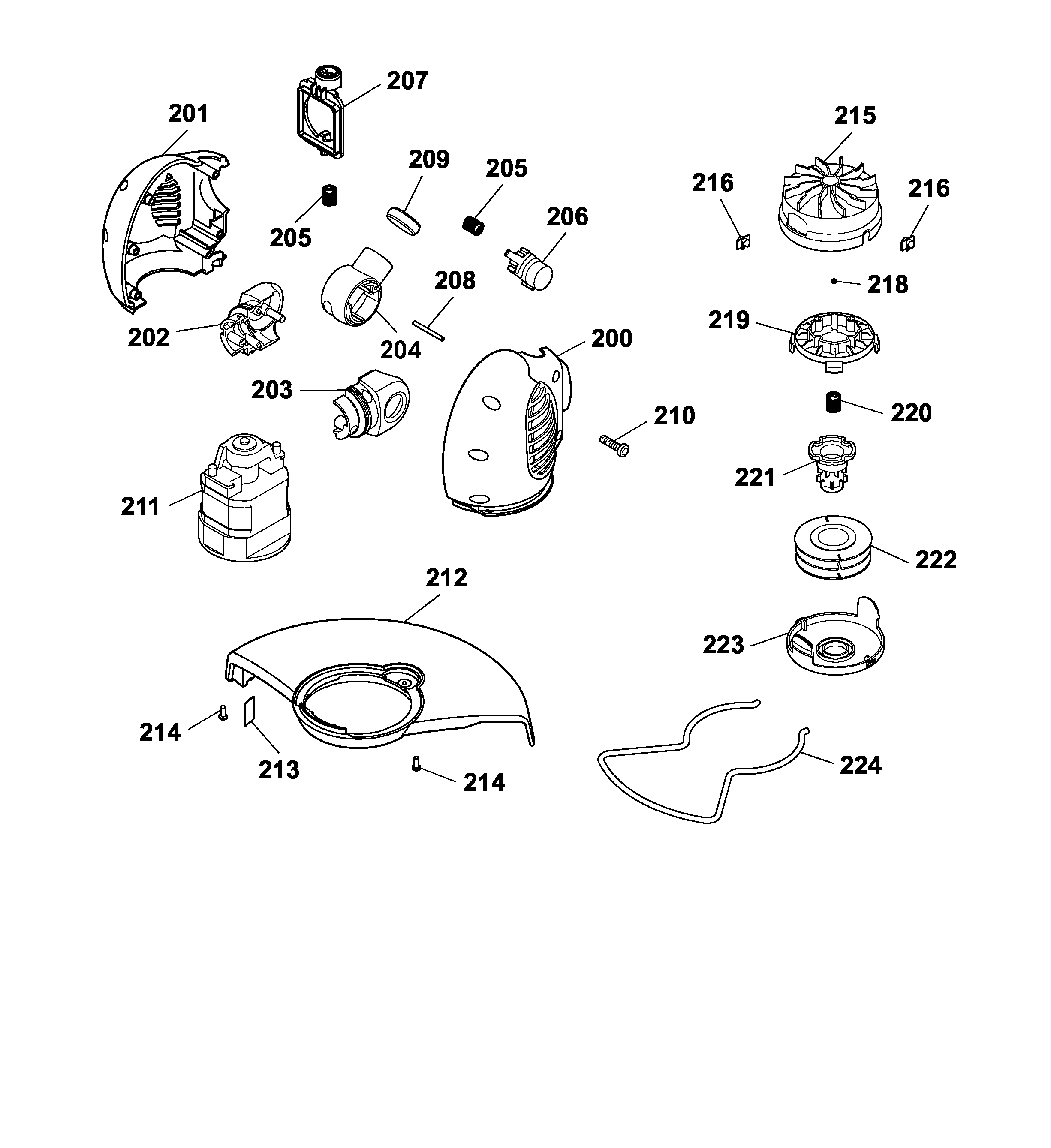

Lista de repuestos para Wolf Grass-Trimmers Motor, Add-on pieces




Lista de repuestos


pos.descripciónNúmero de pieza
200Motor Case, Left F7136 033
201Motor Case, Right F7136 034
202Joint Right (F)7136 345
203Joint Left (F)7136 346
204Flexible Disk F7136 348
205Compression Spring4143 207
206Hinge Foot7136 307
207Stop Button7136 310
208Dowel Pin 3,5X360018 815
209Damping Element7136 324
210Screw0012 625
211Motor1129 005
212Guard7136 020
213Spool Line Cutter7136 100
214Screw0012 626
215Spool Housing7136 335
216Spool Line Protection7136 106
218Ball0026 502
219Ball Guide7120 502
220Spring4191 206
221Bush7122 316
222Gt-F8 Nylon Spool Line7136 085
223Cap7136 331
224Plant Protection Hanger7136 102
***Instruction Manual0054 429
