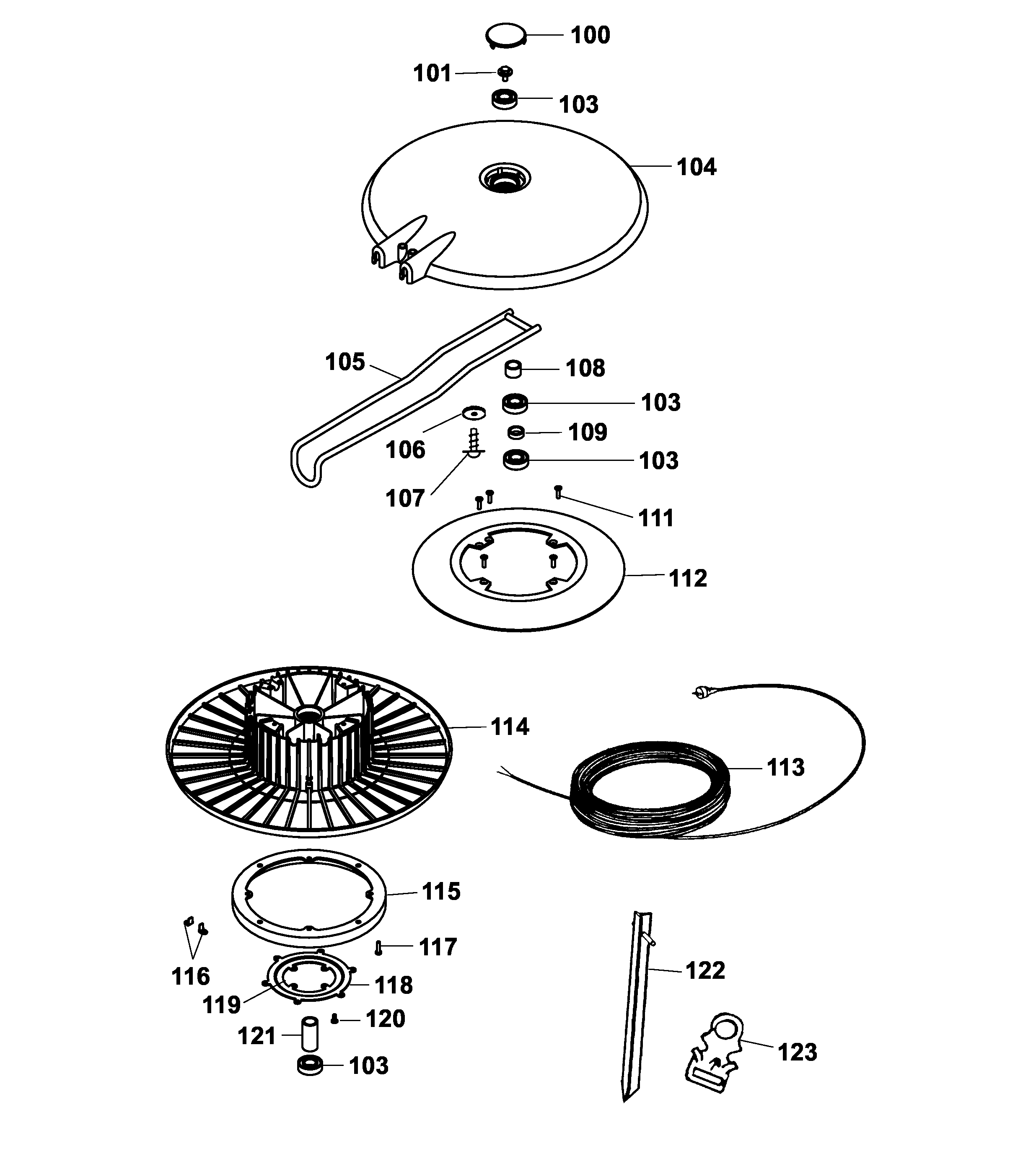

Lista de repuestos para Wolf Mowers Kabelfix assembly 1




Lista de repuestos


pos.descripciónNúmero de pieza
100Cover4026 319
101Screw0010 892
103Bearing0023 095
104Upper Part4026 317
105Extension Arm4026 102
106Washer0017 272
107Screw0012 625
108Distance Bush4026 119
109Distance Bush4026 117
111Screw0012 628
112Retainer-E Ring4026 315
113Cable4026 360
***Ch4026 013
***Coupler Plug Switzerland Only4026 113
114Cable Drum4026 314
115Gear-Timing4026 326
116Flat Plug4026 309
117Screw0012 625
118Slip Ring Big4026 105
119Slip Ring Small4026 104
120Screw0012 625
121Distance Bush4026 116
122Earth Rod4026 011
123Cable Guide4936 323
***Upper Part Complete4026 065
***Cable Drum Complete4026 060
