> Mowers > Electro > Without drive from 40 cm on > series 4 > 4.40 E > Height-adjustment, Wheels

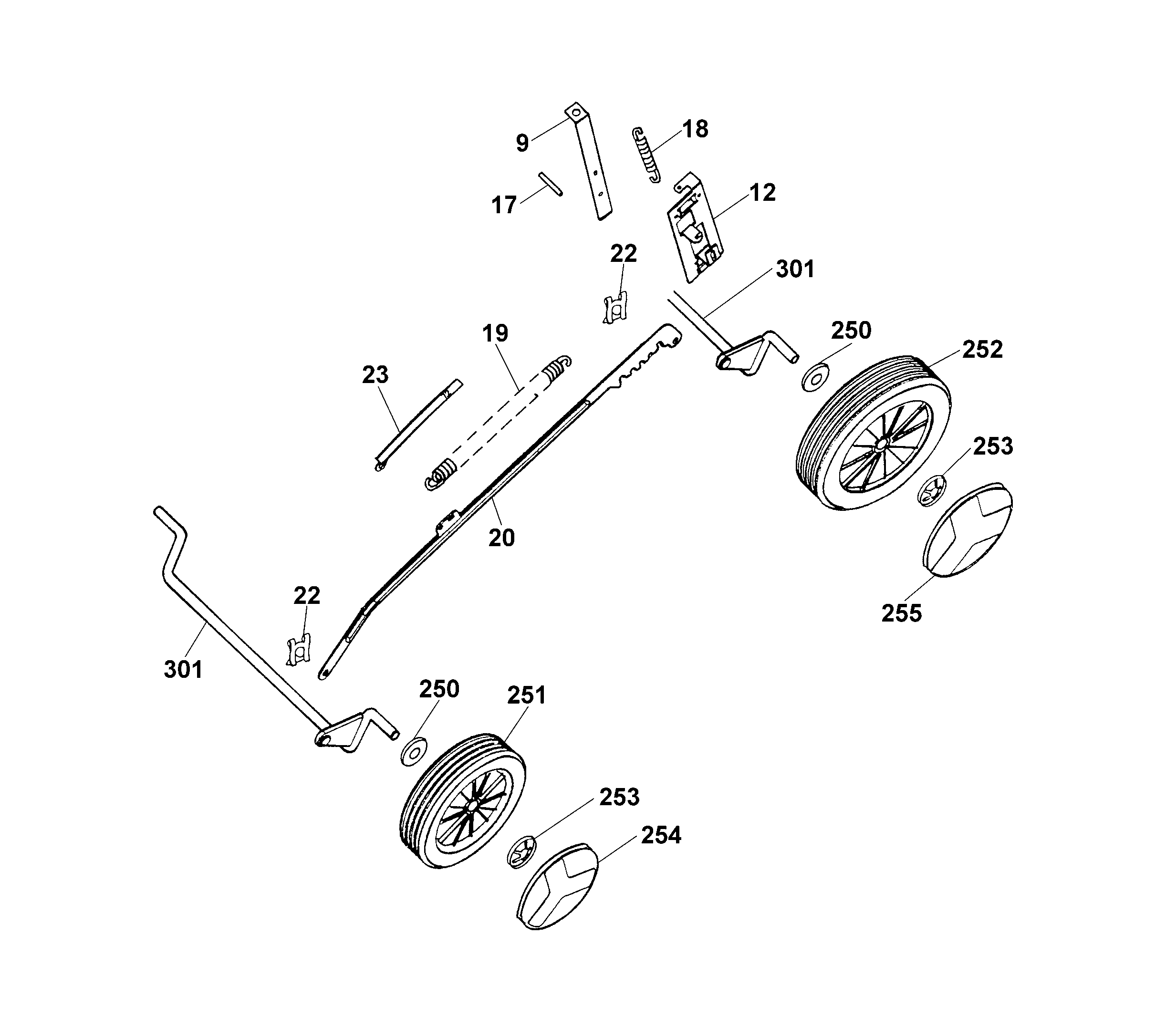

Lista de repuestos para Wolf Mowers Height-adjustment, Wheels




Lista de repuestos


pos.descripciónNúmero de pieza
9Plate (Zmv)4961 512
12Guiding4001 010
17Dowel Pin0018 878
18Tension Spring4961 514
19Tension spring connecting rod4961 107
20Rod4001 504
22Retaining Clip0020 981
23Height-Position Indicator4961 307
250Washer0017 112
251Wheel ø 170 mm6440 050
252Wheel ø 200 mm6440 051
253Speedfix Retainer0020 700
254Cover ø 170 mm6450 520
255Cover ø 200 mm6450 530
301Axle4961 011
***Poly Bag With Operator Instruct.4958 025
***Instruction Manual0054 172
