> Mowers > Electro > Without drive up to 38 cm > series 2 > 2.38 E > Height-adjustment, Wheels

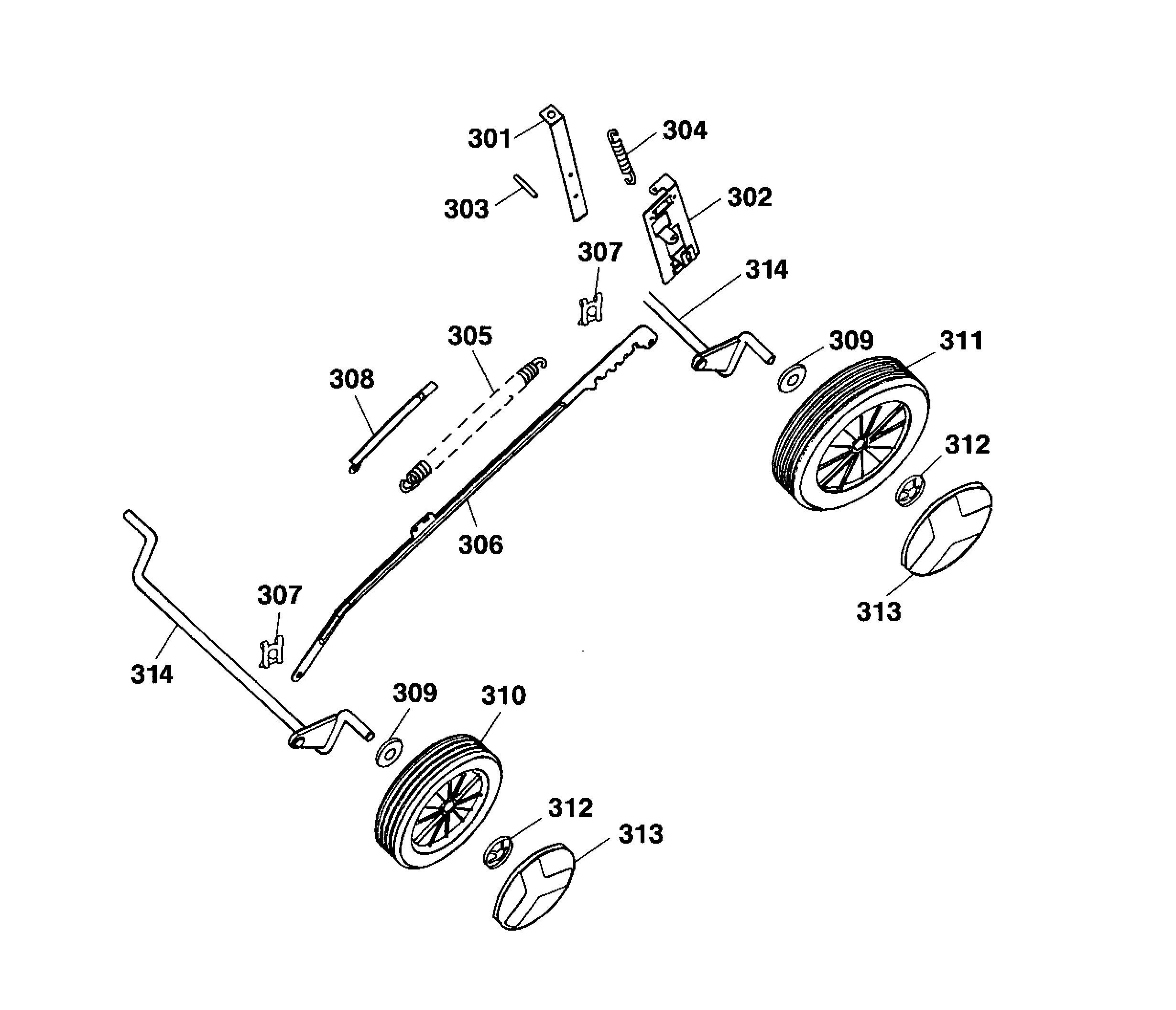

Lista de repuestos para Wolf Mowers Height-adjustment, Wheels




Lista de repuestos


pos.descripciónNúmero de pieza
301Plate (Zmv)4961 512
302Guiding4001 010
303Dowel Pin0018 878
304Tension Spring4961 514
305Tension spring connecting rod4961 107
306Rod4001 504
307Retaining Clip0020 981
308Height-Position Indicator4961 307
309Washer0017 112
310Wheel4961 048
311Wheel 200 Mm Dia.4960 059
312Speedfix Retainer0020 700
313Cover ø 170 mm4936 535
314Axle4961 011
