> Mowers > Electro > Without drive from 40 cm on > series 4 > 4.46 E > Handlebar

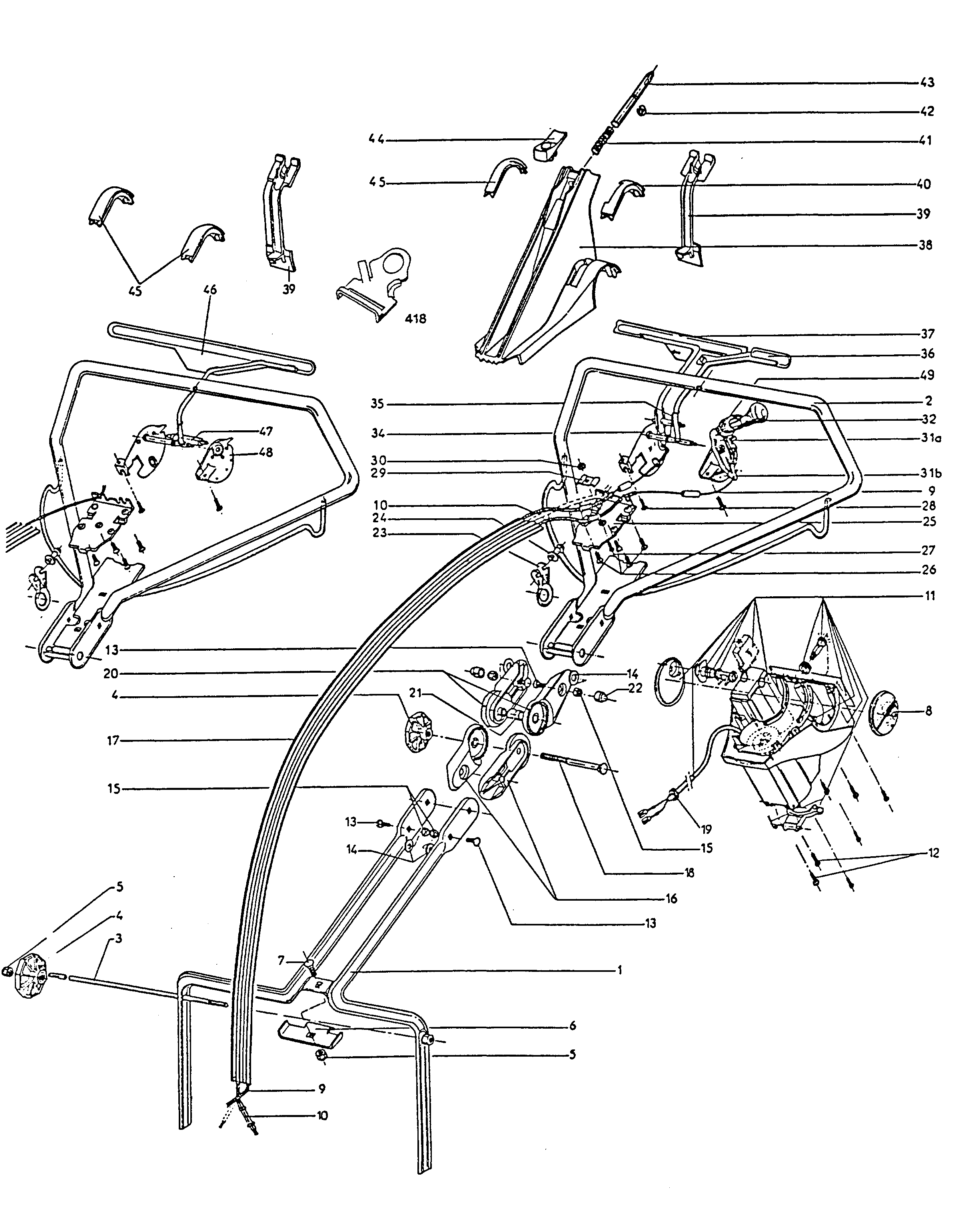

Lista de repuestos para Wolf Mowers Handlebar

Lista de repuestos

pos.	descripción	Número de pieza
1	Handlebar	6905 011
2	Upper Handlebar	6901 100
3	Connecting Bar	6905 101
4	Handwheel	6905 102
5	Nut	6948 300
6	Clamp	6905 103
7	Screw	0013 665
8	Cover	6912 110
9	Cable	6901 101
10	Bowden Wire	6901 102
11	Terminal	6901 300
12	Screw	6912 127
13	Screw	6948 110
14	Washer	0017 121
15	Nut	0016 311
16	Bracket6.51Ba	6905 107
17	bend protection	6912 105
18	Screw	6905 110
19	Rubber Funnel	6901 301
20	Bracket6.51Ba	6905 112
21	Ring	6901 302
22	Cap	6905 211
23	Hook	4224 207
24	Roll	4224 206
25	Plate-Carburetor	6912 107
26	Screw	6912 126
27	Screw	0012 955
28	Screw	6948 119
29	Fixing Plate	6901 303
30	Nut	6948 312
31a	Lever	6948 127
31b	Star Wheel	6925 112
32	Button	6925 101
34	Cover Right	6901 304
35	Spring	6901 110
36	Bracket Bracket	6901 103
37	Bracket Bracket	6923 100
38	Upper Casing6.46Ba	6912 112
39	Cover	6912 117
40	Cover	6912 113
41	Spring	6912 115
42	Retainer-E Ring	6912 128
43	Locking Bar	6912 116
44	Button	6912 114
45	Cover	6905 111
46	Bracket Bracket	6901 104
47	Axle	6901 305
48	Cover Left	6901 306
49	Collar	6930 114
418	Cable Guide	6901 323
