volver a
>
Mowers
>
Petrol
>
Drive from 43 cm on
>
series 6
>
6.46 BA
>
Handlebar parts

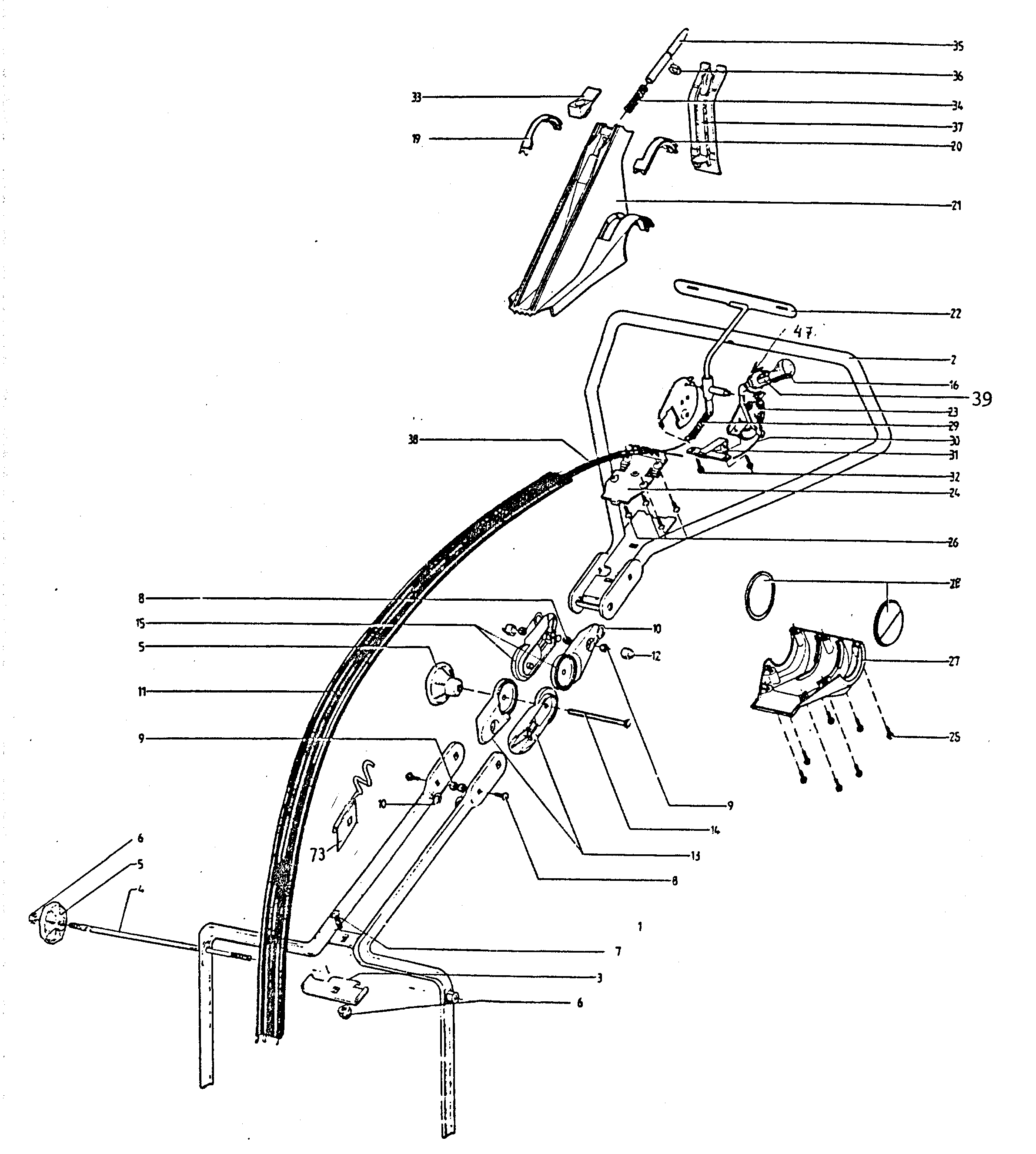

Lista de repuestos para Wolf Mowers Handlebar parts
pos.
descripción
Número de pieza
1
Handlebar
6905 011
2
Upper Handlebar
6912 012
3
Clamp
6905 103
4
Connecting Bar
6905 101
5
Handwheel
6905 102
6
Hex. Nut
0016 312
7
Screw
0013 650
8
Screw
0013 639
9
Nut
0016 311
10
Washer
0017 121
11
bend protection
6912 105
12
Cap
6905 211
13
Bracket6.51Ba
6905 107
14
Screw
6905 110
15
Bracket6.51Ba
6905 112
19
Cover
6925 111
20
Cover
6912 113
21
Upper Casing6.46Ba
6912 112
22
Bracket Bracket
6912 104
23
Star Wheel
6925 112
24
Plate-Carburetor
6912 107
25
Screw
0012 888
26
Screw
0012 897
27
Handle Insulator
6912 111
28
Cover
6912 110
29
Rod
6912 103
30
Cable (Vario)
6925 109
31
Connector
6912 106
32
Screw
0012 897
33
Button
6912 114
34
Spring
6912 115
35
Locking Bar
6912 116
36
Lock Washer
0022 412
37
Cover
6912 117
38
Cable (Drive)
6925 103
39
Lever
6925 113
47
Collar
6930 114
73
Guide-Rope
6925 114
