> Mowers > Electro > Without drive from 40 cm on > series 2 > 2.40 E > Handlebar compl.

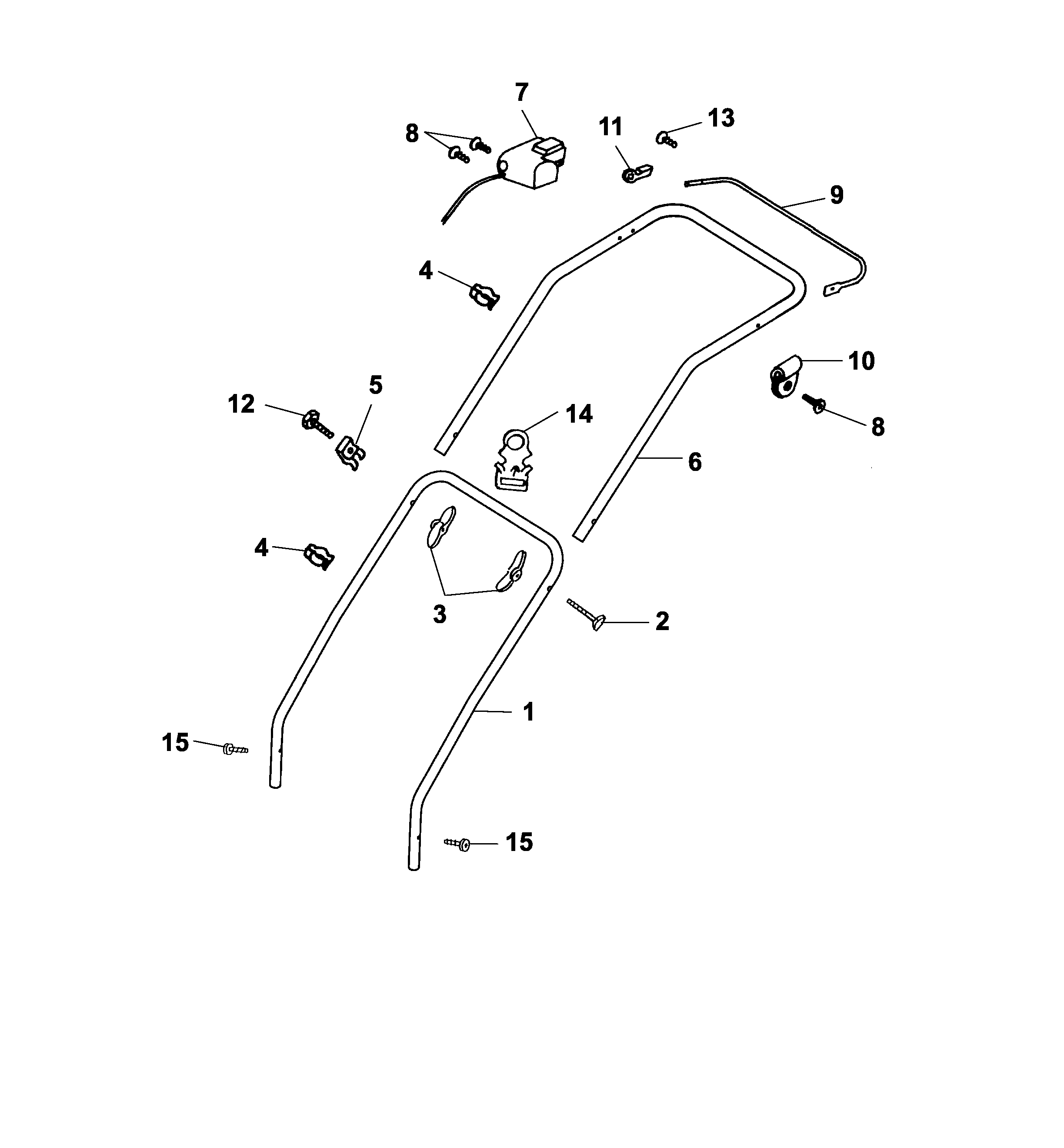

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
1Lower Handlebar3632 112
2Connecting Screw4901 101
3Wingnut0016 717
4Cable Clamp4950 307
5bend protection4950 308
6Upper Handlebar4961 027
7Switch-Key4020 050
8Screw0012 883
9Bracket Bracket4317 014
10Clamp-Casing4935 105
11Bushing4940 105
12Screw0010 338
13Screw0015 820
14Cable Guide4936 323
15Screw0015 660
***Instruction Manual0054 422
