> Mowers > Petrol > Drive from 43 cm on > Others > Exclusiv 46 BA > Handlebar compl.

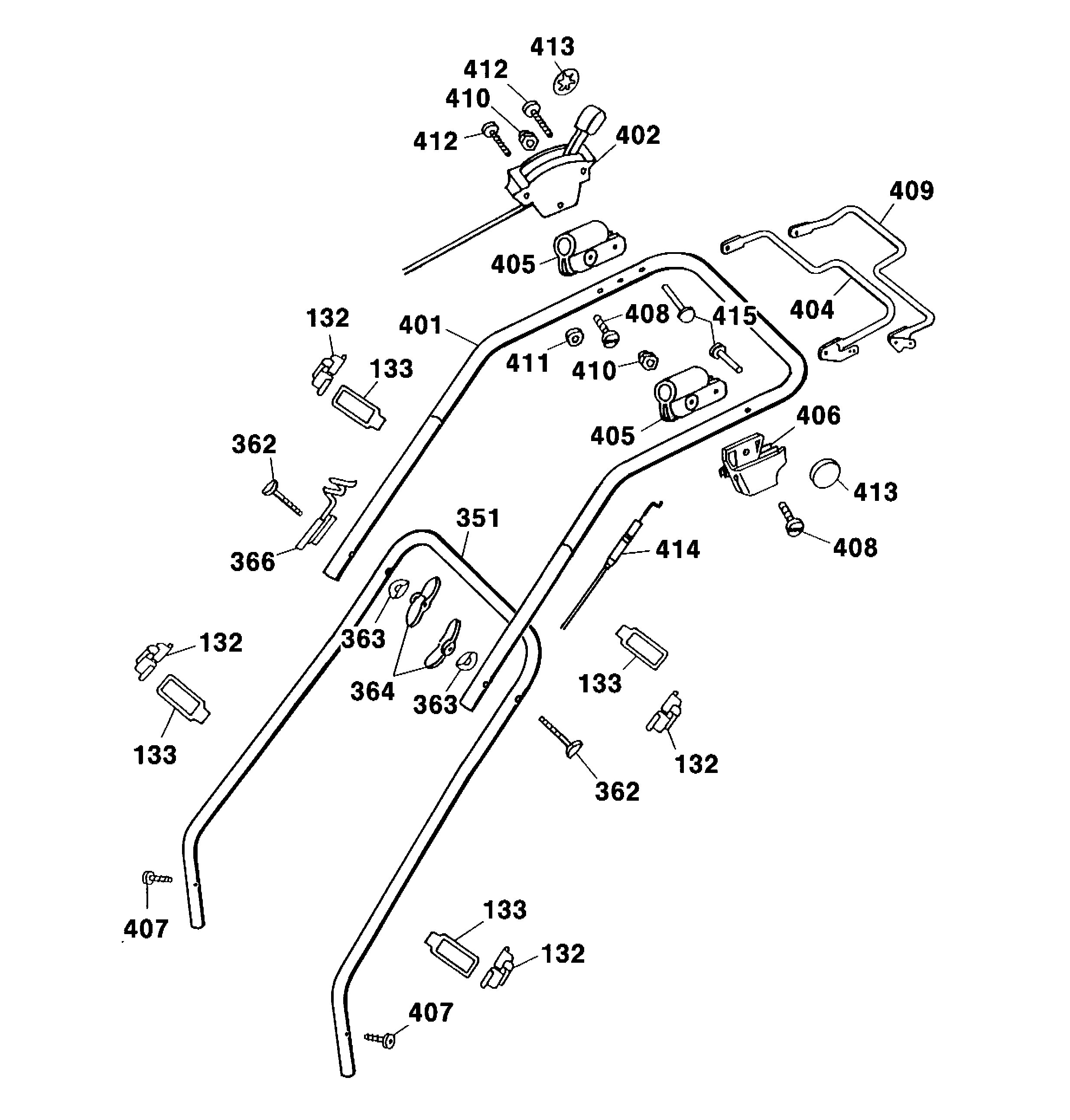

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4601 120
362Connecting Screw4901 101
363Hollow Disk0017 275
364Wingnut0016 717
366Guide-Rope6340 014
401Upper Handlebar4001 021
402Case With Bowden Wire, Gas4605 055
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
407Screw0015 660
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Coupler4005 055
415Bolt0018 107
***Instruction Manual0054 195
***Bag With Accessories4042 026
