> Mowers > Petrol > Drive from 43 cm on > Esprit > Esprit 46 TMA > Handlebar compl.

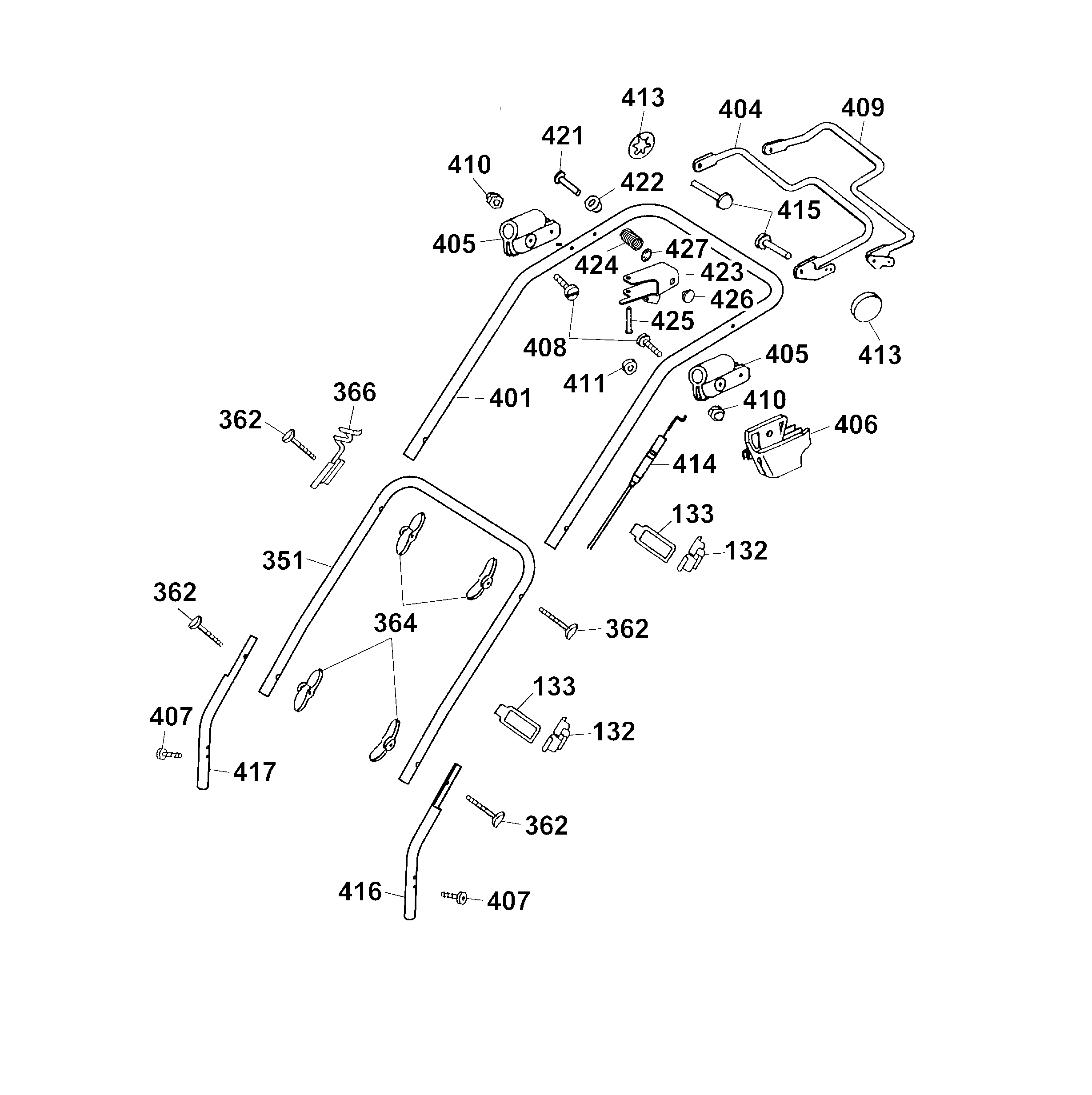

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4601 122
362Connecting Screw4901 101
364Wingnut0016 717
366Guide-Rope6340 014
401Upper Handlebar4004 021
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
407Screw0015 660
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
413Clip3585 503
414Bowden Wire Coupler4005 055
415Bolt0018 107
416Pipe, Left4001 125
417Pipe, Right4001 127
421Bolt0018 109
422Axle Cap7082 503
423Lever4004 014
424Compression Spring4143 207
425Bolt0018 108
426Knob4004 305
427Speedfix Retainer0020 696
***Instruction Manual0054 316
