> Mowers > Petrol > Drive from 43 cm on > Power Edition > Power Edition 46 HA > Handlebar compl.

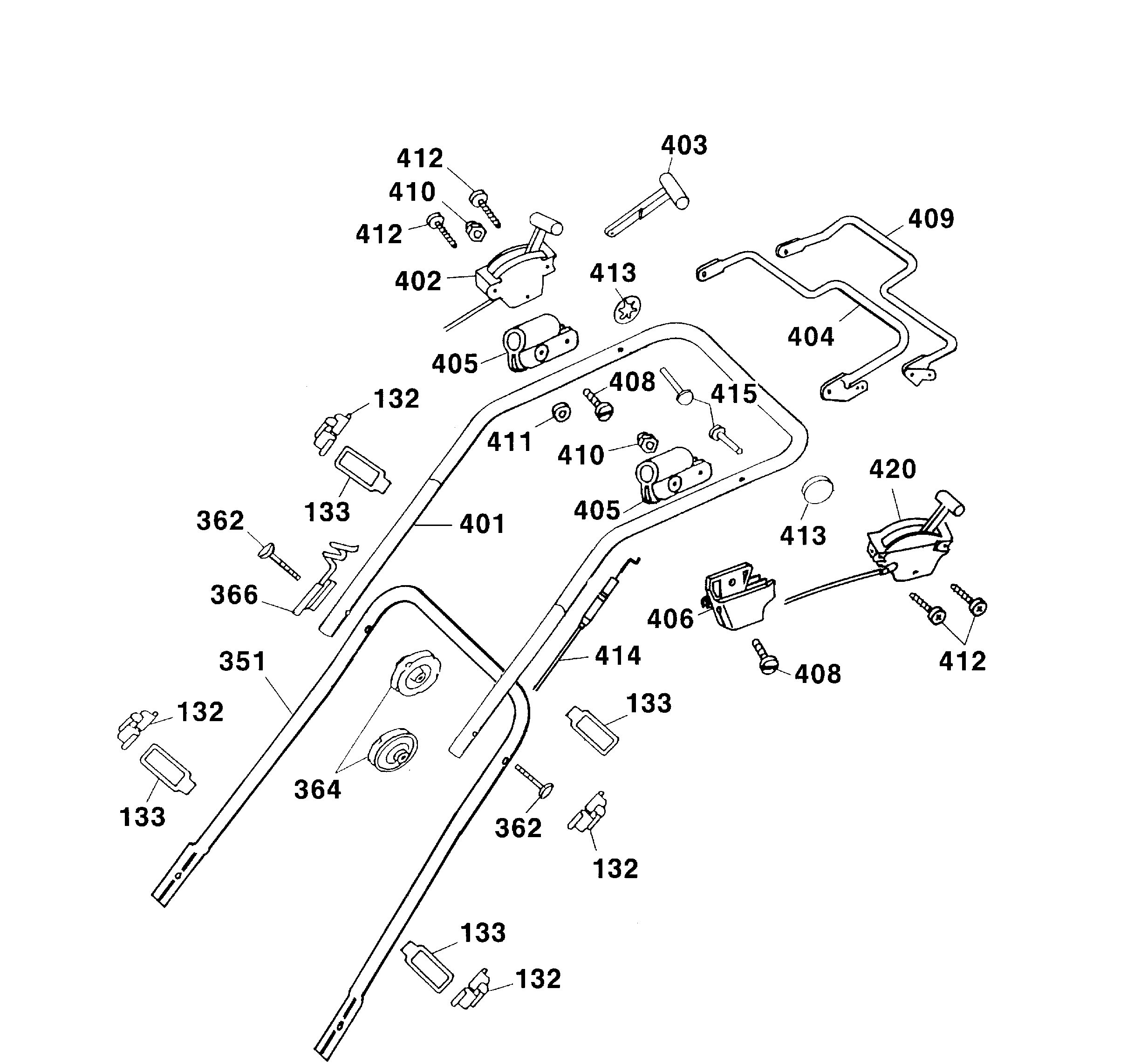

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4628 122
362Connecting Screw4901 101
364Handwheel4936 022
366Guide-Rope6340 014
401Upper Handlebar6320 023
402Case With Bowden Wire, Gas4615 057
***Case, Right6450 325
***Case left6450 326
403Gear Lever4011 040
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Driving4015 055
415Bolt0018 107
420Case Compl. With Bowden Wire, 2-Gear4015 061
***Instruction Manual0054 263
