> Mowers > Petrol > Drive from 43 cm on > Premio > Premio 46 BAi > Handlebar compl.

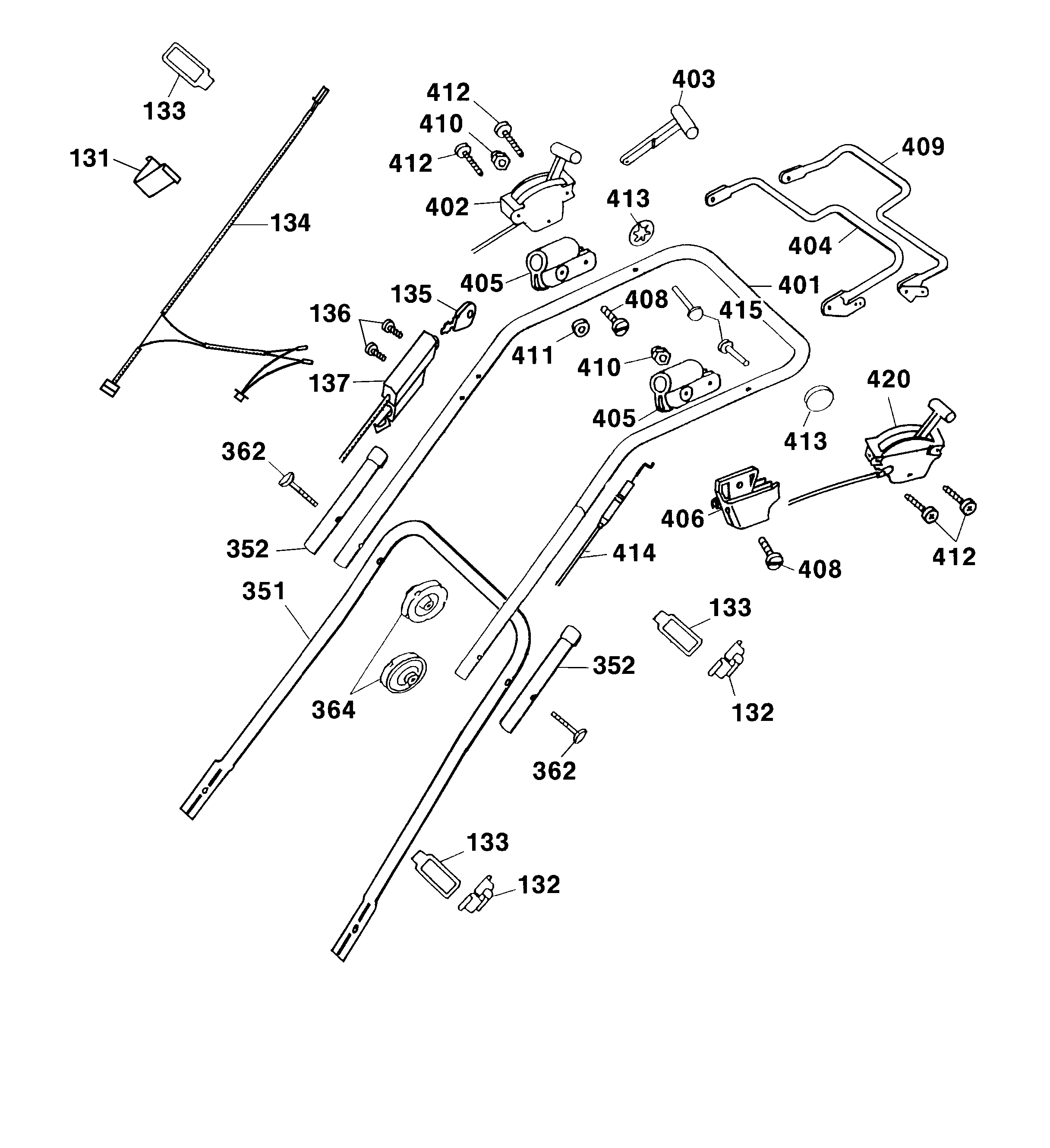

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
131Clamp-Casing6330 310
132Clip6340 312
133Strap6340 314
134Cable Form4617 054
***Adaper B&S Triple Pole2069 058
135Key6330 101
136Screw0012 625
137Starter Case Compl.4617 030
351Lower Handlebar4628 122
352Closing Cap6340 125
362Connecting Screw4901 101
364Handwheel4936 022
401Upper Handlebar4617 020
402Case With Bowden Wire, Gas4611 055
403Gear Lever4011 040
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Driving4015 055
415Bolt0018 107
420Case Compl. With Bowden Wire, 2-Gear4015 061
***Instruction Manual0054 377
